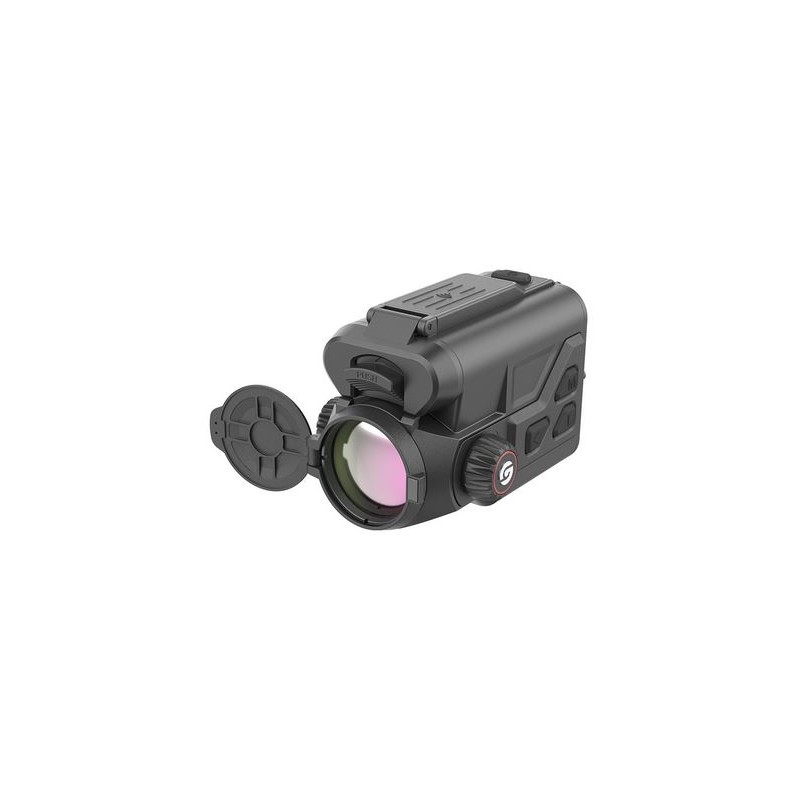

Guide TB630 Clip-on Thermal Imaging Attachment

The TB Series: Precision Meets Portability

Designed to offer both precision and portability, the TB Series features a magnesium alloy housing that reduces weight by over 20% compared to similar products, enhancing both ease of use and accuracy. More compact than previous models, it’s an ideal choice for relaxed hunting. The Full-HD 1920x1080 AMOLED display delivers a wider viewing angle and richer color for an immersive experience.

Key Features

• Encapsulation: IP68 for durability in challenging environments
• Display Resolution: 1920x1080 for vivid, high-quality visuals
• High Sensitivity: NETD <20mK for precise temperature detection
• Battery Life: Up to 12 hours for extended use

12μm High-Sensitivity Infrared Detector

With a highly sensitive IR detector (NETD of 20mK), the TB Series distinguishes even minimal temperature differences, providing clear and sharp imaging.

1920x1080 AMOLED Display

A high-definition 1920x1080 AMOLED screen in the eyepiece delivers vibrant colors and excellent image quality, enhancing the overall comfort of observation.

Lightweight, Compact Design

The magnesium alloy body shell is lightweight, compact, and easy to carry, making installation and transportation hassle-free.

Blind-Mountable Universal Battery System

Standard 18650 batteries are used, equipped with a safety circuit. When replacing, align one positive and one negative pole, eliminating the need for detailed orientation and reducing setup time.

12-Hour Battery Life

Ideal for long adventures, the TB Series provides a lightweight design with energy-efficient performance for continuous use.

IP68 Protection Against Weather and Shock

Built to withstand harsh conditions, the TB Series is IP68-rated for waterproofing and is shock-resistant up to 1000G/ms, ensuring reliable operation in demanding environments.

What’s Included
Device, battery charger, two 18650 batteries, 5V2A adapter (for US, UK, Australia, and Europe), USB Type-C cable, quick start guide, and warranty card.

Technical Specifications

• Model: TB630

Sensor

• Type: Uncooled VOx Infrared Detector, 8 to 14μm
• Resolution: 640×512@12μm
• NETD: <20mK
• Frame Rate: 50Hz

Lens

• Objective Lens: 35mm, F1.0
• Field of View: 12.5°×10.0°
• Field of View at 100m: 22m x 17m
• Magnification: 1x
• Detection Range: 1800m / 1950 yards

Display

• Type: 0.39'' AMOLED 1920×1080
• Color Palettes: White Hot, Black Hot, Red Hot, Green Hot, Iron Red, Blue Hot, Sepia
• Eyepiece: Eye relief 20mm; Zoom 9.5x

Hardware

• Wi-Fi: 2.4G, 5G
• Interface: USB Type-C (Power supply/USB2.0)
• Additional Features: Microphone, Bluetooth

System

• Recording: Photo and video with audio recording
• Memory: 64GB internal storage

Power

• Battery Type: Two replaceable 18650 batteries
• Operating Time: Up to 10 hours

Environmental Protection

• Operating Temperature: -20°C to 50°C (-4°F to +122°F)
• Shock Resistance: 1000G at 1ms (IEC60068-2-27 standard)
• Encapsulation: IP68

Physical Dimensions and Weight

• Weight: 440 grams / 15.52 ounces
• Size: 128×79×79 mm (5.04×3.11×3.11 inches)
