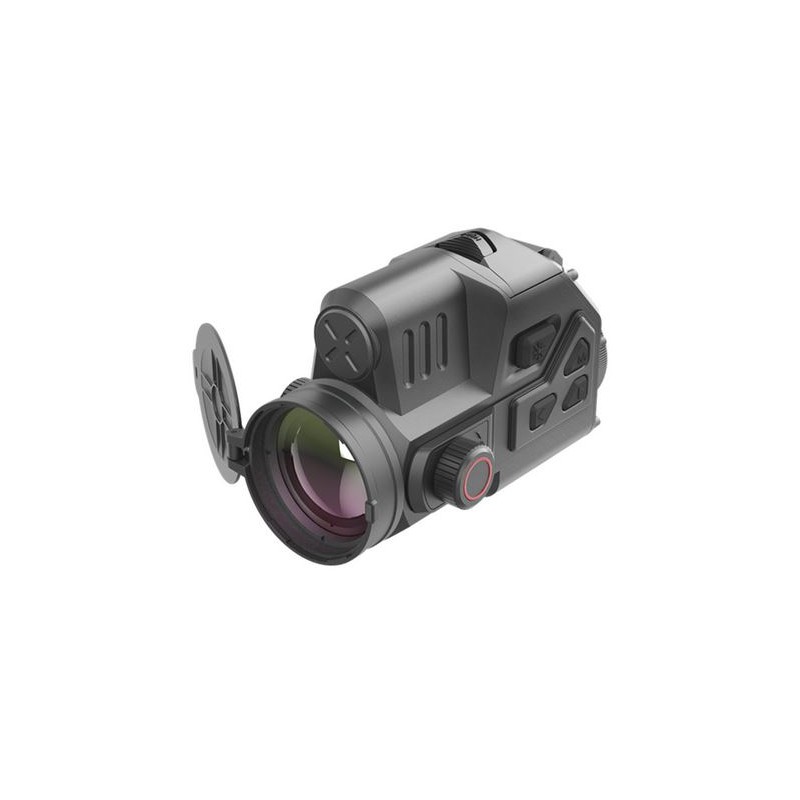

Guide TB650P Thermal Imaging Attachment

The TB Pro Series: Precision Meets Portability

With the TB Pro Series, precision and portability come together seamlessly. Its magnesium alloy housing not only increases precision but also reduces weight, making it over 20% lighter than similar products. Compact and efficient, this model’s Full-HD AMOLED display offers a wider viewing angle and richer color, making it the ideal companion for relaxed hunting and outdoor adventures.

Key Specifications

• NETD: 20mK for high sensitivity
• Display: 1920×1080 AMOLED for vivid, sharp visuals
• Detection Range: Up to 2600m for long-distance targeting
• Encapsulation: IP68 for dustproof and waterproof protection

Advanced 12μm Infrared Detector

Equipped with a high-sensitivity 12μm infrared detector with a NETD of 20mK, the TB Pro Series detects even the slightest temperature changes, ensuring a sharper, more detailed image.

50mm Focal Length

The 50mm focal length lens provides greater observation distance and enhanced image detail, outperforming typical 25mm or 35mm lenses for more extensive outdoor observation.

Extended 2600m Detection Range

The TB Pro Series can detect targets up to 2600m away, allowing users to observe distant objects with ease, ideal for hunting or surveillance in wide-open spaces.

Rugged IP68 Protection

Designed to endure the elements, the IP68 dustproof and waterproof rating, along with 1000G/ms shock resistance, ensures reliability in rain, fog, or mist, supporting outdoor, hunting, or rescue tasks even in challenging conditions.

Full-HD 1920x1080 AMOLED Display

The high-definition 0.39" 1920x1080 AMOLED screen provides vibrant colors and excellent image quality, enhancing the comfort and clarity of observation.

Included in the Box
Device, battery charger, two 18650 batteries, 5V2A adapter (compatible with US, UK, Australia, and Europe), USB Type-C cable, quick start guide, and warranty card.

Technical Specifications

• Model: TB650P

Sensor

• Type: Uncooled VOx Infrared Detector, 8 to 14μm
• Resolution: 640×512@12μm
• NETD: 20mK
• Frame Rate: 50Hz

Lens

• Objective Lens: 50mm, F1.0
• Field of View: 8.8°×7.0°
• Field of View at 100m: 15m x 12m
• Magnification: 1x
• Detection Range: 2600m / 2800 yards

Display

• Type: 0.39'' AMOLED 1920×1080
• Color Palettes: White Hot, Black Hot, Red Hot, Green Hot, Iron Red, Blue Hot, Sepia
• Eyepiece: Eye relief 20mm; Zoom 6.8x

Hardware

• Wi-Fi: 2.4G, 5G
• Interface: USB Type-C (Power supply/USB2.0)
• Additional Features: Microphone, Bluetooth

System

• Recording: Supports photo and video with audio recording
• Memory: 64GB internal storage

Power

• Battery Type: Two replaceable 18650 batteries
• Operating Time: Up to 9 hours

Environmental Protection

• Operating Temperature: -20°C to 50°C (-4°F to +122°F)
• Shock Resistance: 1000G at 1ms (IEC60068-2-27 standard)
• Encapsulation: IP68

Physical Dimensions and Weight

• Weight: 582 grams / 20.53 ounces
• Size: 161×89×97 mm (6.34×3.50×3.82 inches)
