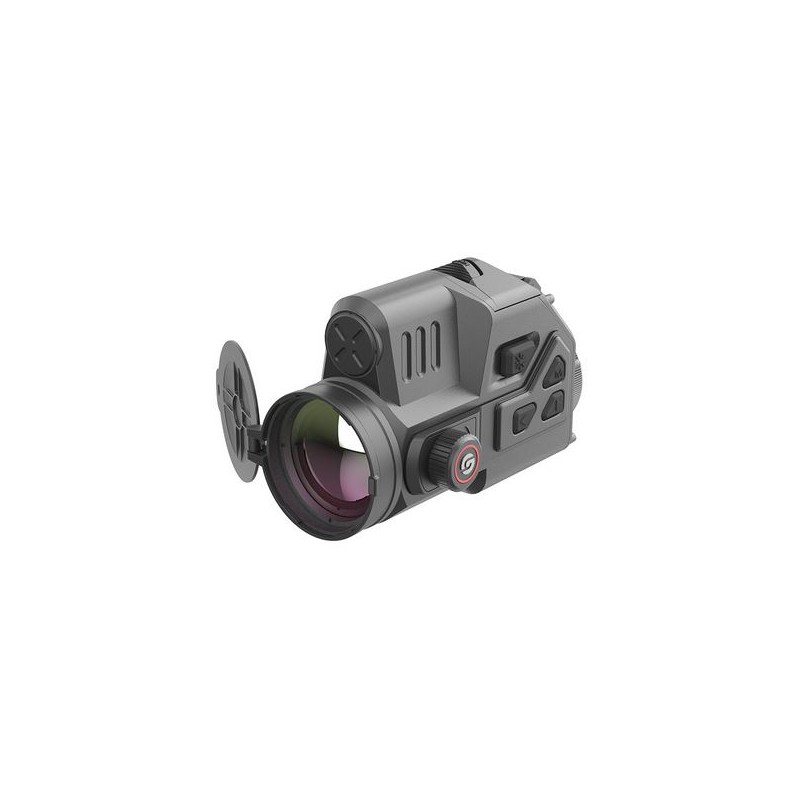

Guide TB630LP Thermal Imaging Attachment

The TB LRF Pro Series: Enhanced Precision and Portability

After a comprehensive hardware upgrade and software optimization, the TB LRF Pro Series now combines high precision with unmatched portability. Its lightweight design maintains professional performance, featuring a built-in laser rangefinder with an impressive reach of up to 1000 meters. Dual batteries provide extended operating time, while the Full-HD AMOLED display offers a vivid and detailed visual experience. The device also includes intelligent functions such as image tracking and automatic recording with every shot.

Key Features

• NETD: 20mK for exceptional temperature sensitivity
• Display: Full-HD 1920×1080 AMOLED for sharp, detailed visuals
• Laser Rangefinder: Accurate up to 1000m for long-range targeting
• Encapsulation: IP68 for dustproof and waterproof protection

High-Sensitivity 12μm Infrared Detector

The TB LRF Pro Series features a 12μm infrared detector with a NETD of 20mK, ensuring high sensitivity to subtle temperature changes, delivering crystal-clear images both day and night.

1000m Laser Rangefinder

With a built-in laser rangefinder reaching up to 1000m, users can detect and accurately locate targets with ease and precision.

Full-HD AMOLED Display

Equipped with a 0.39" 1920x1080 AMOLED screen, the TB LRF Pro Series displays vivid, high-quality images with rich details for enhanced observation.

Rugged IP68 Dustproof & Waterproof Design

The TB LRF Pro Series is compact, rugged, and built to endure harsh outdoor conditions, featuring IP68-rated dustproof and waterproof protection for reliable use in challenging environments.

In the Box
Device, battery charger, two 18650 batteries, 5V2A adapter (compatible with US, UK, Australia, and Europe), USB Type-C cable, quick start guide, and warranty card.

Technical Specifications

• Model: TB630LP

Sensor

• Type: Uncooled VOx Infrared Detector, 8 to 14μm
• Resolution: 640×512@12μm
• NETD: 20mK
• Frame Rate: 50Hz

Lens

• Objective Lens: 35mm, F1.0
• Field of View: 12.5°×10.0°
• Field of View at 100m: 22m x 17m
• Magnification: 1x
• Detection Range: 1800m / 1950 yards

Display

• Type: 0.39'' AMOLED 1920×1080
• Color Palettes: White Hot, Black Hot, Red Hot, Green Hot, Iron Red, Blue Hot, Sepia
• Eyepiece: Eye relief 20mm; Zoom 9.5x

Hardware

• Laser Rangefinder: 1000m / 1090 yards
• Wi-Fi: 2.4G, 5G
• Interface: USB Type-C (Power supply/USB2.0)
• Additional Features: Microphone, Bluetooth

System

• Recording: Supports photo and video with audio recording
• Memory: 64GB internal storage

Power

• Battery Type: Two replaceable 18650 batteries
• Operating Time: Up to 9 hours

Environmental Protection

• Operating Temperature: -20°C to 50°C (-4°F to +122°F)
• Shock Resistance: 1000G at 1ms (IEC60068-2-27 standard)
• Encapsulation: IP68

Physical Dimensions and Weight

• Weight: 561 grams / 19.79 ounces
• Size: 161×89×97 mm (6.34×3.50×3.82 inches)
