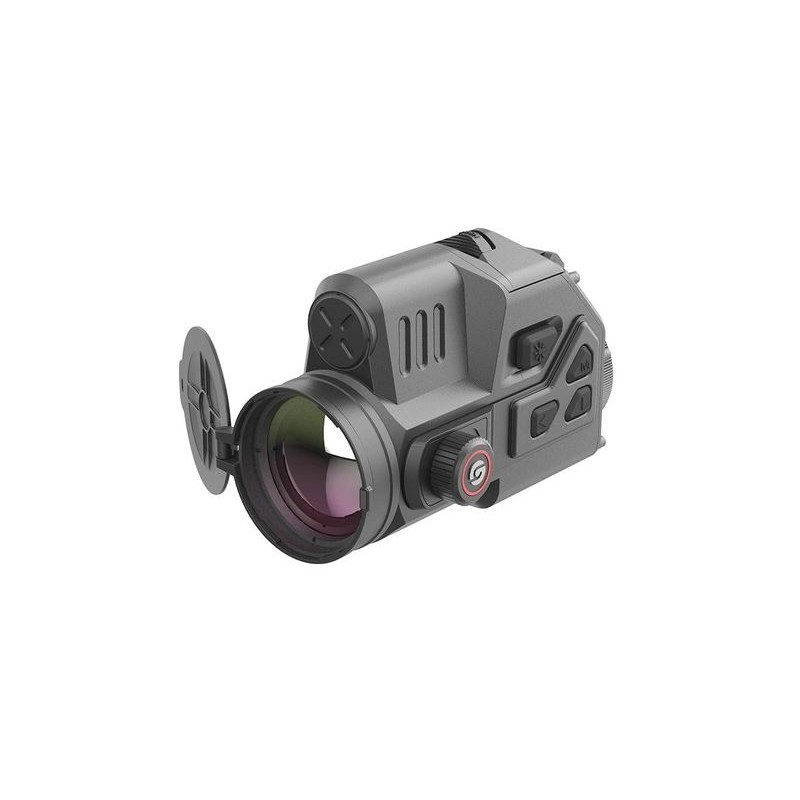

Guide TB1250LP Thermal Imaging Attachment

TB LRF Pro Series: Precision Meets Portability

After comprehensive hardware upgrades and software optimization, the TB LRF Pro Series offers an ideal balance of precision and portability. Despite its lightweight appearance, it delivers professional-grade features: a built-in laser rangefinder that reaches up to 1000 meters, dual batteries for extended operation, and a Full-HD AMOLED display for a rich, detailed visual experience. It also supports advanced features like image tracing and automatic recording after each shot.

Key Specifications

• Sensor: 1280×1024@12μm
• NETD: 18mK for exceptional thermal sensitivity
• Lens: 50mm F1.0 for enhanced image detail
• Laser Rangefinder: Up to 1000m

Mega-Pixel Infrared Detector with 18mK NETD

The TB LRF Pro Series features a high-sensitivity 12μm detector with 1280×1024 infrared resolution and a NETD of 18mK, enabling the detection of the smallest temperature variations for crystal-clear imaging.

Ultra-Long Laser Ranging up to 1000m

The built-in LRF module provides a laser rangefinder with an impressive reach of up to 1000m/1090yd, allowing quick and precise target detection.

50mm Lens for Enhanced Detail

With a 50mm focal length, this series delivers a longer observation distance and more image detail compared to standard lenses.

Full-HD AMOLED Display for Vivid Visuals

Equipped with a 0.39" AMOLED 1920x1080 display, the TB LRF Pro Series offers vibrant, high-resolution images, enhancing observation clarity.

Extended Detection Range up to 2600m

The TB LRF Pro Series provides a maximum detection range of 2600m/2800yd, allowing you to observe targets at long distances, ideal for outdoor exploration.

Rugged IP68 Waterproof Protection

Compact and durable, the TB LRF Pro Series is IP68-rated, ensuring waterproof and dustproof performance, ready for harsh environmental conditions.

In the Box
Device, battery charger, two 18650 batteries, 5V2A adapter (compatible with US, UK, Australia, and Europe), USB Type-C cable, quick start guide, and warranty card.

Technical Specifications

• Model: TB1250LP

Sensor

• Type: Uncooled VOx Infrared Detector, 8 to 14μm
• Resolution: 1280×1024@12μm
• NETD: 18mK
• Frame Rate: 50Hz

Lens

• Objective Lens: 50mm, F1.0
• Field of View: 17.5°×14.0°
• Field of View at 100m: 31m x 25m
• Magnification: 1x
• Detection Range: 2600m / 2800 yards

Display

• Type: 0.39'' AMOLED 1920×1080
• Color Palettes: White Hot, Black Hot, Red Hot, Green Hot, Iron Red, Blue Hot, Sepia
• Eyepiece: Eye relief 20mm; Zoom 13.3x

Hardware

• Laser Rangefinder: 1000m / 1090 yards
• Wi-Fi: 2.4G, 5G
• Interface: USB Type-C (Power supply/USB2.0)
• Additional Features: Microphone, Bluetooth

System

• Recording: Supports photo and video with audio recording
• Memory: 256GB internal storage

Power

• Battery Type: Two replaceable 18650 batteries
• Operating Time: Up to 6 hours

Environmental Protection

• Operating Temperature: -20°C to 50°C (-4°F to +122°F)
• Shock Resistance: 1000G at 1ms (IEC60068-2-27 standard)
• Encapsulation: IP68

Physical Dimensions and Weight

• Weight: 617 grams / 21.76 ounces
• Size: 161×89×97 mm (6.34×3.50×3.82 inches)
