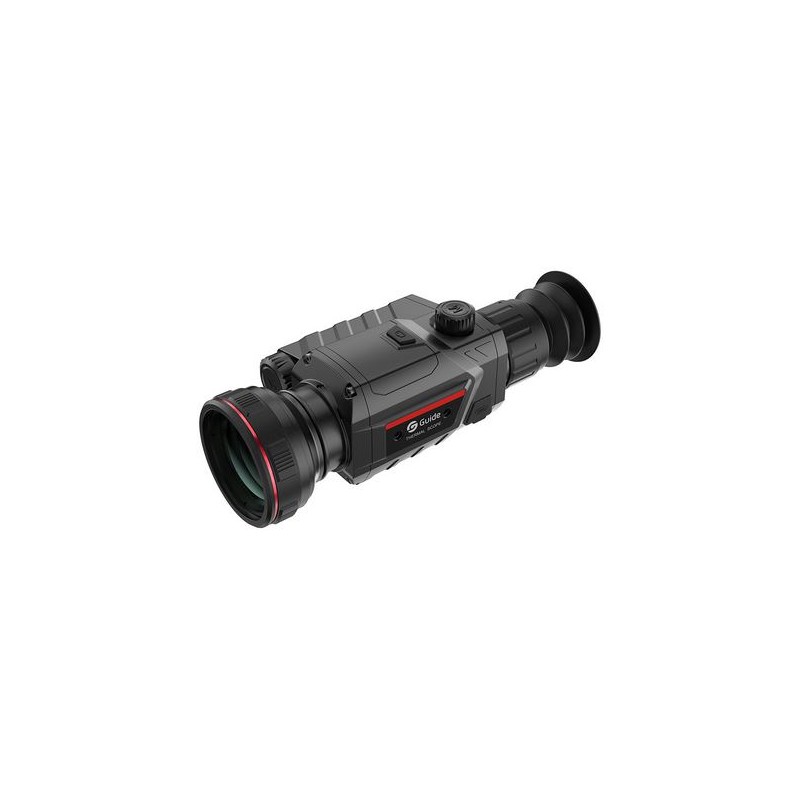

Guide TR450 Thermal Imaging Scope

TR Series: Affordable High-Performance Infrared Thermal Imaging Scope

The TR Series is a budget-friendly thermal imaging scope designed for civilian use, offering high sensitivity with lens options of 25 mm, 35 mm, and 50 mm. This series delivers sharp, detailed images with 400 × 300 IR resolution while maintaining precision. Compact, waterproof, dustproof, and shock-resistant, the TR Series is rugged and built to perform impressively in harsh environments.

Specifications

• Resolution: 400×300 IR
• Focal Length: 50mm F1.0
• Field of View: 5.27°×3.95°
• Display: 1024×768 AMOLED

High Definition Detector

Equipped with 12µm thermal imaging detectors, the TR Series provides 400×300 resolution and 25mK NETD, ensuring sharp imaging and excellent thermal sensitivity in all weather.

Full-Color HD AMOLED Display

The 0.39-inch HD AMOLED display with 1024×768 pixels offers high-contrast, vivid images, capturing every detail with clarity.

Quick-Release Mount for Tool-Free Setup

The quick-release scope mount allows for easy and secure mounting, with a locking lever to attach the device without any tools.

Ballistic Calculation for Precision Shooting

By connecting to the TargetIR Ballistics App (available for Android and iOS), users can input bullet and weather parameters, providing accurate ballistic calculations for high-precision shooting.

Photo and Video Capture with Audio

The TR Series enables users to capture and share moments with photo and video functionality, complete with a built-in microphone for sound recording.

One-Touch Screen Freeze for Zeroing

Screen freeze simplifies zeroing, improving accuracy and enhancing the user experience.

External Laser Range Finder

The optional external laser range finder measures distances up to 600 meters, connecting automatically on boot for quick target acquisition.

Seven Color Palettes for Enhanced Viewing

With seven color palettes available (White Hot, Black Hot, Red Hot, Green Hot, Iron Red, Blue Hot, and Sepia), the TR Series adjusts to various conditions, optimizing detection and identification.

IP67 Protection for Durability

Rated IP67, the TR Series is waterproof and dustproof, withstanding high humidity, heavy rain, and impacts, offering shock resistance up to 800G.

Over-the-Air Firmware Updates

Supports firmware updates via the TargetIR app, ensuring efficient and seamless upgrades.

Included in the Box
Device, quick-release scope mount, Type-C cable, 5V2A adapter (compatible with US, UK, Australia, and Europe), 18650 battery, battery charger, lens cover, eye mask, quick start guide, and warranty card.

Technical Specifications

• Model: TR450

Sensor

• Type: Uncooled VOx Infrared Detector, 8 to 14μm
• Resolution: 400×300@12μm
• NETD: 25mK
• Frame Rate: 50 Hz

Lens

• Objective Lens: 50mm, F1.0
• Field of View: 5.5°×4.1°
• Field of View at 100m: 10m x 7m
• Magnification: 4.7x~18.8x
• Detection Range: 2600m / 2800 yards

Display

• Type: 0.39'' AMOLED 1024×768
• Color Palettes: White Hot, Black Hot, Red Hot, Green Hot, Iron Red, Blue Hot, Sepia
• Eyepiece: Eye relief 48mm; Diopter ± 4; Zoom 14x

Hardware

• Wi-Fi: 2.4G
• Interface: USB Type-C
• Additional Features: Microphone, Bluetooth

System

• Recording: Supports photo and video with audio recording
• Memory: 32GB internal storage

Power

• Battery Type: Single, replaceable 18650 battery
• Operating Time: Up to 8 hours

Environmental Protection

• Operating Temperature: -30°C to 50°C (-22°F to +122°F)
• Shock Resistance: 800G at 1ms (IEC60068-2-27 standard)
• Encapsulation: IP67

Physical Dimensions and Weight

• Weight: 638 grams / 22.50 ounces
• Size: 219×92×70 mm (8.62×3.62×2.76 inches)
