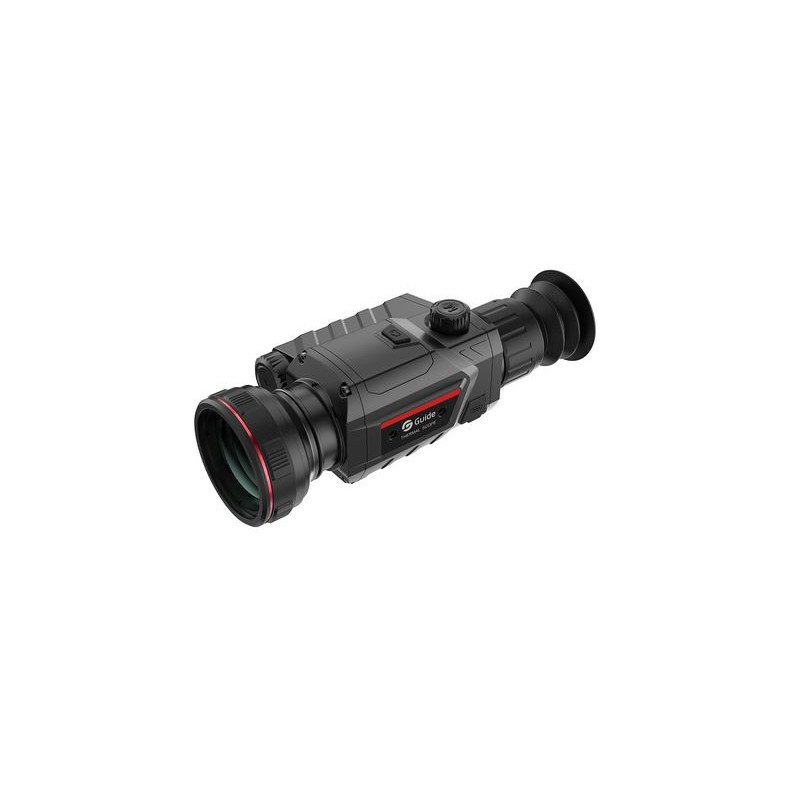

Guide TR650 Thermal Imaging Scope

TR Series: High-Performance, Affordable Infrared Thermal Imaging Scope

The TR Series is a budget-friendly infrared thermal imaging scope designed for civilian use, featuring a high-sensitivity thermal detector and three lens options: 25 mm, 35 mm, and 50 mm. With a 640 × 512 IR resolution, the TR Series produces sharp, detailed images with reliable accuracy. Compact, waterproof, dustproof, and shock-resistant, this rugged thermal scope performs impressively even in harsh weather conditions.

Key Specifications

• Resolution: 640×512 IR
• Focal Length: 50mm F1.0
• Field of View: 8.73°×6.60°
• Display: 1024×768 AMOLED

High-Definition Detector

Equipped with 12µm thermal imaging detectors, the TR Series offers 640×512 resolution and a 20mK NETD, providing high sensitivity and clear imaging in any weather.

Full-Color HD AMOLED Display

The 0.39-inch HD AMOLED display with 1024×768 resolution offers vibrant, high-contrast images, capturing every detail in rich color.

Quick-Release Mount for Easy Installation

The quick-release scope mount allows for fast and secure attachment using a locking lever, ensuring tool-free installation.

Ballistic Calculation for Precision Shooting

Compatible with the TargetIR Ballistics App (Android and iOS), users can input bullet and weather parameters for precise ballistic calculations, enhancing shooting accuracy.

Photo and Video Capture with Audio

Capture moments effortlessly with the photo and video functionality, including a built-in microphone for sound recording.

One-Touch Screen Freeze for Zeroing

The screen freeze function simplifies zeroing, improving accuracy and enhancing the user experience.

External Laser Range Finder

The optional external laser range finder provides precise distance measurement up to 600 meters, connecting automatically for quick target acquisition.

Seven Color Palettes for Enhanced Viewing

Choose from seven color palettes (White Hot, Black Hot, Red Hot, Green Hot, Iron Red, Blue Hot, and Sepia) to optimize visibility under various conditions, aiding in detection and identification.

IP67 Protection for Durability

With an IP67 waterproof and dustproof rating, the TR Series is built to withstand high humidity, heavy rain, and impacts, offering shock resistance up to 800G.

Over-the-Air Firmware Updates

Firmware updates are supported through the TargetIR app, keeping the device efficient and up-to-date.

Included in the Box
Device, quick-release scope mount, Type-C cable, 5V2A adapter (compatible with US, UK, Australia, and Europe), 18650 battery, battery charger, lens cover, eye mask, quick start guide, and warranty card.

Technical Specifications

• Model: TR650

Sensor

• Type: Uncooled VOx Infrared Detector, 8 to 14μm
• Resolution: 640×512@12μm
• NETD: 20mK
• Frame Rate: 50 Hz

Lens

• Objective Lens: 50mm, F1.0
• Field of View: 8.8°×7.0°
• Field of View at 100m: 15m x 12m
• Magnification: 2.9x~23.2x
• Detection Range: 2600m / 2800 yards

Display

• Type: 0.39'' AMOLED 1024×768
• Color Palettes: White Hot, Black Hot, Red Hot, Green Hot, Iron Red, Blue Hot, Sepia
• Eyepiece: Eye relief 48mm; Diopter ± 4; Zoom 14x

Hardware

• Wi-Fi: 2.4G
• Interface: USB Type-C
• Additional Features: Microphone, Bluetooth

System

• Recording: Supports photo and video with audio recording
• Memory: 32GB internal storage

Power

• Battery Type: Single, replaceable 18650 battery
• Operating Time: Up to 8 hours

Environmental Protection

• Operating Temperature: -30°C to 50°C (-22°F to +122°F)
• Shock Resistance: 800G at 1ms (IEC60068-2-27 standard)
• Encapsulation: IP67

Physical Dimensions and Weight

• Weight: 682 grams / 24.06 ounces
• Size: 219×92×70 mm (8.62×3.62×2.76 inches)
