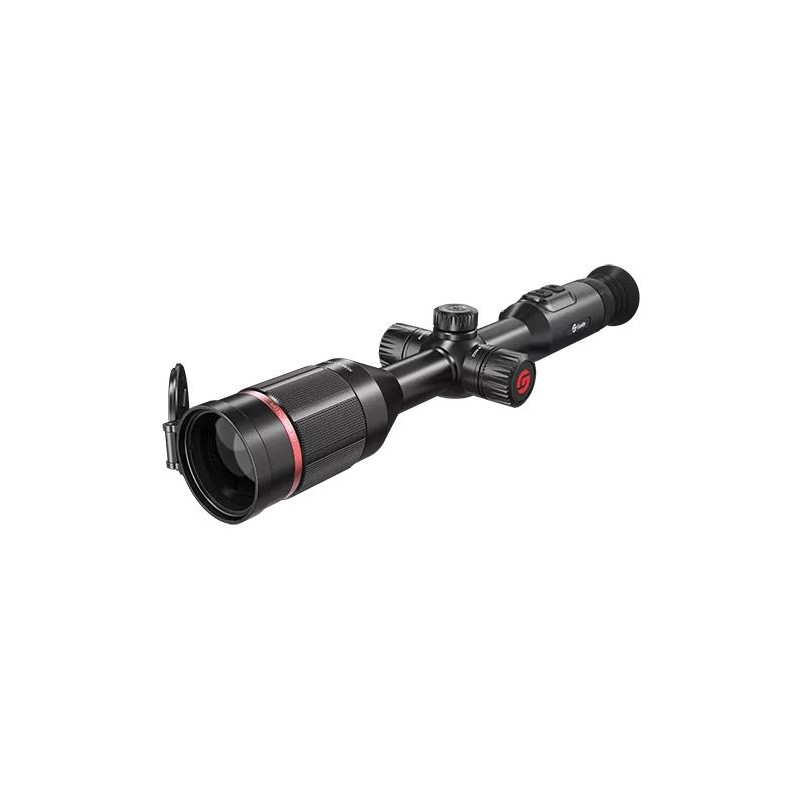

Guide TU431 Thermal Imaging Scope

TU Gen2 Series: Advanced Thermal Imaging with Enhanced Battery Life

The TU Gen2 Series boasts a high-sensitivity 12μm thermal sensor paired with a 1440×1080 HD AMOLED display and a powerful PureIR image algorithm, delivering a vivid, detailed visual experience. The device has been optimized for user-friendly operation, while the battery life has been extended by 20%, ensuring longer field use.

Key Specifications

• IR Resolution: 400x300
• Display: 1440×1080 0.49" AMOLED
• Battery Life: 12 hours
• OTA Upgrade: Keeps firmware up-to-date

High Definition Thermal Sensor, NETD Enhanced to 25mK

With options for 400x300@12μm or 640x512@12μm resolution, the TU Gen2's thermal sensor provides exceptional clarity, distinguishing animal body parts, foliage, and landscape details for precise observations.

0.49-Inch 1440x1080 AMOLED Display

The large 0.49-inch display brings detailed imagery to life, with heat signatures viewable in Picture-in-Picture (PIP) mode, adding comfort and precision to observations.

PureIR Adaptive Dynamic Filtering Algorithm

Featuring 3DNR and adaptive PureIR filtering algorithms, the TU Gen2 minimizes image distortion and enhances detail capture, ensuring high-sensitivity imaging even for distant targets.

Included in the Box
Device, lens cover, eye mask, 5V2A adapter (compatible with US, UK, Australia, and Europe), two customized batteries, battery charger, USB Type-C cable, Micro HDMI cable, two clips, quick start guide, and warranty card.

Technical Specifications

• Model: TU431

Sensor

• Type: Uncooled VOx Infrared Detector, 8 to 14μm
• Resolution: 400×300@12μm
• NETD: 25mK
• Frame Rate: 50 Hz

Lens

• Objective Lens: 35mm, F1.0
• Field of View: 7.8°×5.9°
• Field of View at 100m: 14m x 10m
• Magnification: 3.3x~13.2x
• Detection Range: 1800m / 1950 yards

Display

• Type: 0.49'' AMOLED 1440×1080
• Color Palettes: White Hot, Black Hot, Red Hot, Green Hot, Iron Red, Blue Hot, Sepia
• Eyepiece: Eye relief 48mm; Diopter ± 4; Zoom 14x

Hardware

• Wi-Fi: 2.4G
• Interface: USB Type-C, Micro HDMI
• Tube Diameter: Standard 30 mm
• Additional Features: Microphone, Bluetooth

System

• Recording: Photo/Video (with audio)
• Memory: 128GB

Power

• Battery Type: Internal 18650 battery and external customized battery
• Operating Time: Up to 12 hours

Environmental Protection

• Operating Temperature: -30°C to 50°C (-22°F to +122°F)
• Shock Resistance: 800G at 1ms (IEC60068-2-27 standard)
• Encapsulation: IP67

Physical Dimensions and Weight

• Weight: 981 grams / 34.60 ounces
• Size: 368×106×68 mm (14.49×4.17×2.68 inches)
