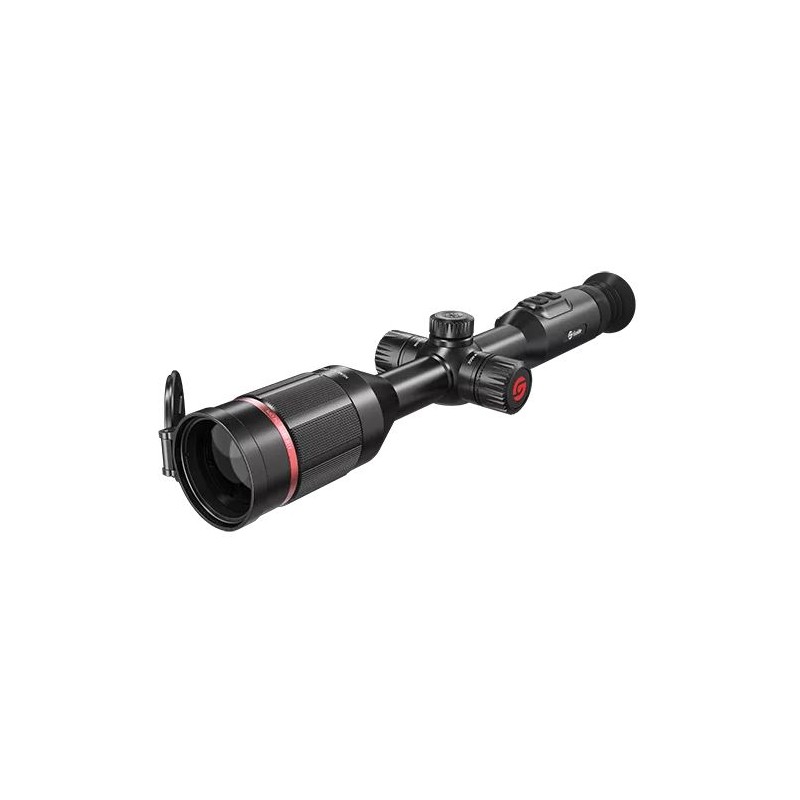

Guide TU451 Thermal Imaging Scope

TU Gen2 Series: Enhanced Thermal Imaging with Extended Battery Life

The TU Gen2 Series features a high-sensitivity 12μm thermal sensor and a 1440×1080 HD AMOLED display. Paired with the powerful PureIR image algorithm, it delivers a vivid and detailed viewing experience. Meticulously optimized for user-friendly operation, the design includes a 20% increase in battery life, providing extended field use.

Specifications

• IR Resolution: 400x300
• Display: 1440×1080 0.49" AMOLED
• Battery Life: 12 hours
• IP67: Rugged and durable

High Definition Thermal Sensor, NETD Optimized to 25mK

The high-quality thermal imaging sensor, available in 400x300@12μm or 640x512@12μm resolution, provides precise recognition of animals, body parts, and detailed elements like branches, grass, and landscapes.

0.49-Inch 1440x1080 AMOLED Display

The large 0.49-inch AMOLED display enhances decision-making by offering high-resolution, detailed visuals. The Picture-in-Picture (PIP) mode further enriches observation by displaying heat signatures in fine detail.

PureIR Adaptive Dynamic Filtering Algorithm

Combining 3DNR and adaptive PureIR filtering algorithms, this series reduces image distortion and increases detail sensitivity, making distant targets easier to detect and recognize.

Included in the Box
Device, lens cover, eye mask, 5V2A adapter (compatible with US, UK, Australia, and Europe), two customized batteries, battery charger, USB Type-C cable, Micro HDMI cable, two clips, quick start guide, and warranty card.

Technical Specifications

• Model: TU451

Sensor

• Type: Uncooled VOx Infrared Detector, 8 to 14μm
• Resolution: 400×300@12μm
• NETD: 25mK
• Frame Rate: 50 Hz

Lens

• Objective Lens: 50mm, F1.0
• Field of View: 5.5°×4.1°
• Field of View at 100m: 10m x 7m
• Magnification: 4.7x~18.9x
• Detection Range: 2600m / 2800 yards

Display

• Type: 0.49'' AMOLED 1440×1080
• Color Palettes: White Hot, Black Hot, Red Hot, Green Hot, Iron Red, Blue Hot, Sepia
• Eyepiece: Eye relief 48mm; Diopter ± 4; Zoom 14x

Hardware

• Wi-Fi: 2.4G
• Interface: USB Type-C, Micro HDMI
• Tube Diameter: Standard 30 mm
• Additional Features: Microphone, Bluetooth

System

• Recording: Photo/Video (with audio)
• Memory: 128GB

Power

• Battery Type: Internal 18650 battery and external customized battery
• Operating Time: Up to 12 hours

Environmental Protection

• Operating Temperature: -30°C to 50°C (-22°F to +122°F)
• Shock Resistance: 800G at 1ms (IEC60068-2-27 standard)
• Encapsulation: IP67

Physical Dimensions and Weight

• Weight: 987 grams / 34.82 ounces
• Size: 381×106×68 mm (15.00×4.17×2.68 inches)
