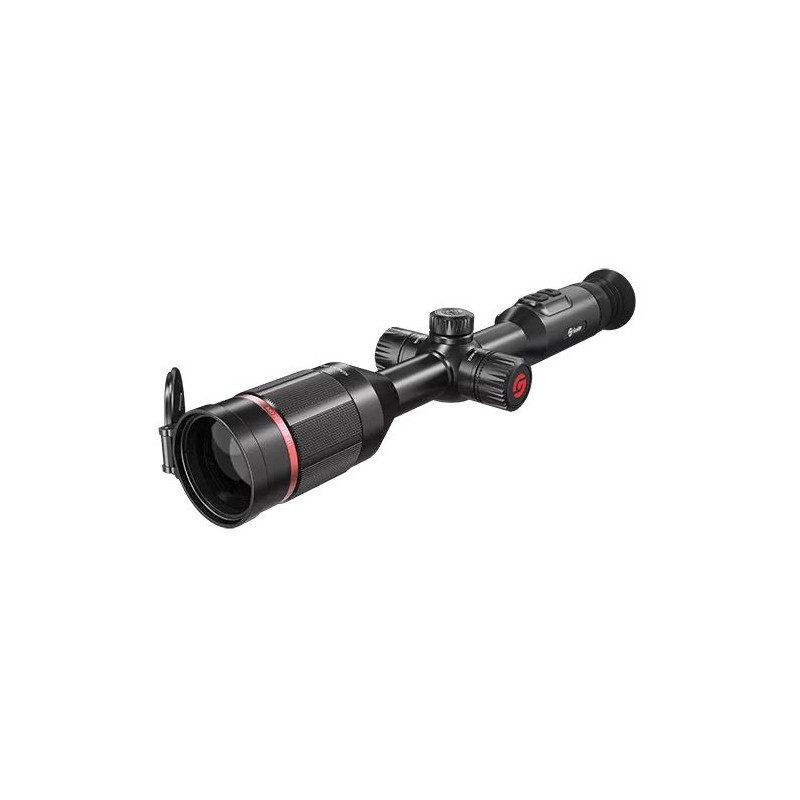

Guide TU631 Thermal Imaging Scope

The TU Gen2 Series combines a high-sensitivity 12μm thermal sensor and a 1440×1080 HD AMOLED display with the advanced PureIR image algorithm, delivering vivid, detailed visuals. Designed with user-friendly optimizations, this series also benefits from a 20% extended battery life for enhanced field performance.

2863.58 $
Tax included

2328.11 $ net price (non-EU countries)

Anatolii Livashevskyi
Product Manager
Українська / Polski
+48721808900
+48721808900
Telegram +48721808900
[email protected]

Description

TU Gen2 Series: Enhanced Thermal Imaging for Precision and Durability

The TU Gen2 Series combines a high-sensitivity 12μm thermal sensor and a 1440×1080 HD AMOLED display with the advanced PureIR image algorithm, delivering vivid, detailed visuals. Designed with user-friendly optimizations, this series also benefits from a 20% extended battery life for enhanced field performance.

Specifications

  • IR Resolution: 640×512
  • Display: 1440×1080 0.49" AMOLED
  • Battery Life: 12 hours
  • IP67: Built to withstand tough conditions

High Definition Thermal Sensor, NETD Enhanced to 20mK

Equipped with options for 400x300@12μm or 640x512@12μm resolution, the high-quality thermal sensor allows for clear recognition of animals, body parts, and detailed environmental elements such as branches, leaves, and grass.

0.49-Inch 1440x1080 AMOLED Display

The enlarged 0.49-inch AMOLED display offers more detail, with a Picture-in-Picture (PIP) mode for enhanced thermal imaging, providing comfort and accuracy in observations.

PureIR Adaptive Dynamic Filtering Algorithm

Using 3DNR and adaptive PureIR filtering, this series minimizes image distortion while increasing detail, making it easier to identify even distant targets.



Included in the Box
Device, lens cover, eye mask, 5V2A adapter (compatible with US, UK, Australia, and Europe), two customized batteries, battery charger, USB Type-C cable, Micro HDMI cable, two clips, quick start guide, and warranty card.



Technical Specifications

  • Model: TU631

Sensor

  • Type: Uncooled VOx Infrared Detector, 8 to 14μm
  • Resolution: 640×512@12μm
  • NETD: 20mK
  • Frame Rate: 50 Hz

Lens

  • Objective Lens: 35mm, F1.0
  • Field of View: 12.5°×10.0°
  • Field of View at 100m: 22m x 17m
  • Magnification: 2.1x~16.6x
  • Detection Range: 1800m / 1950 yards

Display

  • Type: 0.49'' AMOLED 1440×1080
  • Color Palettes: White Hot, Black Hot, Red Hot, Green Hot, Iron Red, Blue Hot, Sepia
  • Eyepiece: Eye relief 48mm; Diopter ± 4; Zoom 14x

Hardware

  • Wi-Fi: 2.4G
  • Interface: USB Type-C, Micro HDMI
  • Tube Diameter: Standard 30 mm
  • Additional Features: Microphone, Bluetooth

System

  • Recording: Photo/Video (with audio)
  • Memory: 128GB

Power

  • Battery Type: Internal 18650 battery and external customized battery
  • Operating Time: Up to 12 hours

Environmental Protection

  • Operating Temperature: -30°C to 50°C (-22°F to +122°F)
  • Shock Resistance: 800G at 1ms (IEC60068-2-27 standard)
  • Encapsulation: IP67

Physical Dimensions and Weight

  • Weight: 971 grams / 34.25 ounces
  • Size: 368×106×68 mm (14.49×4.17×2.68 inches)
