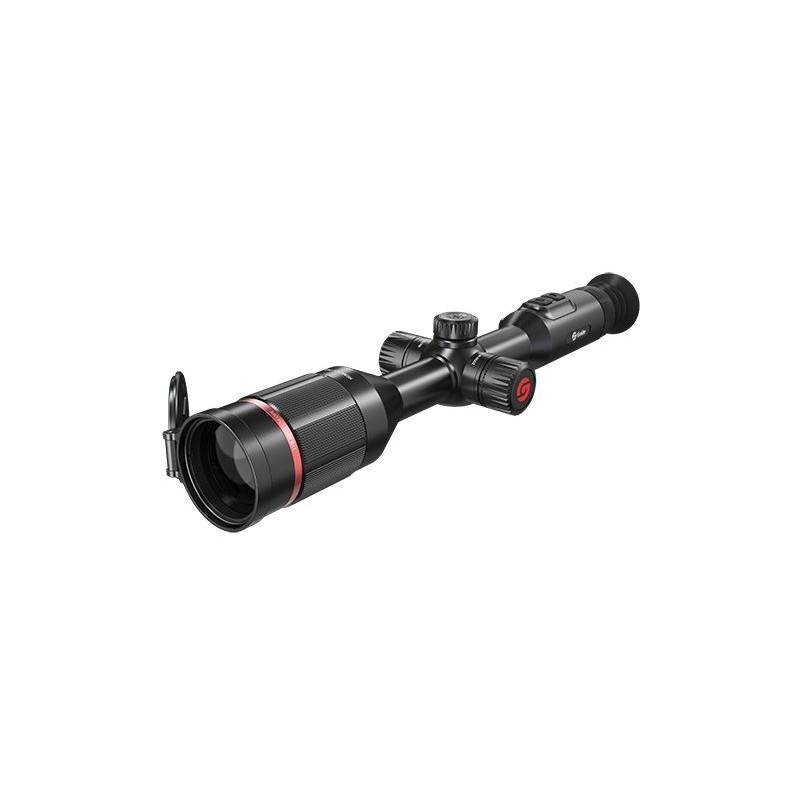

Guide TU651 Thermal Imaging Scope

TU Gen2 Series: Advanced Thermal Imaging with Extended Battery Life

The TU Gen2 Series features a high-sensitivity 12μm thermal sensor paired with a 1440×1080 HD AMOLED display. Combined with the PureIR image algorithm, this series delivers vivid, detailed visuals for an enhanced viewing experience. Optimized for user-friendly operation, it also boasts a 20% increase in battery life for extended field use.

Specifications

• IR Resolution: 640×512
• Display: 1440×1080 0.49" AMOLED
• Battery Life: 12 hours
• OTA Upgrade: Always stay updated with the latest firmware

High Definition Thermal Sensor, NETD Optimized to 20mK

With options for 400x300@12μm or 640x512@12μm resolution, the high-quality thermal imaging sensor allows for clear recognition of animals, body parts, and environmental elements like branches, leaves, and grass.

0.49-Inch 1440x1080 AMOLED Display

The large 0.49-inch AMOLED display provides exceptional detail, with Picture-in-Picture (PIP) mode enhancing comfort and precision during observations.

PureIR Adaptive Dynamic Filtering Algorithm

Featuring 3DNR and PureIR adaptive filtering algorithms, this series reduces image distortion and enhances detail, making distant targets easier to identify.

Included in the Box
Device, lens cover, eye mask, 5V2A adapter (compatible with US, UK, Australia, and Europe), two customized batteries, battery charger, USB Type-C cable, Micro HDMI cable, two clips, quick start guide, and warranty card.

Technical Specifications

• Model: TU651

Sensor

• Type: Uncooled VOx Infrared Detector, 8 to 14μm
• Resolution: 640×512@12μm
• NETD: 20mK
• Frame Rate: 50 Hz

Lens

• Objective Lens: 50mm, F1.0
• Field of View: 8.8°×7.0°
• Field of View at 100m: 15m x 12m
• Magnification: 3.0x~23.6x
• Detection Range: 2600m / 2800 yards

Display

• Type: 0.49'' AMOLED 1440×1080
• Color Palettes: White Hot, Black Hot, Red Hot, Green Hot, Iron Red, Blue Hot, Sepia
• Eyepiece: Eye relief 48mm; Diopter ± 4; Zoom 14x

Hardware

• Wi-Fi: 2.4G
• Interface: USB Type-C, Micro HDMI
• Tube Diameter: Standard 30 mm
• Additional Features: Microphone, Bluetooth

System

• Recording: Photo/Video (with audio)
• Memory: 128GB

Power

• Battery Type: Internal 18650 battery and external customized battery
• Operating Time: Up to 12 hours

Environmental Protection

• Operating Temperature: -30°C to 50°C (-22°F to +122°F)
• Shock Resistance: 800G at 1ms (IEC60068-2-27 standard)
• Encapsulation: IP67

Physical Dimensions and Weight

• Weight: 1000 grams / 35.27 ounces
• Size: 381×106×68 mm (15.00×4.17×2.68 inches)
