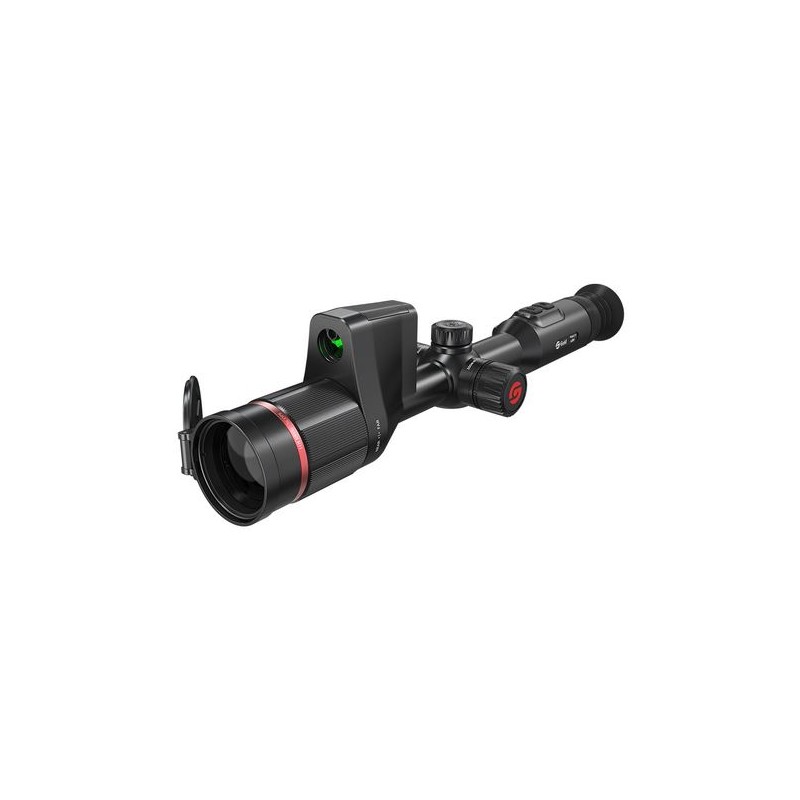

Guide TU451 LRF Thermal Imaging Scope

With a seamlessly integrated laser rangefinder, the TU Gen2 LRF Series allows precise target detection up to 1,500 meters, giving hunters a reliable perception of distance to make accurate shots. The design has been meticulously optimized for enhanced user-friendliness, with battery life extended by 20% for longer field performance.

Key Features

• IR Resolution: 400×300@12μm
• Display: 1440×1080, 0.49" AMOLED
• Battery Life: 12 Hours
• Laser Ranging: Up to 1500m

High-Definition Thermal Sensor, Optimized to 20mK NETD

The advanced thermal imaging sensor, available in 400x300@12μm or 640x512@12μm resolutions, provides clear distinctions that enhance the recognition of animals, their features, and environmental details.

0.49-inch 1440x1080 AMOLED Display

An expanded AMOLED display provides richer image detail, with Picture-in-Picture (PIP) mode enhancing viewing comfort and decision-making.

Fast Detection with 1500m LRF

Equipped with a newly upgraded, compact laser ranging module, the TU Gen2 LRF Series offers precise detection up to 1500 meters, increasing hunting efficiency in nighttime conditions.

What's in the Box
Device, lens cover, eye mask, 5V2A adapter (compatible with US, UK, Australia, and Europe), two customized batteries, customized battery charger, USB Type-C cable, Micro HDMI cable, two clips, quick start guide, and warranty card.

Technical Specifications

• Model: TU451 LRF

Sensor

• Type: Uncooled VOx Infrared Detector, 8 to 14μm
• Resolution: 400×300@12μm
• NETD: 25mK
• Frame Rate: 50 Hz

Lens

• Objective Lens: 50mm, F1.0
• Field of View: 5.5°×4.1°
• Field of View at 100m: 10m x 7m
• Magnification: 4.7x~18.9x
• Detection Range: 2600m / 2800 yards

Display

• Type: 0.49" AMOLED 1440×1080
• Color Palettes: White Hot, Black Hot, Red Hot, Green Hot, Iron Red, Blue Hot, Sepia
• Eyepiece: Eye relief 48mm; Diopter ±4; Zoom 14x

Hardware

• Laser Rangefinder: 1500m / 1630 yards
• Wi-Fi: 2.4G
• Interface: USB Type-C; Micro HDMI
• Tube Diameter: Standard 30 mm
• Additional Features: Microphone, Bluetooth

System

• Recording: Photo/Video (with audio)
• Memory: 128GB

Power

• Battery Type: Internal 18650 battery and external customized battery
• Operating Time: 12 hours

Environmental Protection

• Operating Temperature: -30°C to 50°C (-22°F to +122°F)
• Shock Resistance: 800G (IEC60068-2-27 standard)
• Encapsulation: IP67

Physical Dimensions and Weight

• Weight: 1151 grams / 40.60 ounces
• Size: 381×106×99 mm (15.00×4.17×3.90 inches)
