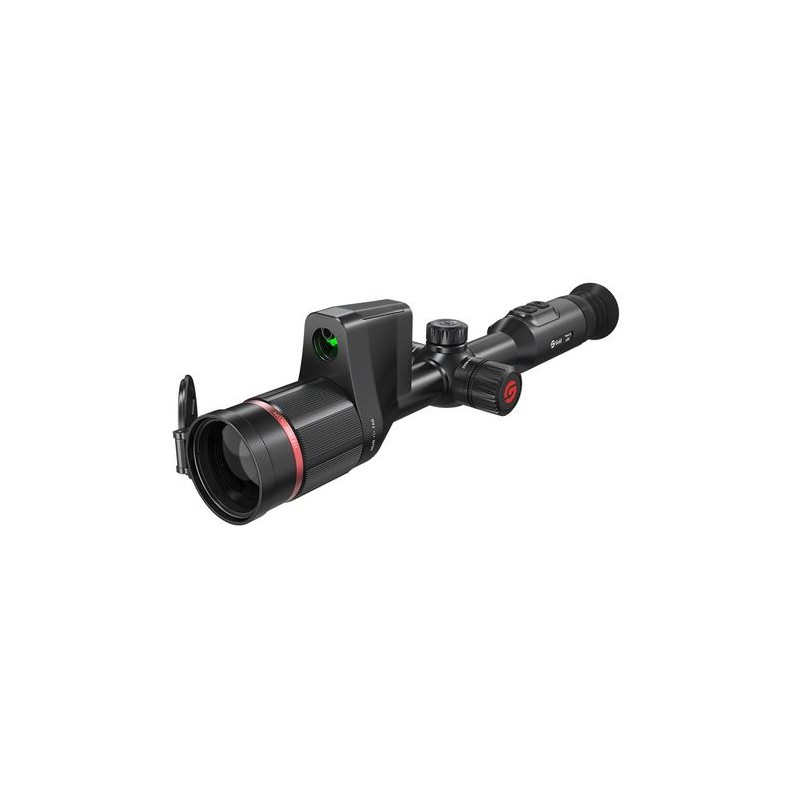

Guide TU651 LRF Thermal Imaging Scope

With a seamlessly integrated laser rangefinder in a slim scope design, the TU Gen2 LRF Series delivers precise target detection up to 1,500 meters. This advanced design enhances hunting accuracy by providing reliable distance measurements, empowering hunters to make precise shots. The device has been meticulously optimized for user-friendly operation, with a substantial 20% increase in battery life for longer, uninterrupted use.

640×512 IR Resolution
1440×1080, 0.49" AMOLED Display
OTA Upgrade for the latest firmware
1500m Laser Ranging

High-Definition Thermal Sensor, NETD Optimized to 20mK
Equipped with a premium 12μm thermal imaging sensor, available in 400x300 or 640x512 resolution, this device captures minute details for enhanced recognition of animals, their body parts, and surrounding elements like branches and grass.

0.49-inch 1440x1080 AMOLED Display
The expansive AMOLED display enhances visual clarity, with Picture-in-Picture (PIP) mode for detailed heat signature observation, greatly improving user experience.

PureIR Adaptive Dynamic Filtering Algorithm (PureIR)
Combining 3DNR with adaptive filtering, PureIR technology produces high-sensitivity thermal images, reducing distortion and revealing detailed, long-range target visuals.

Fast Detection with 1500m LRF
The upgraded, compact laser ranging module provides accurate detection up to 1500 meters, increasing hunting efficiency with rapid target identification.

In the Box
Device, lens cover, eye mask, 5V2A adapter (US, UK, Australia, Europe), two customized batteries, customized battery charger, USB Type-C cable, Micro HDMI cable, two clips, quick start guide, warranty card.

Technical Parameters

• Model: TU651 LRF

Sensor

• Type: Uncooled VOx Infrared Detector, 8 to 14μm
• Resolution: 640×512@12μm
• NETD: 20mK
• Frame Rate: 50 Hz

Lens

• Objective Lens: 50mm, F1.0
• Field of View: 8.8°×7.0°
• Field of View at 100m: 15m x 12m
• Magnification: 3.0x~23.6x
• Detection Range: 2600m / 2800 yards

Display

• Type: 0.49" AMOLED 1440×1080
• Color Palettes: White Hot, Black Hot, Red Hot, Green Hot, Iron Red, Blue Hot, Sepia
• Eyepiece: Eye relief 48mm; Diopter ±4; Zoom 14x

Hardware

• Laser Rangefinder: 1500m / 1630 yards
• Wi-Fi: 2.4G
• Interface: USB Type-C; Micro HDMI
• Tube Diameter: Standard 30 mm
• Additional Features: Microphone, Bluetooth

System

• Recording: Photo/Video (with audio)
• Memory: 128GB

Power

• Battery Type: Internal 18650 battery and external customized battery
• Operating Time: 12 hours

Environmental Protection

• Operating Temperature: -30°C to 50°C (-22°F to +122°F)
• Shock Resistance: 800G (IEC60068-2-27 standard)
• Encapsulation: IP67

Physical Dimensions and Weight

• Weight: 1171 grams / 41.31 ounces
• Size: 381×106×99 mm (15.00×4.17×3.90 inches)
