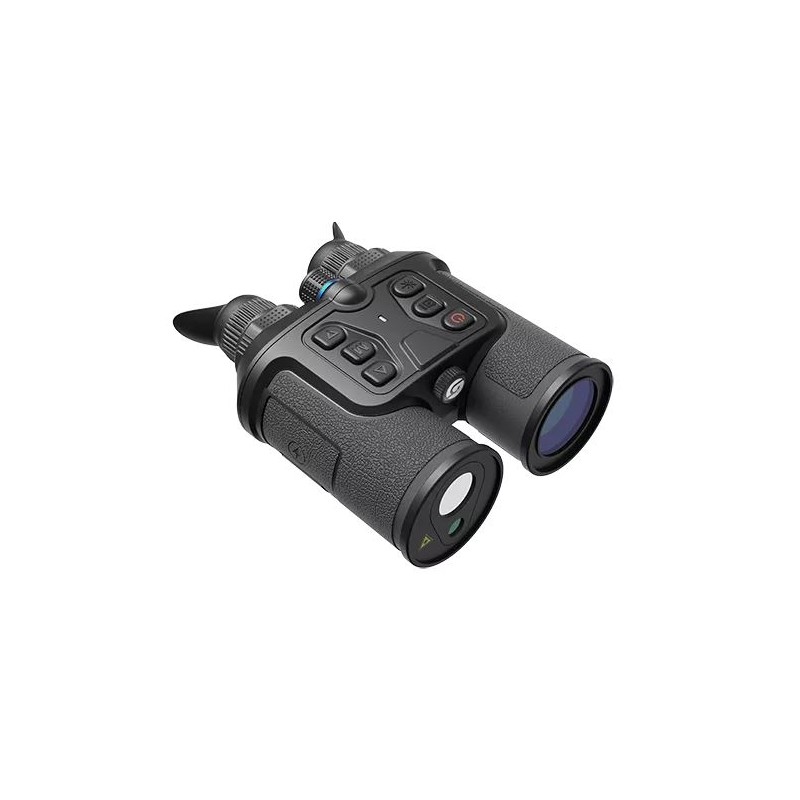

Guide DN30 Handheld Digital Binoculars

Experience ultra-HD clarity with the DN Series. Featuring a 3840x2160@2μm moonlight low-light CMOS sensor and a 1920x1080 AMOLED display, it produces stunning visuals both day and night. With sufficient lighting, the 4K low-light sensor excels at color rendition, creating vibrant and detailed images. During low-light conditions, such as dawn, dusk, or night, activating the infrared fill light allows you to see through darkness, enabling long-distance observation, identification, and monitoring of hidden targets.

3840×2160@2µm 4K UHD sensor
1920×1080 AMOLED display
1000m Laser ranging
6 Hours Battery life

Core Sensor with Clear Imaging
Outfitted with a 4K ultra-HD sensor, it captures clear images in any light conditions, revealing details of animals even in complete darkness.

High-Definition Display for Enhanced Vision
A 0.39-inch high-resolution, high-contrast AMOLED display delivers improved image quality and immersive visual effects.

24/7 Animal Observation for Outdoor Hunting
Perfect for outdoor and forest environments, the DN Series enables quick prey detection and identification, revealing physical characteristics and species even at night.

“X-ray Vision” in Low Light
With just a hint of moonlight, the device provides clear vision for discreet observation in dimly lit conditions, ensuring no hiding place for prey.

Three Scene Modes for All Lighting Conditions
Adjust scene modes based on lighting and time for optimal images, revealing crucial target details.

• Day Mode: Vivid colors, capturing real-life moments
• Twilight Mode: Green light, eye protection with full detail
• Night Mode: Exceptional sensitivity, capturing every frame

One-Touch Photo and Video Capture
Outdoor enthusiasts can record memorable moments with ease. Press briefly for photos or hold for video recording.

OTA Upgrade for Seamless Updates
Update firmware remotely via the TargetIR App, optimizing functions and interactions for enhanced performance and user experience.

WiFi Connectivity for Instant Sharing
Connect locally to the TargetIR App for real-time previews, remote control, and easy social media sharing.

Ergonomics for Comfortable Use
With a wide field of view and an easy-to-hold design, the DN Series prioritizes user comfort during observation.

In the Box
Device, lens cap, two detachable eye masks, carry bag, shoulder strap, 5V2A adapter (US, UK, Australia, Europe), two replaceable 18650 batteries, battery charger, USB Type-C cable, micro HDMI cable, quick start guide.

Technical Parameters

• Model: DN30
• Sensor: CMOS, 3840×2160@2μm
• Frame Rate: 50Hz
• Lens: 35mm, F1.0
• Field of View: 12.57°×7.12° (22×12m at 100m)
• Magnification: 1.96x~15.68x
• Detection Range: 600m / 650yd

Display

• Type: 0.39'' AMOLED 1920×1080
• Scene Modes: Day, Night, Low-light
• Eyepiece: Eye relief 16mm; Diopter -4 to +2; Interpupillary distance 60-70mm; Zoom 13.8x

Hardware

• Laser Rangefinder: 1000m / 1090yd
• IR Illuminator: 940 nm
• WiFi: 2.4G
• Interface: USB Type-C
• Additional Features: GPS, Compass, Gyroscope, Bluetooth

System

• Recording Function: Photo/Video
• Memory Capacity: 32GB

Power

• Battery Type: Two replaceable 18650 batteries
• Operating Time: 6 hours

Environmental Protection

• Operating Temp: -30°C to 50°C / -22°F to +122°F
• Encapsulation: IP66

Physical Specs

• Weight: 940g / 33.16oz
• Size: 162×146×70mm / 6.38×5.75×2.76in
