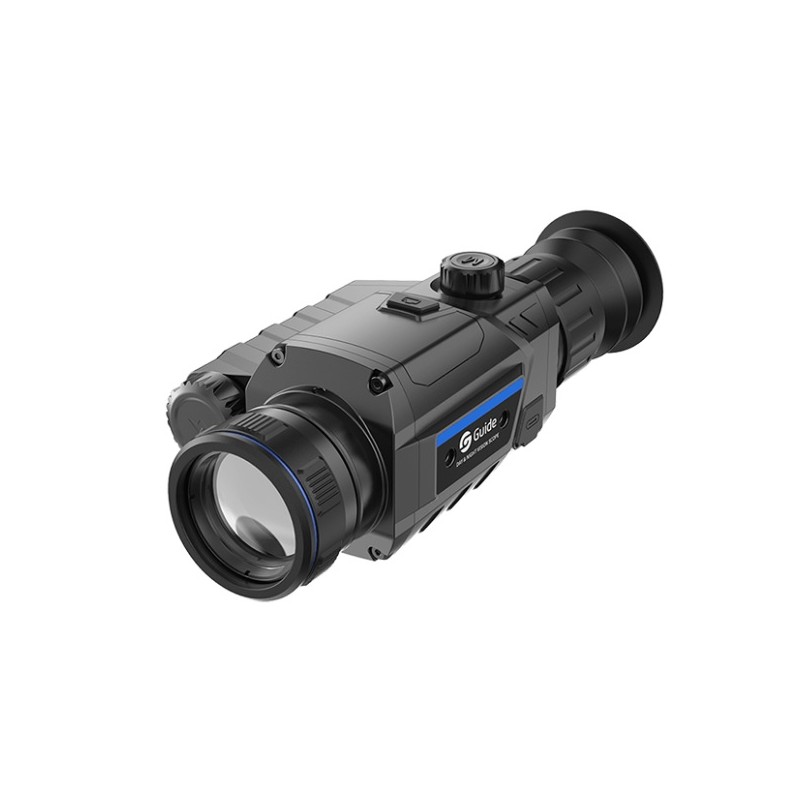

Guide DR30 Digital Day & Night Vision Scope

The DR Series delivers professional-grade day and night vision, featuring outstanding night vision capabilities with a 1920×1080@4μm CMOS sensor and a 35mm lens for an ultra-large 12.5°×7.06° field of view. Paired with a 1920×1080 full HD OLED display, it enhances every viewing experience. Powered by a long-lasting 18650 Li-ion battery, this scope offers up to 6 hours of use, ensuring you have all the power needed on extended hunts.

12.52°x7.06° Ultra Large FOV
1920×1080 OLED Display
OTA Upgrade
1920x1080@4µm HD Sensor

Wide Field of View Experience
With a 1920×1080@4μm sensor resolution and 35mm lens, the DR Series provides an impressive 12.5°×7.06° field of view. The full HD OLED display guarantees smooth, highly detailed images for an enhanced viewing experience.

Enhanced Nighttime Imaging
Upgraded algorithms balance image brightness when using an IR illuminator, minimizing flood exposure from nearby objects and enhancing distant object visibility. This optimization delivers sharp, low-noise images, making nighttime observation more professional and enjoyable.

Three Viewing Modes

• Day Mode: For true-to-life color
• Low-light Mode: Captures every detail
• Night Mode: Ideal for capturing motion in darkness

IP67 Waterproof Protection
Engineered for durability, the DR Series boasts IP67 waterproofing and 800G shock resistance, making it resilient in challenging outdoor conditions, from rain to rugged terrain.

One-touch Freeze
Instant screen freeze simplifies zeroing, improving accuracy and adding to overall ease of use.

OTA Upgrade Capability
Stay up-to-date effortlessly with OTA firmware upgrades through the TargetIR App, enabling updates from the comfort of your home.

Included in the Box
Device, sight base (choose from two options), Type-C cable, 5V2A adapter (US, UK, Australia, and Europe), 18650 battery, battery charger, lens cover, eye mask, IR illuminator, IR illuminator bracket, quick start guide, warranty card.

Technical Parameters

• Model: DR30
• Sensor: CMOS, 1920×1080@4μm
• Frame Rate: 50Hz
• Lens: 35mm, F1.2
• Field of View: 12.52°×7.06° (22×12m at 100m)
• Magnification: 2.175x~17.4x
• Detection Range: 500m/550yd (850nm); 450m/500yd (940nm)

Display

• Type: 0.39'' AMOLED 1920×1080
• Scene Modes: Day, Night, Low-light
• Eyepiece: Eye relief ≥ 48mm; Diopter ± 4; Zoom 14x

Hardware

• IR Illuminator: 850nm/940nm (optional)
• WiFi: 2.4G
• Interface: USB Type-C

System

• Recording Function: Photo/Video
• Memory Capacity: 32GB

Power

• Battery Type: Single replaceable 18650 battery
• Operating Time: 6 hours

Environmental

• Operating Temp: -30°C to 50°C / -22°F to +122°F
• Shock Resistance: 800G

Physical Specs

• Weight: 565g / 19.93oz
• Size: 218×88×66mm / 8.58×3.46×2.60in
