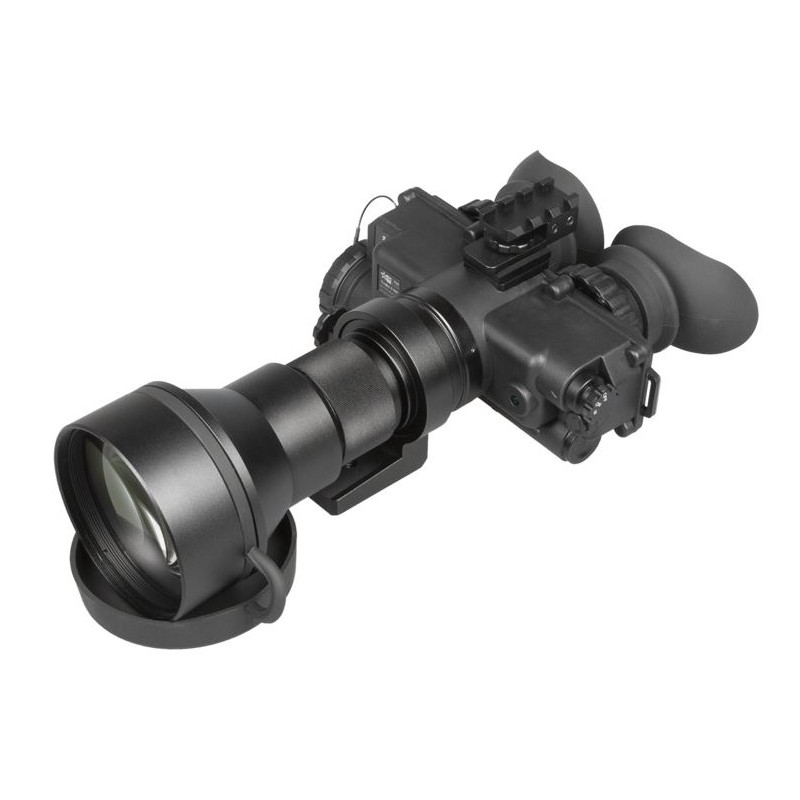

AGM Foxbat-5 NL1 Night Vision Bi-Ocular

The AGM FoxBat-5 night vision bi-ocular is the ideal solution for mid-range and long-range observation. It combines a single high-quality image intensifier tube with an image beam splitter, dual eyepiece, and durable electronics. Designed for long viewing sessions, the FoxBat-5 delivers excellent image clarity and is perfect for home security, recreational use, scientific projects, and nature observation. PART NO.: 13FXB525103011

3321.00 $
Tax included

2700 $ net price (non-EU countries)

Anatolii Livashevskyi
Product Manager
Українська / Polski
+48721808900
+48721808900
Telegram +48721808900
[email protected]

Description

The AGM FoxBat-5 night vision bi-ocular is the ideal solution for mid-range and long-range observation. It combines a single high-quality image intensifier tube with an image beam splitter, dual eyepiece, and durable electronics. Designed for long viewing sessions, the FoxBat-5 delivers excellent image clarity and is perfect for home security, recreational use, scientific projects, and nature observation. Birdwatchers and jaegers can enjoy extended night viewing with the tripod mounting option, while the crystal-clear imaging and fast, multicoated optics enhance every detail.

Level 2i

Key Features

  • 5x magnification
  • IP67 Protection Level
  • Multi-coated, all-glass optics
  • Dual-eye viewing for extended sessions
  • Rugged, versatile design
  • Water and fog resistance
  • Easy-to-use, ergonomic controls
  • Detachable long-range IR illuminator
  • Tripod mountable
  • 3-year warranty

Maximum Spots Allowed in Each Zone
Spot Size

  • >.015 in: Zone 1 - 0 | Zone 2 - 0 | Zone 3 - 0
  • >.012 – .015 in: Zone 1 - 0 | Zone 2 - 0 | Zone 3 - 1
  • >.009 – .012 in: Zone 1 - 0 | Zone 2 - 0 | Zone 3 - 1
  • >.006 – .009 in: Zone 1 - 0 | Zone 2 - 1 | Zone 3 - 2
  • .003 – .006 in: Zone 1 - 1 | Zone 2 - 2 | Zone 3 - 3



Package Includes
Packing Box, Wrist Strap, Lens Tissue, Lithium Battery CR123A, Battery Adapter (CR123A 3V / AA 1.5V), User Manual, Neck Lanyard, Soft Carrying Case, AGM Sioux850 Long-Range Infrared Illuminator



Specifications

  • Image Intensifier Tube: Gen 2+ "Level 1" International
  • Cosmetic Level of IIT: NL1, top quality
  • Resolution: 47-55 lp/mm
  • Visible Spots: Clear FOV
  • NL1: Manually selected tubes with advanced clear-cut image quality similar to Gen 3
  • Magnification: 5x
  • Lens System: 140 mm; F/2.0
  • FOV: 9.4°
  • Focus Range: 10 m to infinity
  • Controls: Digital
  • Diopter Adjustment: -5 to +5 dpt
  • LED Indicators: Low battery; Excessive light
  • Automatic Brightness Control: Yes
  • Bright Light Cut-Off: Yes
  • Infrared Illuminator: Detachable long-range IR illuminator
  • Battery Type: Two 1.5V AA batteries
  • Battery Life: Up to 40 hrs
  • Operating Temperature: -40°C to +50°C (-40°F to +122°F)
  • Storage Temperature: -50°C to +70°C (-58°F to +158°F)
  • Weight: 1070 g (2.35 lb)
  • Dimensions: 280 × 150 × 78 mm (11.0 × 5.9 × 3.0 in)
