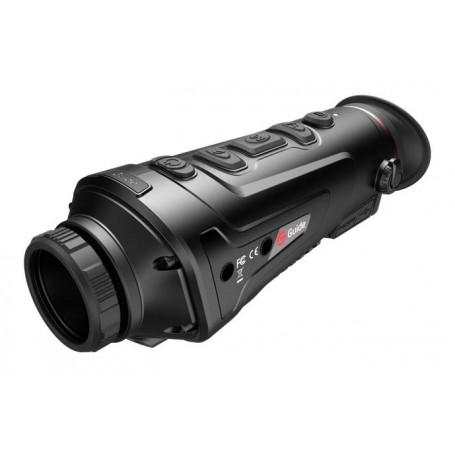

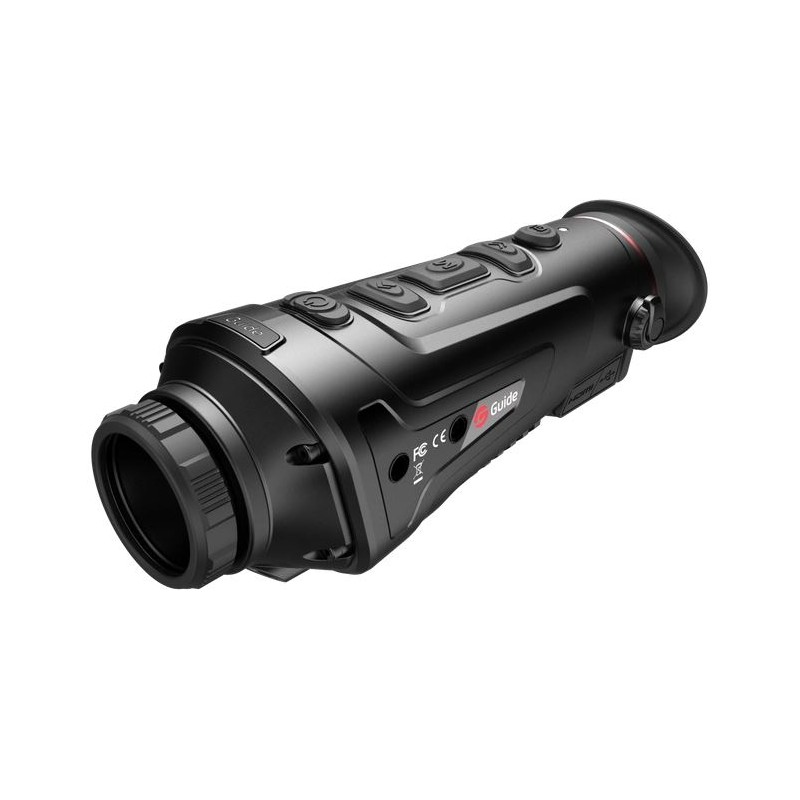

Guide TK611 Thermal Imaging Monocular

The Guide IR TK611 19mm Thermal Imaging Camera is a next-generation portable thermal imaging device from Guide, featuring a 640 x 480 pixel IR sensor and a 1280 x 960 HD display. Ideal for bat surveys and other fieldwork conducted at dusk or nighttime, this camera delivers exceptional image quality. It offers manual zoom, stadiametric rangefinding, quick image adjustments, and image-in-image functionality, all designed for ease of use.

1815.41 $
Tax included

1475.94 $ net price (non-EU countries)

Anatolii Livashevskyi
Product Manager
Українська / Polski
+48721808900
+48721808900
Telegram +48721808900
[email protected]

Description

The Guide IR TK611 19mm Thermal Imaging Camera is a next-generation portable thermal imaging device from Guide, featuring a 640 x 480 pixel IR sensor and a 1280 x 960 HD display. Ideal for bat surveys and other fieldwork conducted at dusk or nighttime, this camera delivers exceptional image quality. It offers manual zoom, stadiametric rangefinding, quick image adjustments, and image-in-image functionality, all designed for ease of use. With a 50 Hz frame rate, the Guide IR TK611 captures sharp, dynamic thermal images, even during rapid movement. The universal tripod connection allows stable mounting, and its highly sensitive infrared metal detector and built-in laser provide target location up to 200 meters, even in challenging environments.

TrackIR App Compatibility enables remote control and customization via iOS and Android devices. The app supports adjustments in image quality, color palette switching, zoom, photo and video recording, hotspot tracking, and more, tailored to individual user preferences.

Weatherproof and Durable to IP66 standards, the Guide IR TK611 withstands drops up to 1 meter and operates seamlessly in both extreme heat and cold.



Included in the Box:

  • Guide TK611 Thermal Imaging Camera
  • USB Cable
  • HDMI Cable
  • Carry Case
  • Shoulder Strap
  • Lens Cleaning Cloth
  • Packaging Box
  • User Manual
  • 24-Month Warranty Card



Technical Specifications

  • Manufacturer: Guide
  • Product Code: 17438
  • Warranty: 24 months
  • Battery Life: 4.5 hours
  • Internal Memory: 16GB
  • Optical Magnification: 1.1x
  • Diopter Adjustment: -4 to +2
  • Focus: Manual
  • Pixel Size: 12μm
  • Weight: ≤ 490g
  • Display: 1280 x 960 LCOS
  • Power Supply: Built-in rechargeable battery
  • Human Detection Range: 800m
  • Objective Lens Diameter: 19mm
  • Model: TK611
  • Brand: Guide
  • Thermal Sensor: 640 x 480
  • Refresh Rate: 50 Hz
  • Field of View: 22.9° x 17.2°
  • Digital Zoom: 1-4x (smooth adjustment)
  • Waterproof Rating: IP66
