Guide TK621 Thermal Imaging Monocular

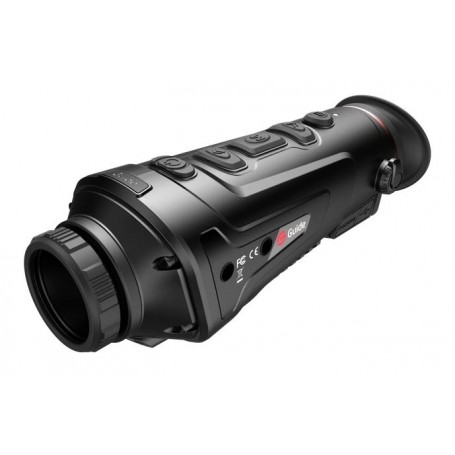

Guide IR TK621 25mm Thermal Imaging Camera is part of the latest generation of portable thermal cameras from Guide, featuring a 640 x 480 pixel IR sensor and a 1280 x 960 HD display. This thermal camera is ideal for bird and mammal surveys, as well as other fieldwork conducted at dusk or night. The user-friendly manual zoom, stadiametric rangefinder, quick image quality adjustment, and image-in-image functions simplify operation for the user.

2139.14 $
Tax included

1739.14 $ net price (non-EU countries)

Anatolii Livashevskyi
Product Manager
Українська / Polski
+48721808900
+48721808900
Telegram +48721808900
[email protected]

Description

Guide IR TK621 25mm Thermal Imaging Camera is part of the latest generation of portable thermal cameras from Guide, featuring a 640 x 480 pixel IR sensor and a 1280 x 960 HD display. This thermal camera is ideal for bird and mammal surveys, as well as other fieldwork conducted at dusk or night. The user-friendly manual zoom, stadiametric rangefinder, quick image quality adjustment, and image-in-image functions simplify operation for the user. With a high frame rate of 50 Hz, the Guide TrackIR Pro 25mm captures sharp thermal images, even during fast-paced movements. The universal tripod connection allows easy mounting on a tripod, ensuring stable vision.

The TrackIR app, available for both iOS and Android, enables remote control of the thermal camera and supports image quality adjustment, color palette switching, smooth zoom, photography, video recording, hotspot tracking, and more.

Rugged and Weather-Ready Design
The Guide IR TK621 25mm is IP66-rated for water resistance, withstands falls from up to 1 meter, and operates in both hot and cold environments.



Included in the Package:

  • Guide TK621 Thermal Camera
  • USB Cable
  • HDMI Cable
  • Carrying Case
  • Strap
  • Lens Cleaning Cloth
  • Box
  • User Manual
  • 24-Month Warranty Card



Technical Specifications

  • Manufacturer: Guide
  • Product Code: 17439
  • Warranty: 24 months
  • Battery Life: 4.5 hours
  • Internal Memory: 16GB
  • Optical Magnification: 1.5x
  • Diopter Adjustment: -4 to +2
  • Focus Adjustment: Manual
  • Pixel Size: 12μm
  • Weight: ≤490g
  • Display: 1280×960 LCOS
  • Power Supply: Built-in rechargeable battery
  • Human Detection Range: 1000m
  • Objective Lens Diameter: 25mm
  • Model: TK621
  • Brand: Guide
  • Thermal Sensor: 640 × 480
  • Refresh Rate: 50 Hz
  • Field of View: 17.5° × 13.1°
  • Digital Zoom: 1-4x (smooth adjustment)
  • Waterproof Rating: IP66
