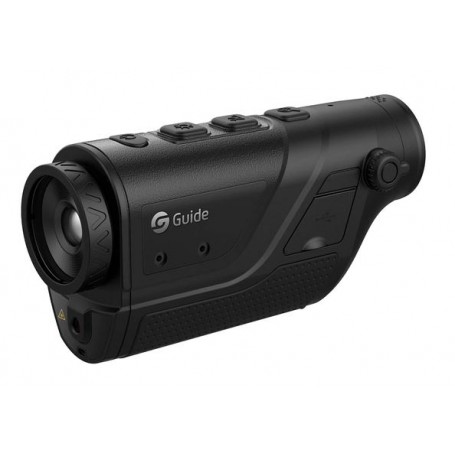

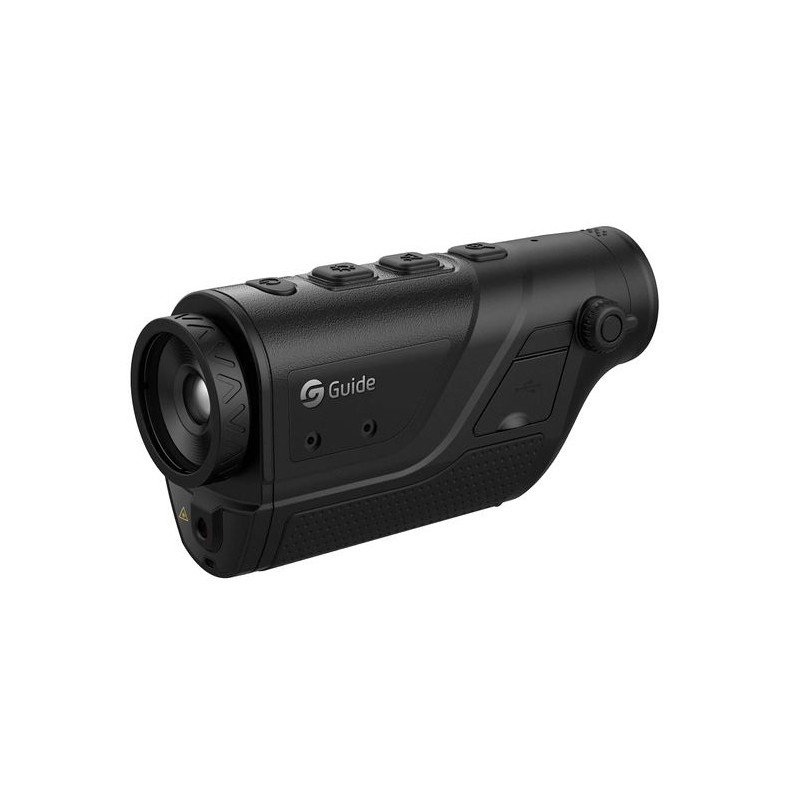

Guide TD210 Thermal Imaging Monocular

Designed for nighttime outdoor and law enforcement applications, the Guide TD210 Compact Thermal Imaging Monocular is a compact, high-sensitivity thermal imager, perfect for medium- and short-distance observation. Equipped with a high-sensitivity VOX infrared detector, 256x192px IR resolution, 10mm/F1.0 focal length, and electric focus, it offers a clear and user-friendly experience. Features include 1x-2x digital zoom, Picture-in-Picture mode, six thermal color palettes, three observation modes, a 200m laser indicator, and built-in Wi-Fi.

572.52 $
Tax included

465.46 $ net price (non-EU countries)

Anatolii Livashevskyi
Product Manager
Українська / Polski
+48721808900
+48721808900
Telegram +48721808900
[email protected]

Description

Designed for nighttime outdoor and law enforcement applications, the Guide TD210 Compact Thermal Imaging Monocular is a compact, high-sensitivity thermal imager, perfect for medium- and short-distance observation. Equipped with a high-sensitivity VOX infrared detector, 256x192px IR resolution, 10mm/F1.0 focal length, and electric focus, it offers a clear and user-friendly experience. Features include 1x-2x digital zoom, Picture-in-Picture mode, six thermal color palettes, three observation modes, a 200m laser indicator, and built-in Wi-Fi. The 1280 x 960px high-resolution LCOS display enhances imaging quality, making it ideal for prolonged outdoor use. Housed in an IP66-rated casing, the Guide TD210 operates in temperatures from -30°C to +50°C and provides up to eight hours of use.

Guide TD210 Compact Thermal Imaging Monocular Key Features:

  • Lightweight, handheld design for short- to medium-distance observation
  • High-sensitivity VOX infrared detector
  • IR resolution: 256x192px
  • 10mm/F1.0 focal length
  • Electric focus
  • 1280 x 960px high-resolution LCOS display with vivid color rendering for viewing comfort
  • Six selectable thermal color palettes
  • One-touch target location with instant identification
  • Three observation modes: Natural, Enhance, and Highlight
  • Digital zoom range: 1x-2x
  • Picture-in-Picture mode for enhanced target view
  • 200m laser indicator
  • Built-in Wi-Fi for streaming to a smartphone or tablet with the Guide app
  • Easy, one-handed operation and quiet focus
  • IP66-rated casing for durability in challenging conditions
  • Operating temperature: -30°C to +50°C
  • Eight hours of operating time with fast, two-second start-up



Included in the Package:

  • GUIDE TD210 Device
  • Power Adapter
  • USB Cable
  • Video Cable
  • 18650 Battery
  • Lens Cover
  • Wrist Strap
  • Soft Carrying Case
  • User Manual



Technical Specifications

  • Manufacturer: Guide
  • Product Code: 14040
  • Battery Life: 6 hours
  • Internal Memory: None
  • Pixel Size: 12µm
  • Weight: 360g
  • Device Dimensions: 14.3 x 4.5 x 7.3 cm
  • Display: 1280 x 960 LCOS
  • Power Supply: 1x 18650 battery
  • Objective Lens Diameter: 10mm
  • Model: TD210
  • Brand: Guide
  • Thermal Sensor: 256 × 192, 12 μm
  • Refresh Rate: 50 Hz
  • Field of View: 17.1°×13.0°
  • Digital Zoom: 2x
  • Waterproof Rating: IP67
