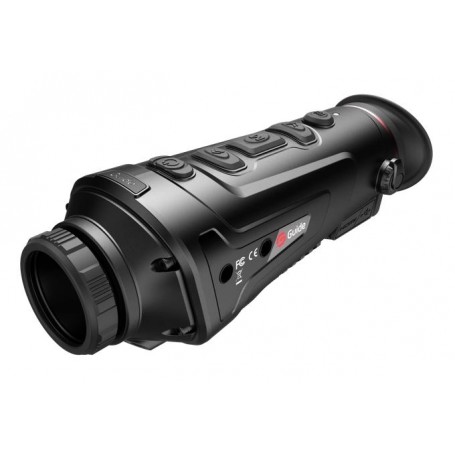

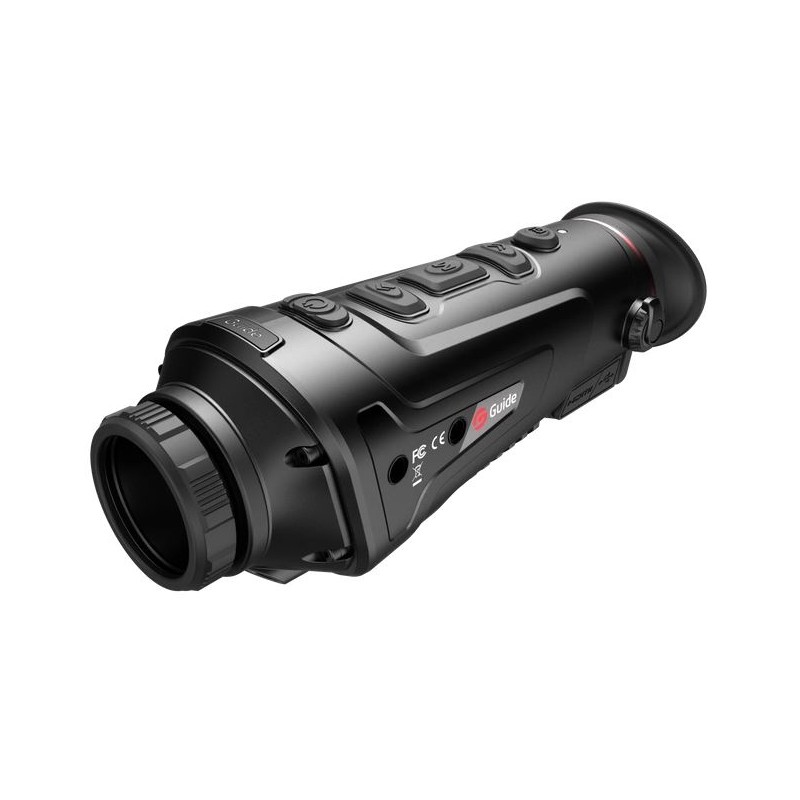

Guide TK431 35mm Thermal Imaging Monocular

Enjoy up to 8x digital zoom for enhanced focus on small targets from greater distances, ensuring precise observation and clarity.

1491.67 $
Tax included

1212.74 $ net price (non-EU countries)

Anatolii Livashevskyi
Product Manager
Українська / Polski
+48721808900
+48721808900
Telegram +48721808900
[email protected]

Description

1094 yd High-precision Detection

Variable Digital Zoom

Enjoy up to 8x digital zoom for enhanced focus on small targets from greater distances, ensuring precise observation and clarity.

Six Color Palettes

Choose from White Hot, Black Hot, Iron Red, Blue Hot, Green Hot, and Adjustable Red Hot. Instantly identify target location with a one-button switch, enabling effective all-weather observation.

Connected APP

Connect your smartphone to your monocular using the TargetIR APP via Wi-Fi, allowing you to share captured moments in real time.



Included in the Package:

  • Guide TK431 Thermal Imager
  • USB Cable
  • HDMI Cable
  • Carrying Case
  • Strap
  • Lens Cloth
  • Box
  • User Manual
  • 24-month Warranty Card



Technical Specifications

  • Manufacturer: Guide
  • Product Code: 17437
  • Warranty: 24 months
  • Battery Life: 5 hours
  • Internal Memory: 16GB
  • Optical Magnification: 2.3x
  • Diopter Adjustment: -4~+2
  • Focus: Manual
  • Pixel Size: 17µm
  • Weight: 535g
  • Display: 1280×960 LCOS
  • Power Supply: Built-in battery
  • Human Detection Range: 1000m
  • Objective Lens Diameter: 35mm
  • Model: TK431
  • Brand: Guide
  • Thermal Sensor Resolution: 400x300
  • Refresh Rate: 50 Hz
  • Field of View: 11.1°×8.3°
  • Digital Zoom: 1-4x (smooth transition)
  • Waterproof Rating: IP66
