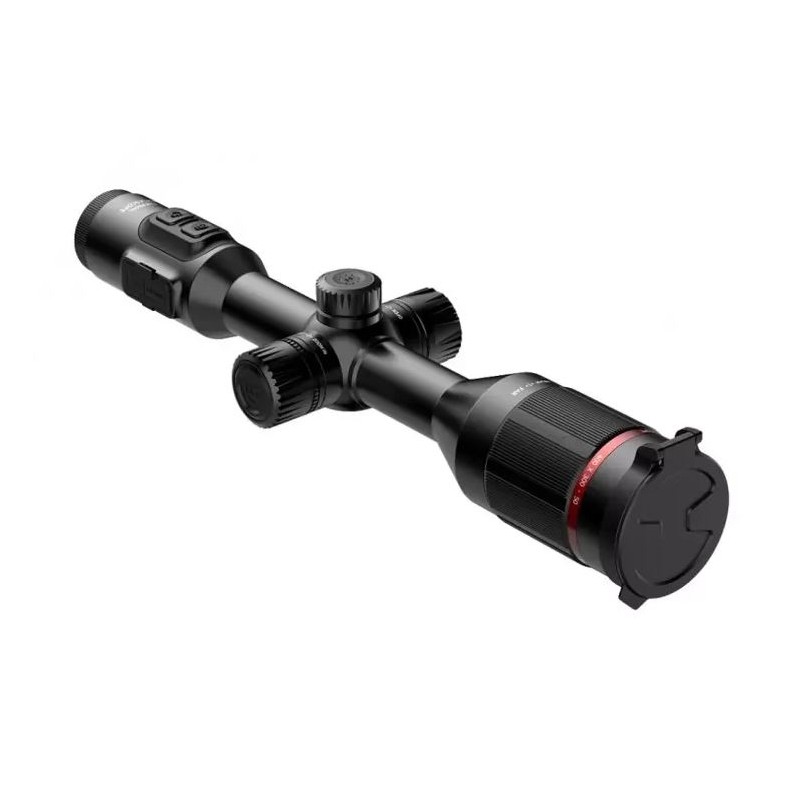

Guide TU450 Thermal Imaging Scope

The Guide TU Thermal Scope combines the classic appearance of a daylight scope with advanced thermal imaging technology, designed for long hunting sessions. The TU450 model features a 400x300 high-sensitivity thermal detector, a 50mm lens, and 10 configurable zero calibration settings, making it convenient to use across multiple devices.

Features:

• 400x300 IR Resolution
• Human Detection Range: up to 1400m
• 50mm Focal Length
• Field of View: 7.78°×5.84°
• Magnification: 3.2× to 12.8×

Full-color OLED Display

The 1024 x 768 OLED display offers high contrast and enhanced image quality for comfortable viewing.

Smooth Digital Zoom

Quickly zoom in and out on targets by pressing and holding the up/down buttons, allowing for precise and flexible targeting.

Multiple Color Palettes

Choose from six color palettes: White Hot, Black Hot, Red Hot, Green Hot, Iron Red, and Blue Heat. Switch with one button to identify targets instantly in all weather conditions.

Professional Hunter-Focused Design

The graticule density zooms along with the image, maintaining reticle line width at any magnification without refocusing. The design improves accuracy and includes three scene modes—Enhance, Highlight, and Natural—for adaptive adjustments based on the environment.

Photo and Video Recording

Capture moments with built-in photo and video recording capabilities. Connect via Wi-Fi to the app to transmit and share images or videos instantly.

Extended 10-hour Battery Life

Equipped with a dual battery system—an internal battery plus a replaceable external battery—allowing up to 10 hours of continuous operation without interruption.

Rugged IP67 Protection

Rated IP67 for water, dust, and impact resistance, and designed to operate in temperatures from -30°C to 50°C. Certified with UN38.3 battery certification, RoHS, CE, and FCC.

Included in the Box:

• Guide TU450 Thermal Scope
• Two 30mm scope mounts
• USB Cable
• Charger
• Additional Battery
• Strap
• Lens Cloth
• Carry Case
• User Manual
• 24-month Warranty Card

Specifications

• Detector Resolution: 400 × 300, 17 μm
• Spectral Range: 8～14μm
• NETD: ≤30mk @ F1 25℃
• Lens: 50mm F1.2, Manual Focus
• Field of View: 7.78° × 5.84°
• Frame Rate: 50Hz
• Zoom: Optical 3.2x; Digital 1 – 4x
• Display: 0.39'' OLED, 1024 × 768
• Eyepiece: Exit pupil distance ≥ 48 mm, Diopter ± 4
• Video Output: Digital
• Memory: 16 GB

Environmental

• Operating Temperature: -30 ℃ to 50 ℃
• Storage Temperature: -45℃ to 70 ℃
• Humidity: 10% to 95%, non-condensing
• Shock Resistance: 500 G at 1 ms half sine pulse
• Vibration: 10 Hz - 150 Hz, 0.15 mm amplitude
• Encapsulation: IP67

Physical

• Weight: ≤950 g
• Dimensions: 367 × 107 × 69 mm
