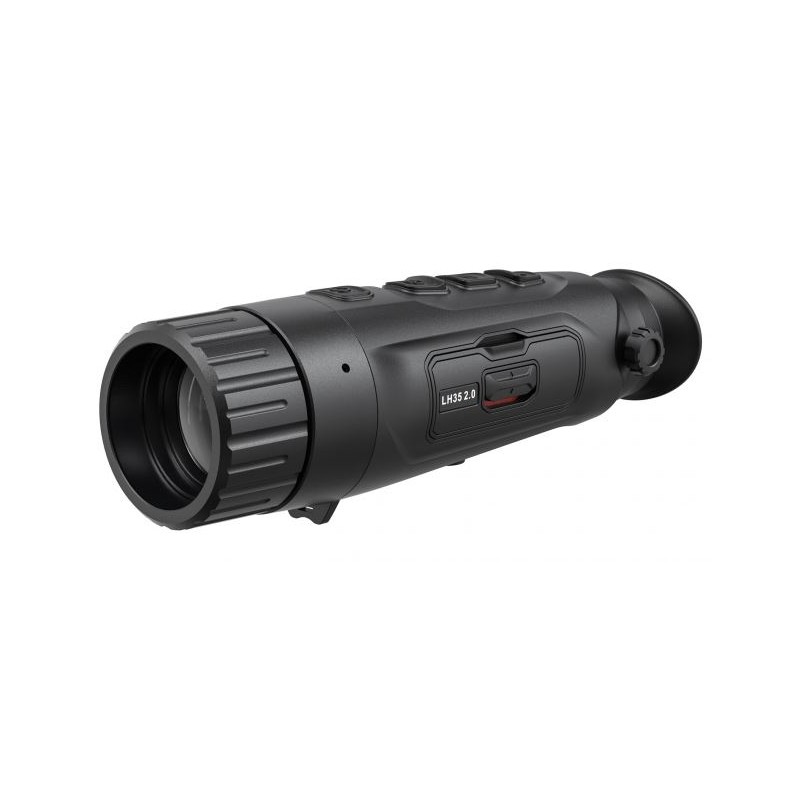

Hikvision Hikmicro Lynx 2.0 LH35 thermal imaging camera

HIKMICRO, a leading innovator in industrial cameras and alarm systems, introduces the next generation of thermal imaging cameras: the HIKMICRO Lynx LH 2.0. Designed for precision and versatility, this camera delivers exceptional performance across various conditions.

Key Features of the HIKMICRO Lynx 2.0 LH35 Thermal Imaging Camera

• Exceptional Detection Range: Detect targets up to 1800 meters away.
• High Sensitivity Sensor: A cutting-edge sensor with thermal sensitivity below 20 mK ensures clear differentiation of heat signatures.
• OLED Display: The 1024 × 768 resolution OLED screen provides sharp and vibrant visuals.
• Advanced Zoom Capabilities: Optical zoom of 3.3× combined with 8× digital zoom delivers up to 26.4× magnification.
• Media Recording: Integrated 16 GB memory for storing images and videos.
• User-Friendly Design: Large, glove-compatible buttons for effortless operation.
• Customizable Display Modes: Four color palettes to adapt to user preferences.
• Durable Build: IP67-rated housing offers water and dust resistance.
• Extended Battery Life: Rechargeable Li-Ion battery supports up to 6.5 hours of operation, with USB-C compatibility for external power sources.

Unmatched Performance and Durability

At the heart of the Lynx 2.0 LH35 is a 12 μm VOx sensor, enabling it to deliver unparalleled clarity in thermal imaging. This advanced technology ensures accurate target identification, even in complete darkness. The camera’s robust build, meeting IP67 standards, ensures reliability in challenging weather conditions such as rain, snow, or high humidity.

The optical zoom is complemented by an 8× digital zoom, allowing users to focus on minute details from great distances. Its lightweight and ergonomic design make it perfect for prolonged use during outdoor adventures.

Built-in Rangefinder and Versatile Imaging Modes

The Lynx 2.0 cameras include a static rangefinder, simplifying distance estimation to targets by applying basic size data. Users can effortlessly calculate distances, making it ideal for activities like hunting or wildlife observation.

The four imaging modes include:

• White Hot: Warm areas appear bright.
• Black Hot: Warm areas appear dark.
• Red Hot: Highlights warmest elements in red over a “White Hot” base.
• Fusion: A gradient from white to purple indicates temperature variations.

Efficient and Long-lasting Power System

Designed for extended use, the replaceable Li-Ion battery offers up to 6.5 hours of operation. The device can also be powered via USB-C for additional flexibility, ensuring uninterrupted performance during long sessions.

Technical Specifications

• Digital Zoom: 8×
• Display Resolution: 1024 × 768 px
• Internal Storage: 16 GB
• Field of View at 100 m: 13 m
• Battery Life: Up to 6.5 hours
• Detection Range: 1800 m
• Minimum Focusing Distance: 3.5 m
• Objective Size: 35 mm (F1.0)
• Refresh Rate: 50 Hz
• Thermal Sensitivity: ≤ 20 mK
• IP Rating: IP67
• Dimensions: 193 × 62 × 56 mm
• Weight: 338 g

Manufacturer Details

• Manufacturer: HIKVISION, China
• EAN: 6974004646813
• Supplier Symbol: 308101320
