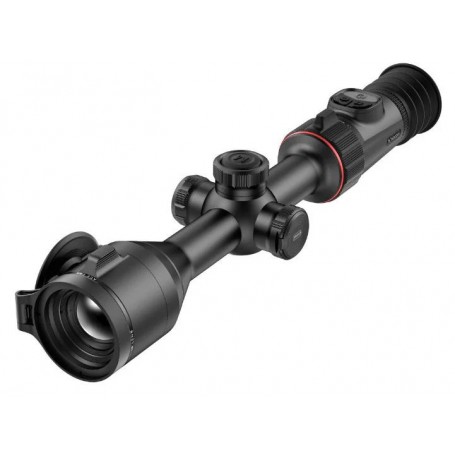

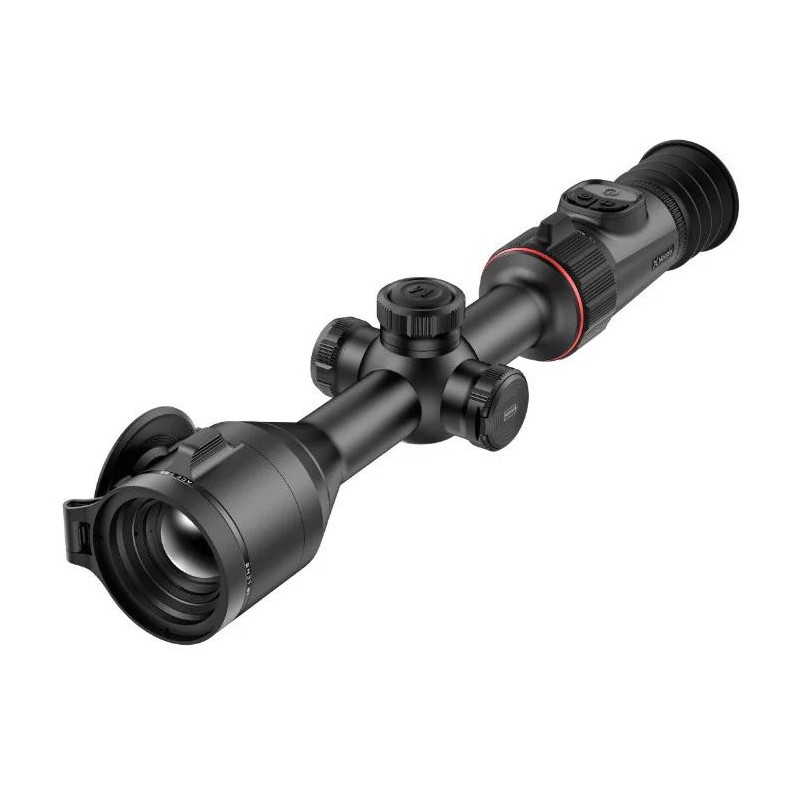

Nocpix Ace L35 Thermal Scope

The ACE series is a premium thermal riflescope designed for versatile and demanding outdoor use. Equipped with a self-developed high-resolution thermal sensor and enhanced by Reality+ and Vision+ technologies, it delivers outstanding image quality and performance.

Operating without the need for external light sources, the ACE series excels in all lighting and weather conditions—day or night, rain, snow, fog, or haze. Its infrared thermal imaging capabilities allow users to detect targets even behind obstacles like branches and bushes, while remaining impervious to strong light interference. With flexible battery options that support extended operation, the ACE series is an ideal companion for low-visibility hunting, observation, and tactical positioning in challenging environments.

Key Features

• 18mK NETD: High thermal sensitivity for precise target detection.
• Ocular Zoom: Enhanced focus and accuracy on distant targets.
• Recoil Activated Video Function: Automatically records video when your weapon recoils, capturing critical moments seamlessly.
• Gallery Function: Built-in memory supports photo and video capture with easy access for review.
• Dual Power Supply System: Built-in battery and replaceable 18650 battery ensure extended usage.
• Built-in Wi-Fi Module: Supports APP connection for remote operation and media sharing.
• Advanced Navigation Tools: Built-in compass and motion sensor for situational awareness.
• Picture-in-Picture (PIP) Function: View magnified details without losing the overall scene.
• Pixel Defect Correction: Maintains clear and reliable imaging over time.
• User-Friendly Interface: Simplifies operation, letting you focus on your objectives.

The ACE series is built for professionals who require precision, durability, and reliability in their thermal imaging equipment. With its exceptional features and robust design, it sets a new standard for thermal riflescopes.

Specifications

• Type: Vox
• Resolution: 384 x 288
• Pixel Size: 12 μm
• NETD: ≤18mK
• Frame Rate: 60Hz
• Objective Lens: 35mm F0.9
• Field of View: 7.5° x 5.7°
• Field of View (Linear): 13.2m x 9.9m
• Magnification: 4x to 16x
• Detection Range: 1800 meters
• Eye Relief: 50mm
• Exit Pupil Diameter: 8mm
• Diopter Adjustment: -5 to +5
• Display Type: AMOLED
• Display Resolution: 2560 x 2560
• Battery: Built-in 4000mAh + Replaceable 18650 battery
• Maximum Operating Time: 7 hours
• External Power Supply: 5V (Type C)
• Wi-Fi/APP Compatibility: Yes
• Microphone: Yes
• Photo/Video Recorder: Yes
• Memory Capacity: 64GB
• Recoil Activated Video: Yes
• IP Rating: IP67 (water and dust resistant)
• Maximum Recoil Power: 6000J
• Operating Temperature Range: -20°C to +50°C
• Compatible Mount: 30mm
• Weight: 1050g / 37.04oz
• Dimensions: 350 x 90 x 62mm (13.78 x 3.54 x 2.44 inches)
