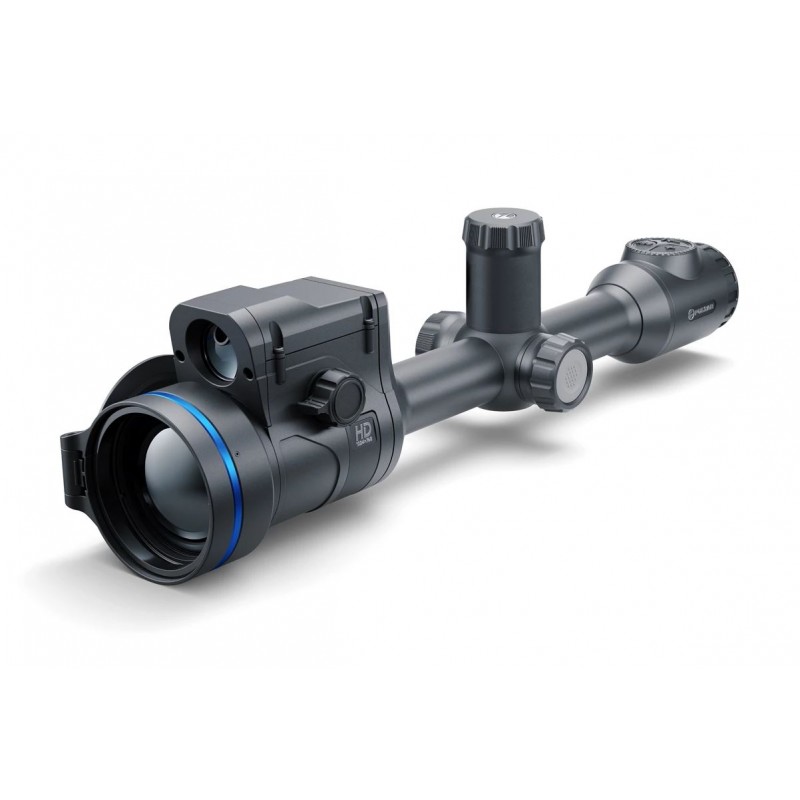

Pulsar Thermion 2 LRF XL60 Thermal Imaging Riflescope

Premium HD-Class Optics

The optics of the Pulsar Thermion 2 LRF series deliver unparalleled image detail. With 60 mm lenses capturing even the faintest heat signals, the Thermion 2 LRF 60 is optimized for long-range applications.

High-Definition Thermal Sensor

Sharp and richly contrasted thermal imaging allows enhanced identification of animals, their extremities, and fine environmental details like branches, leaves, and terrain.

Extreme Image Detail at High Zoom

Variable magnification ensures precise focus and object recognition at significant distances. Models such as the Thermion 2 LRF XL50 and XL60 maintain HD image detail across the entire magnification range. The zoom adjusts either in 2x steps or continuously, allowing a customized field of view and magnification ratio for various scenarios.

Precise Laser Rangefinding

Accurate target distance is essential for making informed decisions. The integrated laser rangefinder, with an effective range of up to 800 meters, is seamlessly built into the slim design of the riflescope. Both the receiver and emitter are aligned within a single optical channel for precision.

Integrated Ballistic Calculator for Long-Range Shooting

The built-in laser rangefinder works with an internal ballistics algorithm to calculate precise points of aim for long-distance shooting. By creating a ballistic profile and uploading it via the Stream Vision Ballistics App, the Thermion 2 LRF becomes a powerful tool for accurate, long-range aiming.

Wide Field of View for Easy Scanning

The Thermion 2 LRF series offers field-of-view options tailored to your needs, from 7.3° in the XG60 to 14° in the XL50. This flexibility ensures an optimal balance of FOV and magnification for every situation.

Clear Wide-Angle Eyepiece

The upgraded wide-angle eyepiece is designed for high-resolution micro-displays, providing a clearer view and more comfortable observation with an 8 mm exit pupil.

Unmatched Eye Relief at 65 mm

Perfect for long-range use and high-caliber ammunition, the 65 mm eye relief offers enhanced safety and flawless screen visualization, setting a new standard in its class.

Ambidextrous Lens Focusing

The internal focusing mechanism ensures a sharp image at any range. Ergonomic focusing wheels on both sides make it user-friendly for left- and right-handed operators.

Wireless Remote Control

The Pulsar BT wireless Bluetooth remote control replicates all regular functions with ergonomic buttons designed for gloved or bare-handed use. Minimal movement is required to control the riflescope, allowing users to stay focused on their target.

Additional Features

• 10 shooting profiles with 100 zeroing distances.
• Wi-Fi connectivity for iOS and Android devices.
• 64 GB memory for photo and video recording.
• Picture-in-picture mode for high-precision aiming.
• 10 reticle shapes and 9 color modes for customization.
• Waterproof with IPX7 submersion rating.
• Compatible with standard 30 mm rings.
• Ready for .375H&H caliber.
• Customizable user modes for tailored image adjustments.
• Combined dual battery system for extended use.
• Multiple color palettes for different scenarios.
• Operates reliably in extreme temperatures from -25°C to +50°C.

Main Specifications

Sensor

• @ 12 µm 1024x768 resolution
• Uncooled sensor with a pixel pitch of 12 µm
• NETD less than 35 mK
• Frame rate of 50 Hz

Objective Lens

• F60/1.1 lens
• Magnification range from 2.5x to 20x
• Field of View (HxV): 11.7 degrees, equivalent to 20.5 m at 100 m

Detection Range

• Effective detection up to 2800 m

Reticle

• Click range (H/V): 3200/3200 mm at 100 m
• Click value: 16 mm at 2.5x, 8 mm at 5x, 4 mm at 10x, and 2 mm at 20x magnification
• 10 preloaded reticle options

Display

• Micro-OLED display with a resolution of 2560x2560 pixels

Laser Rangefinder

• Maximum measuring range: 800 m
• Measurement accuracy: ±1 m
• Safety class: IEC 60825-1:2014 Class 1
• Wavelength: 905 nm

Video Recorder

• Video and photo resolution: 1280x960 pixels
• Formats: .mp4 for videos and .jpg for photos
• Built-in memory: 64 GB

Bluetooth

• BLE 4.2 wireless protocol
• IEEE 802.15.1 standard
• Operates at 2.4 GHz

Wi-Fi

• Wireless standard: IEEE 802.11 b/g/n/ac (WPA)
• Frequencies supported: 2.4 GHz and 5 GHz

Environmental Characteristics

• Waterproof with IPX7 rating (per IEC60529)
• Operating temperature range: -25°C to +50°C

Connections and Compatibilities

• Compatible with standard 30 mm rings
• Supports applications: Stream Vision 2 and Stream Vision Ballistics
• Shock resistance: Compatible with 12-gauge smooth-bore rifles
• Maximum recoil power on rifled weapons: 6000 Joules

Weight and Size

• Body material: Aluminum alloy
• Dimensions: 442 mm x 78 mm x 98 mm
• Weight: 1.2 kg

SKU
76575
