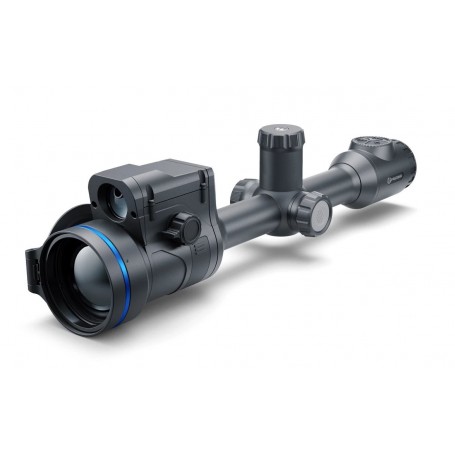

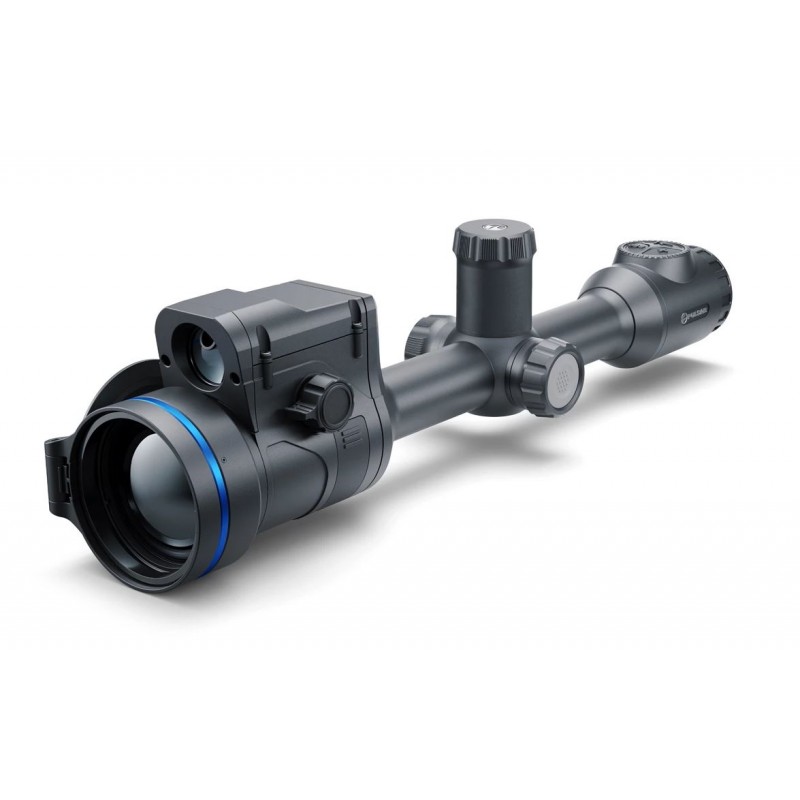

Pulsar Thermion 2 LRF XP60 Thermal Imaging Riflescope

Premium HD-Class Optics

The optics of the Pulsar Thermion 2 LRF series are engineered to provide exceptional image detail. The 60 mm lens captures the smallest heat signals, making it ideal for long-range applications.

High-Definition Thermal Sensor

Sharp and richly contrasted thermal imaging enhances the identification of animals, their extremities, and fine details such as branches, grass, and terrain.

Extreme Image Detail at High Zoom

Variable magnification ensures excellent focus and object recognition at significant distances. The HD resolution models, including the Thermion 2 LRF XL50 and XL60, maintain sharp image detail across the entire magnification range. Zoom adjustments can be made in 2x increments or continuously for a customized field of view and magnification ratio tailored to specific scenarios.

Precise Laser Rangefinding

Accurate distance measurement is crucial for informed decision-making. The compact laser rangefinder, integrated seamlessly into the slim riflescope design, has a range of up to 800 meters. Both the receiver and emitter are aligned within a single optical channel for optimal precision.

Integrated Ballistic Calculator

The Thermion 2 LRF features an advanced ballistic calculator for precise long-range shooting. The built-in laser rangefinder provides exact distance to the target, while the internal algorithm calculates the suggested point of aim (POA). By creating a ballistic profile and uploading it through the Stream Vision Ballistics App, the Thermion 2 LRF becomes a highly efficient tool for long-distance aiming.

Wide Field of View

The Thermion 2 LRF series offers flexible field-of-view options. Models range from 7.3° in the Thermion 2 LRF XG60 to 14° in the XL50, ensuring optimal field coverage and magnification ratios for various needs.

Clear Wide-Angle Eyepiece

Equipped with an upgraded wide-angle eyepiece, the Thermion 2 LRF 60 provides a clearer and more comfortable viewing experience. Its optimized optics, designed for high-resolution micro-displays, include an 8 mm exit pupil for improved observation.

Class-Leading Eye Relief

With a 65 mm eye relief, the Thermion 2 LRF 60 is suitable for high-caliber ammunition and offers enhanced safety and screen clarity, making it one of the safest options in its class.

Ambidextrous Lens Focusing

The internal focusing mechanism ensures sharp images at any range. Ergonomic focusing wheels on both sides allow easy adjustments for left- and right-handed users.

Wireless Remote Control

The included Pulsar BT Bluetooth remote control mirrors the standard buttons and features ergonomic designs for intuitive use. Buttons and encoders are positioned for easy operation with or without gloves, allowing minimal movement to control the riflescope. The remote can be conveniently mounted on the fore-end or rifle butt for maximum focus on the hunting process.

Additional Features

• 10 shooting profiles and 100 zeroing distances
• Wi-Fi connectivity for iOS and Android devices
• 64 GB built-in memory for photo and video recording
• High-precision aiming with Picture-in-Picture mode
• 10 reticle shapes in 9 color modes
• IPX7 waterproof rating, allowing submersion
• Mountable on standard 30 mm rings
• Compatible with .375H&H caliber
• Customizable user modes for tailored image settings
• Combined dual battery system for extended operation
• Multiple color palettes for diverse needs
• Reliable performance in temperatures ranging from -25°C to +50°C

Main Specifications

Sensor

• Resolution: 640x480 pixels with a 17 µm pixel pitch
• Type: Uncooled
• NETD: < 25 mK
• Frame rate: 50 Hz

Objective Lens

• F60/1.1 lens
• Magnification range: 3x to 24x
• Field of View: 14.4° / 18.1 m at 100 m

Detection Range

• Capable of detecting objects up to 2000 m

Reticle

• Click range (H/V): 2840 / 2840 mm at 100 m
• Click value: 14 mm at 3x, 7 mm at 6x, 3.5 mm at 12x, 1.75 mm at 24x magnification
• Number of preloaded reticles: 10

Display

• Micro-OLED display with a resolution of 2560x2560 pixels

Laser Rangefinder

• Maximum measuring range: 800 m
• Measurement accuracy: ± 1 m
• Safety class: IEC 60825-1:2014 Class 1
• Wavelength: 905 nm

Video Recorder

• Video/photo resolution: 1280x960 pixels
• Formats: .mp4 for video and .jpg for photos
• Built-in memory: 64 GB

Bluetooth

• Protocol: BLE 4.2
• Standard: IEEE 802.15.1
• Frequency: 2.4 GHz

Wi-Fi

• Protocol: Wi-Fi
• Standard: IEEE 802.11 b/g/n/ac (WPA)
• Frequencies: 2.4 GHz and 5 GHz

Environmental Characteristics

• Waterproof rating: IPX7 (protected against water immersion)
• Operating temperature: -25°C to +50°C

Connections and Compatibilities

• Mount compatibility: Standard 30 mm rings
• Supported applications: Stream Vision 2, Stream Vision Ballistics
• Shock resistance: Suitable for 12-gauge smooth-bore rifles
• Maximum recoil power: 6000 Joules

Weight and Size

• Body material: Aluminum alloy
• Dimensions: 442 mm x 78 mm x 98 mm
• Weight: 1.2 kg

SKU
76576
