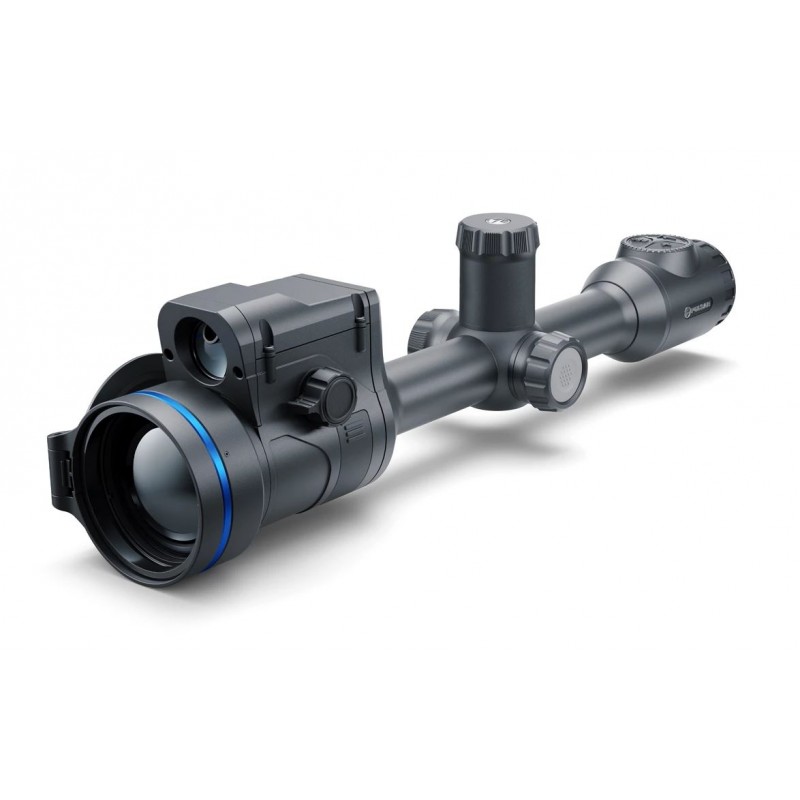

Pulsar Thermion 2 LRF XG60 Thermal Imaging Riflescope

Premium HD-Class Optics

The Pulsar Thermion 2 LRF series delivers exceptional image clarity with its top-class optics. The 60 mm lenses are designed to capture even the faintest heat signals, making them ideal for long-range applications.

High-Definition Thermal Sensor

The thermal imaging system offers sharp, high-contrast visuals, allowing precise identification of animals, their extremities, and minute environmental details such as branches, grass, and terrain.

Extreme Image Detail on High Zoom

With variable magnification, focus and object recognition remain sharp even at significant distances. The Thermion 2 LRF XL50 and XL60 models maintain detailed HD resolution across their entire magnification range. Zoom can be adjusted in 2x steps or continuously for a tailored field of view and magnification ratio suitable for any scenario.

Precise Laser Rangefinding

Accurately determining target distance is crucial for effective decision-making. The compact laser rangefinder, integrated seamlessly into the riflescope's slim design, offers a range of up to 800 meters. The receiver and emitter are aligned within a single optical channel for optimal precision.

Integrated Ballistic Calculator for Long-Range Shooting

The built-in laser rangefinder provides exact distance measurements, while the advanced internal ballistics algorithm calculates the ideal point of aim (POA). By creating and uploading a ballistic profile via the Stream Vision Ballistics App, the Thermion 2 LRF transforms into a highly efficient tool for long-distance accuracy.

Wide Field of View for Easy Scanning

The Thermion 2 LRF series offers flexibility in field-of-view options, ranging from 7.3° in the Thermion 2 LRF XG60 to 14° in the XL50. These options ensure an optimal combination of field coverage and magnification for diverse applications.

Clear Wide-Angle Eyepiece

An upgraded wide-angle eyepiece enhances clarity and comfort, providing a superior viewing experience with an 8 mm exit pupil. The design is optimized for high-resolution micro-displays, ensuring smooth observation.

Unmatched Eye Relief at 65 mm

With 65 mm eye relief, this riflescope provides enhanced safety and impeccable screen visualization. It is suitable for high-caliber ammunition and offers unmatched comfort for extended use.

High-Precision Ambidextrous Lens Focusing

The internal focusing mechanism ensures crisp images at any range. Ergonomic focusing wheels located on both sides make it easy to adjust, whether you are left- or right-handed.

Wireless Remote Control

The Pulsar BT wireless remote control replicates standard functionality, providing intuitive operation. Its ergonomic design ensures easy use with bare or gloved hands. The remote can be conveniently mounted on the fore-end or rifle butt for effortless control, allowing users to maintain focus on the target.

Additional Features

• 10 shooting profiles with 100 zeroing distances
• Wi-Fi connectivity for iOS and Android devices
• 64 GB internal memory for photo and video recording
• Picture-in-picture mode for precise aiming
• 10 reticle shapes available in 9 color modes
• IPX7 waterproof rating for submersion protection
• Compatible with standard 30 mm mounting rings
• Supports calibers up to .375 H&H
• Customizable user modes for personalized image settings
• Dual battery system for extended runtime
• Multiple color palettes for varying conditions
• Reliable operation in extreme temperatures from -25°C to +50°C

Main Specifications

Sensor

• Resolution: 640x480 pixels, 12 µm pixel pitch
• Type: Uncooled
• NETD: < 40 mK
• Frame rate: 50 Hz

Objective Lens

• F60/1.1 lens
• Magnification range: 4x to 32x
• Field of View: 7.3° / 12.8 m at 100 m

Detection Range

• Effective detection range up to 2800 m

Reticle

• Click range (H/V): 2000 / 2000 mm at 100 m
• Click value: 10 mm at 4x, 5 mm at 8x, 2.5 mm at 16x, 1.25 mm at 32x magnification
• Number of preloaded reticles: 10

Display

• Micro-OLED with 2560x2560 resolution

Laser Rangefinder

• Maximum measuring range: 800 m
• Measurement accuracy: ±1 m
• Safety class: IEC 60825-1:2014 Class 1
• Wavelength: 905 nm

Video Recorder

• Video/photo resolution: 1280x960 pixels
• Formats: .mp4 for video and .jpg for photos
• Built-in memory: 64 GB

Bluetooth

• Protocol: BLE 4.2
• Standard: IEEE 802.15.1
• Frequency: 2.4 GHz

Wi-Fi

• Protocol: Wi-Fi
• Standard: IEEE 802.11 b/g/n/ac (WPA)
• Frequencies supported: 2.4 GHz and 5 GHz

Environmental Characteristics

• Waterproof rating: IPX7 (protection against water immersion)
• Operating temperature range: -25°C to +50°C

Connections and Compatibilities

• Mount compatibility: Standard 30 mm rings
• Supported applications: Stream Vision 2 and Stream Vision Ballistics
• Shock resistance: Suitable for 12-gauge smooth-bore rifles
• Maximum recoil power: 6000 Joules

Weight and Size

• Body material: Aluminum alloy
• Dimensions: 442 mm x 78 mm x 98 mm
• Weight: 1.2 kg

SKU
76577
