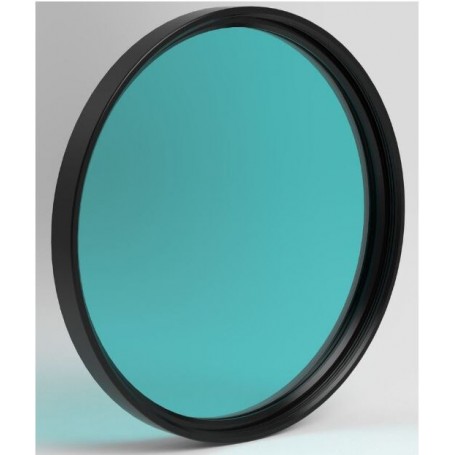

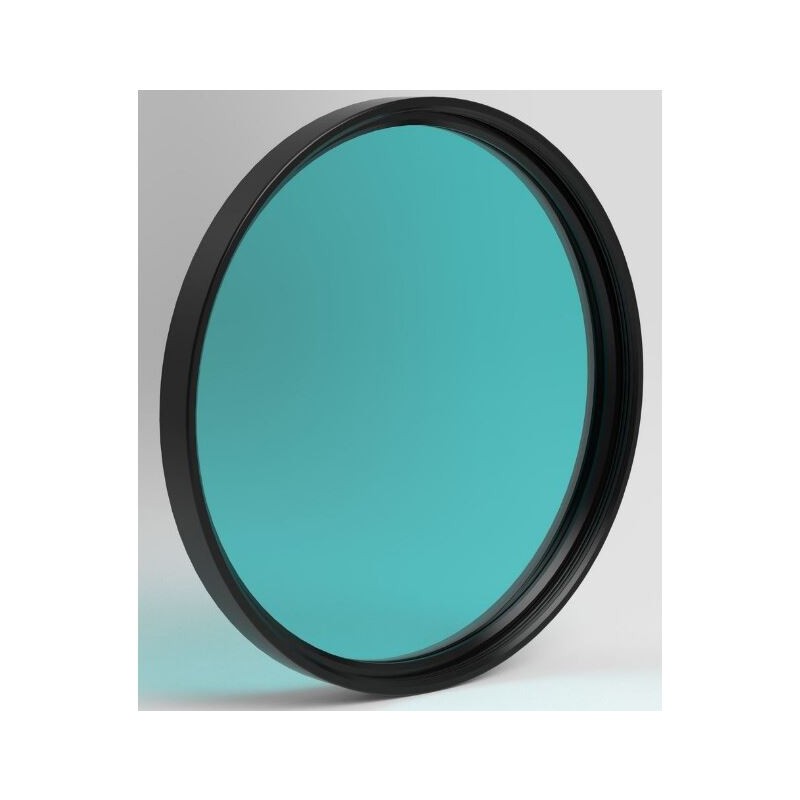

Astronomik Filters CLS M55 (66932)

The Astronomik CLS is an affordable filter designed for black-and-white photography, CCD imaging, and visual observation of nebulae, galaxies, and star clusters. It is compatible with astronomical instruments of any size. Since 2008, the filters have been redesigned to eliminate halos and unwanted reflections, ensuring improved performance.

Light Pollution Reduction
This filter effectively blocks the spectral lines of mercury and sodium-vapor lamps while allowing most visible light and H-alpha emissions to pass. It is ideal for reducing light pollution, preserving important emission lines, and enhancing the visibility of deep-sky objects.

Optimized Performance
The Astronomik CLS filter is optimized for aperture ratios between 1:3 and 1:15. Transmission losses and chromatic distortions are minimal unless used with extremely bright aperture ratios (e.g., 1:2 or higher). It is suitable for telescopes of all aperture sizes.

Applications

• Photography: Excellent for DSLR cameras (modified or unmodified), CCD cameras, and black-and-white film photography.
• Visual Observation: Effective in dark-sky conditions to reduce light pollution from artificial sources.

Technical Specifications

• 92% transmission at 486nm (H-beta)
• 92% transmission at 496nm (OIII)
• 92% transmission at 501nm (OIII)
• 97% transmission at 656nm (H-alpha)
• Passes light from 450–540nm and beyond 650nm.
• Glass thickness: 1mm with multiple coatings for durability.

Build Quality and Compatibility
The filter features an aluminium mount in an M55 clip-filter frame format. It is compatible with Pentax systems and resistant to scratches, humidity, and aging effects. Astronomik CLS filters are parfocal with other Astronomik filters, ensuring no reduction in optical performance. They are delivered in a durable plastic storage box for long-term protection.
