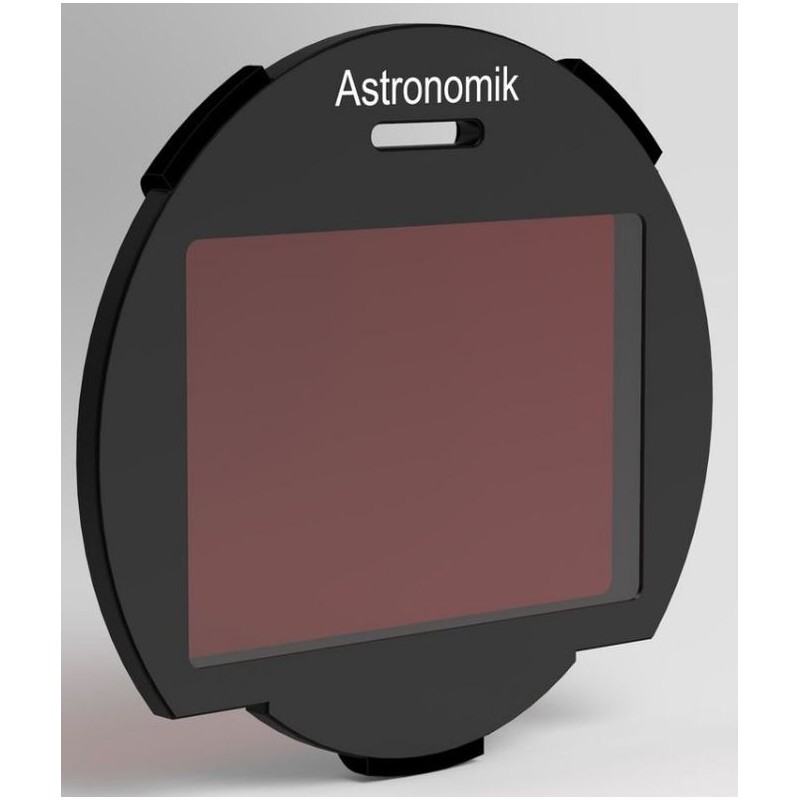

Astronomik Filters H-alpha 12nm CCD Clip Canon EOS R XL (67075)

The Astronomik H-alpha 12nm filter is a high-performance narrowband filter designed for CCD astrophotography. It allows H-alpha light emitted by nebulae to pass through while blocking nearly all other wavelengths where CCD sensors are sensitive. This filter is optimized for fast optics and achieves a high transmission rate of up to 99%, making it ideal for capturing detailed and high-contrast images of hydrogen nebulae and other deep-sky objects.

2981.79 kn
Tax included

2424.22 kn net price (non-EU countries)

Anatolii Livashevskyi
Product Manager
Українська / Polski
+48721808900
+48721808900
Telegram +48721808900
[email protected]

Description

The Astronomik H-alpha 12nm filter is a high-performance narrowband filter designed for CCD astrophotography. It allows H-alpha light emitted by nebulae to pass through while blocking nearly all other wavelengths where CCD sensors are sensitive. This filter is optimized for fast optics and achieves a high transmission rate of up to 99%, making it ideal for capturing detailed and high-contrast images of hydrogen nebulae and other deep-sky objects. The "Halo-Free" design, introduced in 2008, ensures superior image quality by eliminating halos caused by bright stars.



The 12nm full width at half maximum (FWHM) strikes a balance between contrast and usability, allowing the inclusion of guiding stars for cameras with built-in autoguiders, unlike narrower filters such as the 6nm version. It is suitable for optical systems with aperture ratios ranging from 1:2.8 to 1:15, with minimal transmission losses or chromatic distortions.



Specifications

  • Capacity:
    • Coating of optical system: FMC
    • Mount material: Aluminium
    • Frame: Clip-Filters
    • Appropriate for: Canon EOS
    • Central wavelength (nm): 656
    • Half-value width (nm): 12
    • Filter thickness (mm): 1
    • Transmission: 96%
  • General:
    • Series: H-alpha 12nm
    • Type: Filters
    • Type of build: Line filter

Area of Application

  • Visually useful: No
  • Useful for photographs: Yes
  • Anti light-pollution: Yes
  • Hydrogen nebulae: Yes
  • Supernova remains: Yes
