Astronomik Filters CCD Canon EOS XL H-Alpha clip-filter (43703)
The Astronomik H-alpha 12nm filter is a narrowband filter specifically designed for CCD astrophotography. It allows H-alpha light from emission nebulae to pass through while blocking nearly all other wavelengths where CCD cameras are sensitive. With a full width at half-maximum (FWHM) of 12nm, this filter is optimized for use with common CCD cameras and fast optics, offering a transmission rate of up to 99%. The "Halo-Free" design, introduced in 2008, ensures superior image quality by eliminating halos around bright stars.
330.55 $ net price (non-EU countries)
Anatolii Livashevskyi
Product Manager /
+48721808900 +48721808900
+48721808900
[email protected]
Description
The Astronomik H-alpha 12nm filter is a narrowband filter specifically designed for CCD astrophotography. It allows H-alpha light from emission nebulae to pass through while blocking nearly all other wavelengths where CCD cameras are sensitive. With a full width at half-maximum (FWHM) of 12nm, this filter is optimized for use with common CCD cameras and fast optics, offering a transmission rate of up to 99%. The "Halo-Free" design, introduced in 2008, ensures superior image quality by eliminating halos around bright stars.
This filter also supports guiding stars for cameras with built-in autoguiders, unlike narrower filters such as the 6nm version. It is effective for aperture ratios ranging from 1:2.8 to 1:15, with minimal chromatic distortions or transmission losses unless used with extremely bright aperture ratios of 1:2 or faster. Additionally, it completely suppresses artificial light pollution from mercury and sodium lamps, making it ideal for capturing high-contrast images of nebulae even in heavily light-polluted areas.

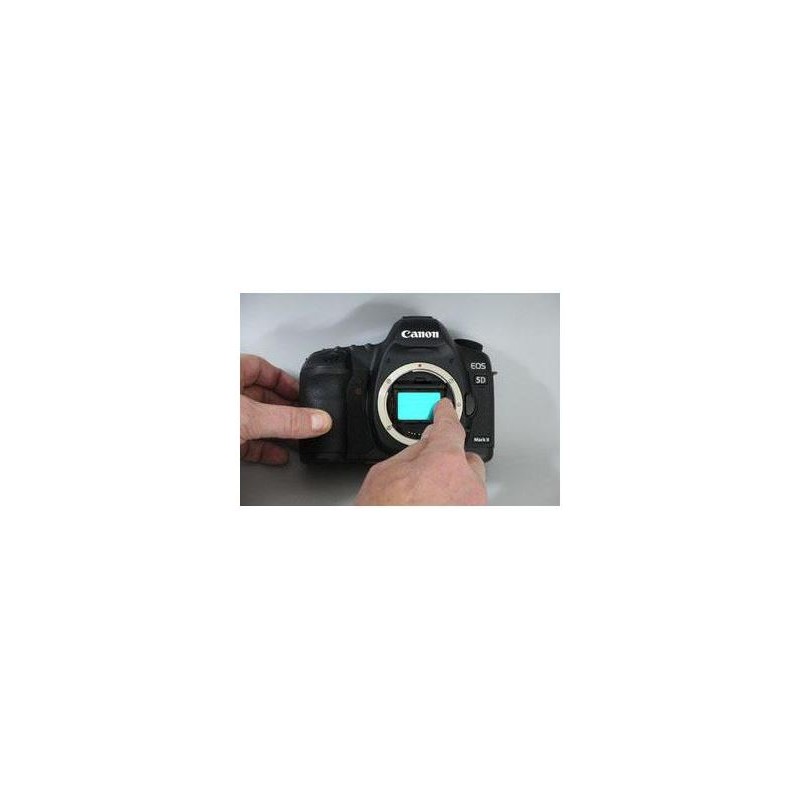

Please note that while the Clip-Filter system is compatible with Canon EF lenses and third-party lenses (Sigma, Tamron, etc.), it cannot be used with Canon EF-S lenses.
Specifications
- Capacity:
- Half-value width (nm): 12
- Connection: EOS Clip
- Coating of optical system: Multiple
- Frame: Clip-Filters
- Appropriate for: Canon EOS
- General:
- Series: H-alpha 12nm
- Type: Filters
- Type of build: Line filter
Area of Application
- Useful for photographs: Yes
- Hydrogen nebulae: Yes
- Anti light-pollution: Yes
- Visually useful: No
