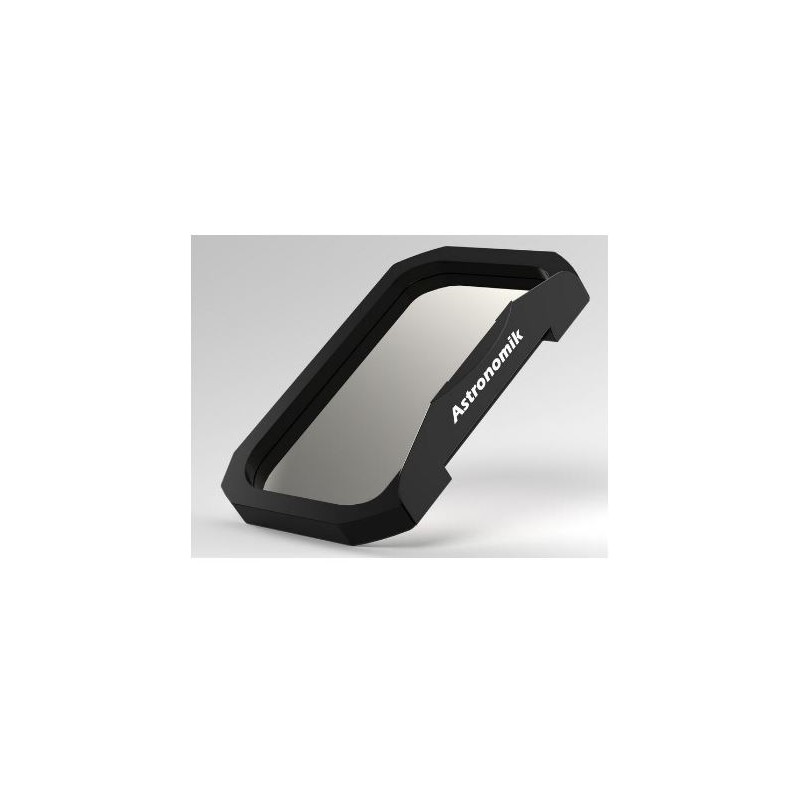

Astronomik ProPlanet 742 Clip-Filters Pentax K (67178)

This filter is specifically designed for imaging the Moon and planets, particularly Mars, using telescopes with apertures of 6" (150 mm) or larger. It allows only infrared light with wavelengths greater than 742 nm to pass. In this range, the effects of atmospheric turbulence ("seeing") are significantly reduced compared to visible light, enabling sharper and steadier images. Additionally, the filter darkens the sky background during advanced dawn, making it suitable for planetary and lunar photography even in daylight.

Key Features and Benefits

• The ProPlanet IR 742 blocks visible light and transmits infrared wavelengths above 742 nm, eliminating the spectrum most affected by poor seeing conditions. This improves image quality without requiring longer exposure times.
• Ideal for astrophotography of bright celestial objects like planets and the Moon, particularly under challenging seeing conditions or during twilight.
• The filter is parfocal with other Astronomik filters, meaning no refocusing is required when switching between them.
• Resistant to humidity, scratches, and aging effects, ensuring long-term durability.

Specifications

• Material: Aluminum mount.
• Filter Thickness: 1 mm.
• Transmission Efficiency: Over 95% for wavelengths between 742 nm and 1100 nm.
• Blocking Range: Wavelengths from 350 nm to 730 nm are fully suppressed.
• Compatibility: Clip-filter design suitable for Pentax cameras.

Applications

The Astronomik ProPlanet 742 is highly effective for imaging planets like Jupiter, Saturn, and Mars where infrared wavelengths reveal atmospheric details not visible in standard color imaging. It is particularly suited for telescopes with apertures of 6" or larger. For very poor seeing conditions or larger telescopes (10" or more), filters with deeper cut-on wavelengths, such as the ProPlanet IR 807, may be a better choice.
