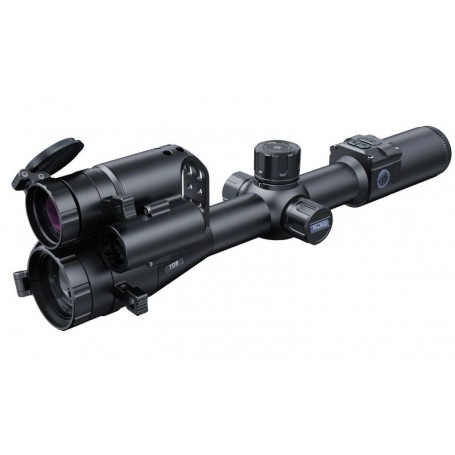

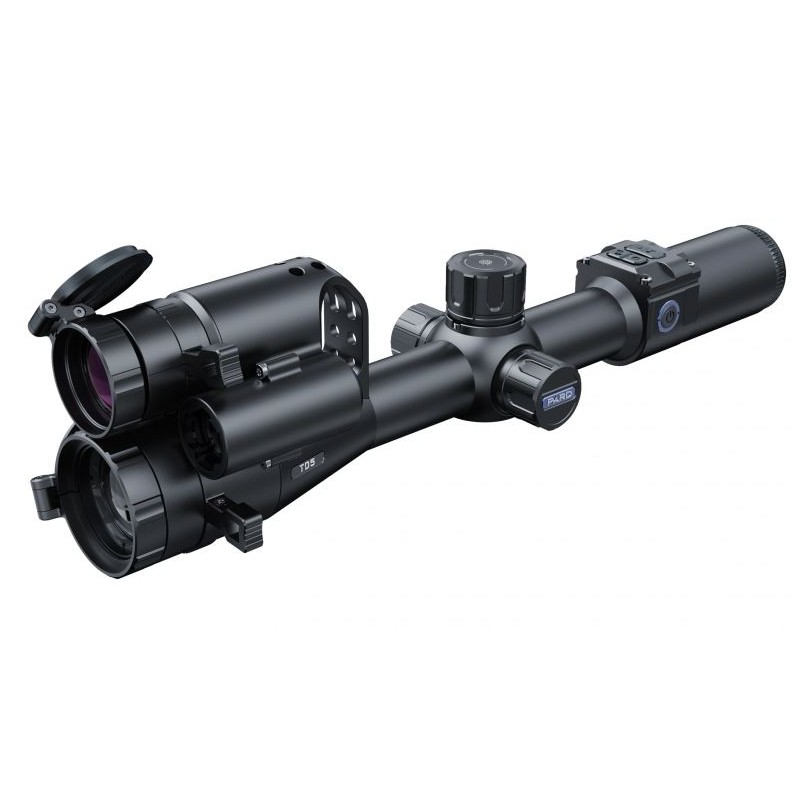

Pard TD32-70 night vision scope, TD32-70/940/F

The Pard TD32-70/940 LRF Thermal and Night Vision Scope is a cutting-edge multispectral device that combines thermal imaging and night vision technologies in a traditional tube-style design. This advanced scope is tailored for hunters and shooters seeking precision, versatility, and reliability in all conditions. It integrates a thermal sensor, a night vision CMOS sensor, a laser rangefinder, a ballistic calculator, and an infrared illuminator into one cohesive unit.

Exceptional Imaging Technology

The TD32-70/940 LRF features an uncooled VOx thermal sensor with a resolution of 384 × 288 pixels, 12 μm pixel size, and a sensitivity of ≤25 mK. Its CMOS sensor delivers full-HD resolution (1920 × 1080 pixels) with excellent low-light sensitivity (0.001 lux). Images are displayed on a circular LTPS display with 800 × 800 resolution, ensuring sharp and detailed visuals in both thermal and night vision modes. The device supports multiple color palettes, including white-hot, black-hot, red-hot, and edge detection, to enhance visibility in various environments.

Dual Functionality and PIP Mode

The scope allows seamless switching between thermal imaging and night vision modes using an intuitive control dial. The Picture-in-Picture (PIP) mode enables simultaneous display of thermal and night vision images on the same screen, enhancing target identification and aiming precision. Optical magnification of 6.5× combined with digital zoom up to 13× ensures flexibility for both short- and long-range targeting.

Integrated Laser Rangefinder and Ballistic Calculator

With a rangefinder capable of measuring distances up to 1,000 meters, the TD32-70/940 LRF provides accurate data for precise shooting. The integrated ballistic calculator accounts for variables such as bullet weight, velocity, and range to optimize shot placement.

Infrared Illuminator

The built-in 940 nm infrared illuminator enhances visibility in complete darkness up to 350 meters. Its adjustable intensity levels allow customization based on environmental conditions while remaining undetectable to game.

Durability and Design

The scope is IP67-rated for water and dust resistance, making it suitable for use in harsh weather conditions. It is built to withstand recoil forces up to 6,000 J, ensuring compatibility with high-caliber firearms. Despite its robust construction, the device maintains a compact form factor with dimensions of 350 × 91 × 95 mm and weighs only 800 g.

Convenience Features

The TD32-70/940 LRF supports photo and video recording in resolutions of up to 1440 × 1080 pixels for night vision and 1024 × 768 pixels for thermal imaging. Files can be stored on an SD card (up to 128 GB) or transferred via Wi-Fi using the PardVision app. Additional features include gyroscope stabilization, an e-compass for navigation, USB-C charging compatibility, and HDMI output for external display.

Included Components:

• Pard TD32-70/940 LRF scope
• USB-C cable
• Rechargeable lithium-ion battery
• Protective carrying case
• Lens cleaning cloth
• User manual

Technical Specifications:

The Pard TD32-70/940 LRF Thermal and Night Vision Scope is an exceptional choice for professionals seeking advanced functionality without compromising on durability or ease of use. Its multispectral capabilities make it ideal for both daytime hunting in full color and nighttime operations under challenging conditions.
