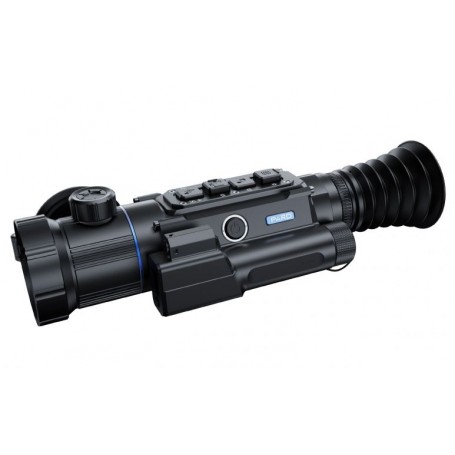

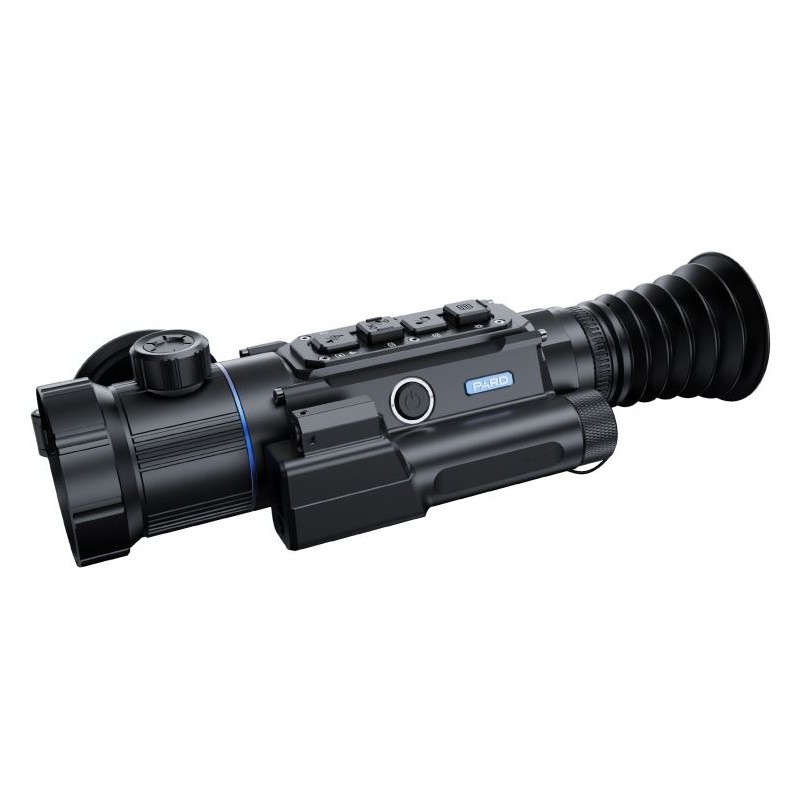

The Pard Ocelot 480 LRF Thermal Imaging Viewfinder is a compact and lightweight device that delivers exceptional image quality and advanced features, making it an excellent choice for both seasoned hunters and beginners exploring thermal imaging. Its 50mm lens and integrated laser rangefinder provide precision and versatility, ensuring reliable performance in various conditions.
Key Features
This thermal imaging sight is equipped with a VOx sensor offering a resolution of 480 × 360 pixels, a pixel pitch of 12 μm, and thermal sensitivity below 20 mK. The optical magnification of 3.3× can be enhanced with up to 8× digital zoom, enabling detailed observation at varying distances. The round IPS LCD display with an 800 × 800 resolution ensures sharp visuals, while six color modes (red, black, white, iron, sky, edge) allow customization based on environmental conditions.
The integrated laser rangefinder measures distances up to 1,000 meters with precision. Combined with the ballistic calculator, it provides real-time trajectory calculations for accurate shooting at long ranges. The field of view at 100 meters is 8.73 meters, ensuring excellent situational awareness.
Advanced Functionality
The device includes Picture-in-Picture (PiP) mode for enhanced target tracking and recoil-activated recording that automatically saves 20-second video clips (8 seconds before and 12 seconds after the shot). Videos are recorded in 768 × 768 resolution, while photos are captured at 1536 × 1536 pixels. Data can be stored on a Micro SD card with up to 128 GB capacity or transferred via Wi-Fi using the PardVision2 app.
Durability and Ergonomics
Built from lightweight yet durable materials, the Ocelot 480 LRF is designed to withstand harsh conditions and recoil forces up to 6,000 J. Its IP67 rating ensures resistance to water and dust, while its operating temperature range of -30°C to +55°C guarantees reliable performance in extreme environments. The ergonomic design includes intuitive buttons for easy operation even with gloves.
Power and Connectivity
Powered by a replaceable 21700 lithium-ion battery, the device offers up to five hours of continuous operation. The USB-C port supports fast charging and external power sources like power banks for extended use. Additional connectivity options include HDMI output for external displays.
This device combines cutting-edge thermal imaging technology with practical features like an integrated laser rangefinder, ballistic calculator, PiP mode, and recoil-activated recording. Its compact design and rugged construction make it ideal for hunting, wildlife observation, and surveillance in challenging conditions. Lightweight yet powerful, the Pard Ocelot 480 LRF Thermal Imaging Viewfinder delivers unmatched precision, reliability, and ease of use for demanding users.
Included Components:
- Pard Ocelot 480 LRF Thermal Imaging Viewfinder
- Rechargeable lithium-ion battery (21700)
- USB-C cable
- Picatinny/Weaver rail mount
- Protective neoprene case
- Optics cleaning cloth
Specifications:
- Sensor Resolution: VOx 480 × 360 pixels
- Thermal Sensitivity: <20 mK
- Optical Magnification: 3.3×
- Digital Zoom: Up to 8×
- Laser Rangefinder Range: Up to 1,000 meters
- Display: IPS circular display (800 × 800 pixels)
- Video Resolution: 768 × 768 px
- Battery Life: Up to five hours
- Protection Rating: IP67
- Weight: 647.5 g
/
