Avalon StarGo Stand Alone Controler WiFi (67589)

The StarGO is a computerized GoTo Control System powered by stepper motor technology, designed for managing both Alt-Azimuthal and Equatorial mounts. While primarily created for Avalon Instruments' M-zero, M-uno, and Linear mounts, its programmable gear ratio and compatibility with special motor kits make it adaptable for other mount brands. Intuitive and versatile, the StarGO system is ideal for both visual observation and advanced astrophotography.

1830.04 $
Tax included

1487.84 $ net price (non-EU countries)

Anatolii Livashevskyi
Product Manager
Українська / Polski
+48721808900
+48721808900
Telegram +48721808900
[email protected]

Description

The StarGO is a computerized GoTo Control System powered by stepper motor technology, designed for managing both Alt-Azimuthal and Equatorial mounts. While primarily created for Avalon Instruments' M-zero, M-uno, and Linear mounts, its programmable gear ratio and compatibility with special motor kits make it adaptable for other mount brands. Intuitive and versatile, the StarGO system is ideal for both visual observation and advanced astrophotography.

What's in the box?
  • Main board with aluminum case
  • StarGO control keypad
  • USB cable
  • 12-24 VDC power supply with 110-240 VAC input and a 12 VDC cigarette lighter cable
  • USB flash drive with StarGO software and manuals
  • RS232 connection cables
  • StarGO carrying bag
  • Special shockproof bag
The StarGO system offers three main modes of operation:
Simple Tracker: Operates without additional devices. Simply connect the power, and it tracks in both Equatorial and Alt/Az modes.
Wireless GoTo System: Compatible with SkySafari for use with smartphones or tablets. This mode includes a 24-star pointing model and is ideal for visual observation.
Full GoTo System Mount Controller: Connects to a PC via ASCOM drivers for full control through popular astronomical software such as Maxim, TheSkyX, PhD2, SGP, and Carte du Ciel. This mode is recommended for astrophotography, offering features like home position, GoTo, park/unpark, autoguiding, focus control, and more.

The StarGO system has been tested successfully on Windows 7/8/10 (via ASCOM Driver) and OS X (LX200 classic). Although designed mainly for Avalon mounts, it can be adapted to other brands thanks to its programmable gear ratio and motor kit compatibility.

Technical Data
General
  • Equatorial and Altazimuthal GoTo system with stepper motors and programmable gear ratio (e.g., 1234.123).
  • Configuration file saving feature.
System Speeds
  • Guide: 0.05x to 0.95x in 0.05x increments.
  • Center: 2x to 10x.
  • Find: 10x to 150x in 0.05x increments.
  • Slew: Four speeds (up to 1400x depending on the mount's gear ratio).
Tracking Speeds
  • Sidereal, Solar, Lunar, Terrestrial with fine adjustment options.
Autoguide Speeds
  • RA: 0.05x to 0.95x in 0.05x increments.
  • DEC: 0.05x to 0.95x in 0.05x increments.

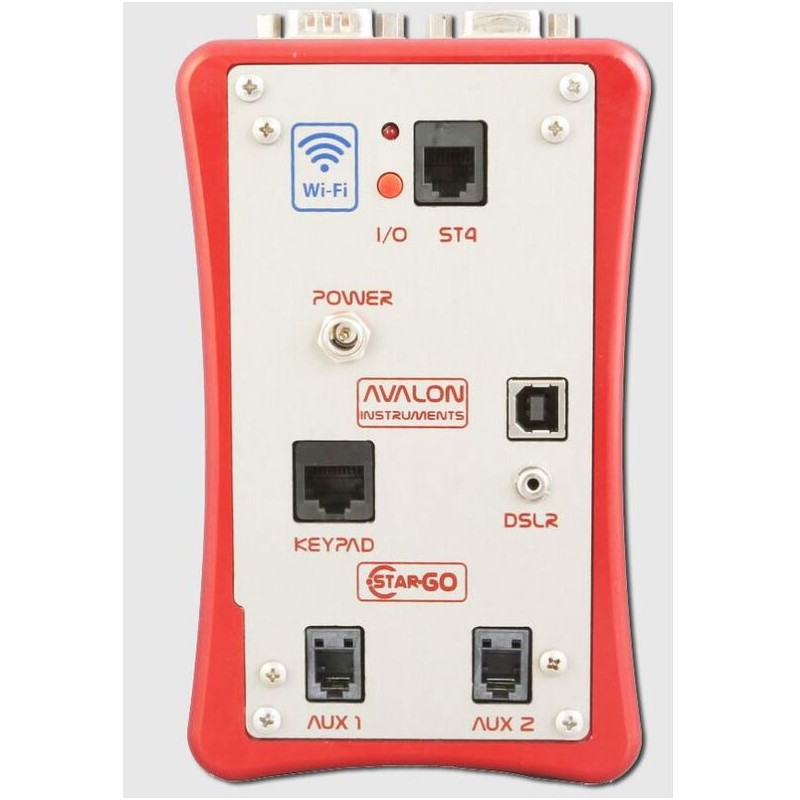

Input/Output Ports
  • USB, Wi-Fi, ST4, DSLR connections available.
  • AUX1: Hybrid step motor (max current of 300mA at ≥12 VDC).
  • AUX2: Hybrid step motor (max current of 300mA at ≥12 VDC).
Electrical Characteristics
  • Power supply: Stabilized 12–18 VDC; current: 0.5–1.5 A.
Control Operations
  • Functions include GoTo, Sync, Park/Unpark, and firmware updates.
Operating Temperature Range
  • Between -20°C and +40°C
The StarGO system combines ease of use with advanced features, making it a versatile tool for astronomers seeking precision and reliability in their mount control systems.
