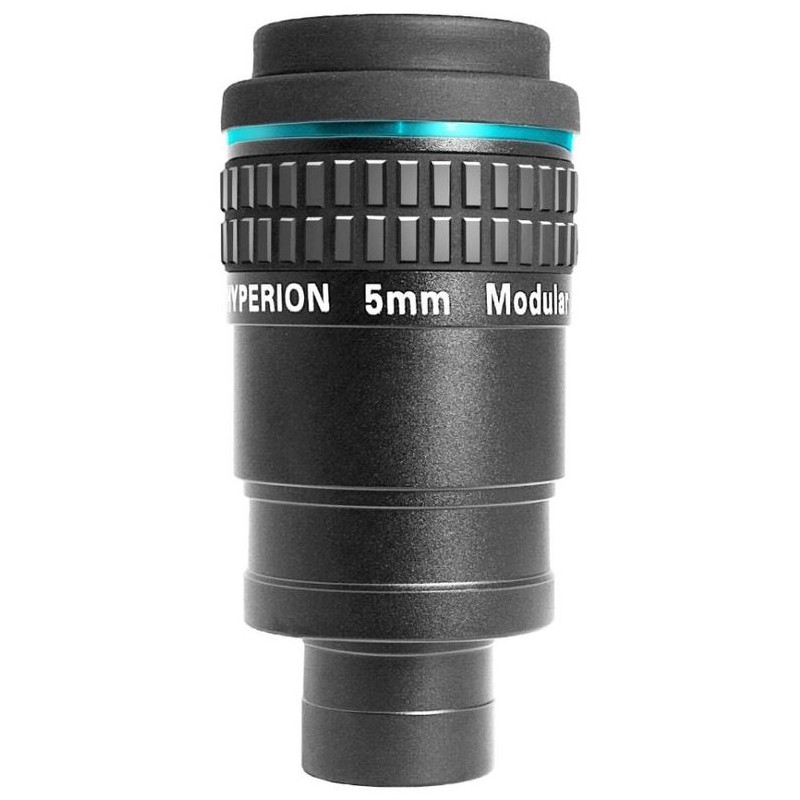

Baader Hyperion eyepiece 5mm (8893)

The Baader Hyperion eyepieces set a new benchmark for quality and versatility, combining advanced optical performance with user-friendly features. With a 68° apparent field of view, they provide an optimal balance for the human eye, offering a wide yet comfortable viewing experience. These eyepieces are designed for precision, delivering sharpness and excellent color fidelity across the entire field of view. Their dual-use capability with 1.25" and 2" barrels adds flexibility, making them ideal for both visual observation and astrophotography.

Key Features

• Wide Field of View: A 68° field of view ensures the entire image remains visible, even with slight head movements.
• Sharpness and Color Fidelity: Eight lens elements in five groups ensure perfect sharpness and excellent color accuracy right to the edge of the field.
• Dual Functionality: Can be used as a low-magnification 2" wide-field eyepiece or at nominal magnification with the 1.25" negative achromat group.
• Minimal Distortion and Astigmatism: High refractive index glass elements ensure low distortion and astigmatism across the field.
• Comfortable Viewing: No "kidney-bean effect," so the image remains stable even with involuntary head movements.

These eyepieces are also optimized for astrophotography. The removable eyecup can be replaced with an M43-T2 adapter, allowing direct connection to SLRs, digital cameras, video cameras, and webcams. Spacer rings can further adjust focal length for specific imaging needs. Their compatibility with bino-viewers and foldable eyecups makes them suitable for spectacle wearers as well.

Baader Phantom Group Coating™
The Hyperion series features Baader's proprietary Phantom Group coating™, a 7-layer broadband anti-reflection coating designed to maximize light transmission where the human eye is most sensitive at night (around 520 nm). These coatings are nearly colorless, ensuring minimal light loss and no scattered light interference. Unlike coatings that produce strong green reflections (indicative of lower-tech designs), Phantom Group coatings reflect almost no light in the critical spectral range between 500-550 nm.

Advantages at a Glance

• High-quality construction
• Relaxed viewing experience
• Large, immersive field of view
• Perfect sharpness across the entire field
• Excellent color fidelity
• Dual compatibility with 1.25" and 2" barrels
• Low distortion and astigmatism
• No "kidney-bean effect"

Specifications

• Focal Length: 5 mm
• Apparent Field of View: 68°
• Eye Relief: 20 mm
• Number of Lenses/Groups: 8 lenses in 5 groups
• Connection to Telescope: 2" barrel (also compatible with 1.25")
• Optical Coating: Multi-coated (Phantom Group Coating™)
• Special Features: Optional camera adapter, folding eyepiece cup, filter thread

General Information

• Series: Hyperion
• Type: Eyepiece (SWA - Super Wide Angle)

The Baader Hyperion eyepieces are ideal for astronomers seeking premium optical performance combined with versatility for both observation and imaging tasks. They deliver exceptional clarity and comfort while maintaining flexibility for various viewing and photographic setups.
