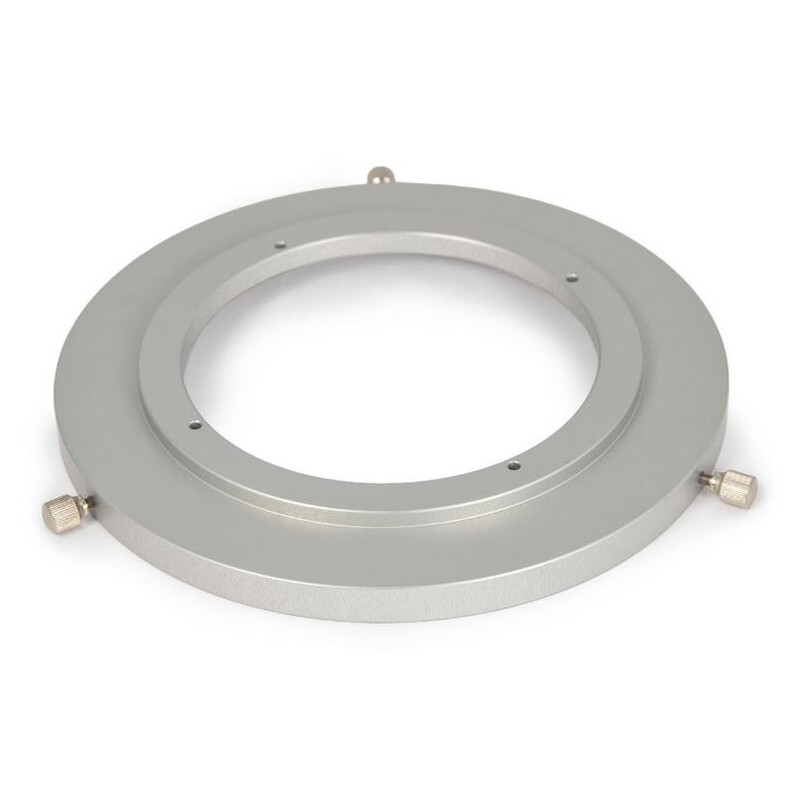

Baader Solar iris diaphragm holder for D-ERF 135-160 Filters mounts (73627)

This solar iris diaphragm holder is specifically designed for mounting Baader D-ERF (Energy Rejection Filters) with diameters between 135mm and 160mm. It provides a secure and adjustable solution for safely attaching the filter to your telescope, ensuring optimal performance during solar observation. The holder allows precise alignment and stability, preventing unwanted movement or detachment during use.

213.04 $
Tax included

173.2 $ net price (non-EU countries)

Anatolii Livashevskyi
Product Manager
Українська / Polski
+48721808900
+48721808900
Telegram +48721808900
[email protected]

Description

This solar iris diaphragm holder is specifically designed for mounting Baader D-ERF (Energy Rejection Filters) with diameters between 135mm and 160mm. It provides a secure and adjustable solution for safely attaching the filter to your telescope, ensuring optimal performance during solar observation. The holder allows precise alignment and stability, preventing unwanted movement or detachment during use.



Key Features:

  • Compatibility: Designed to fit D-ERF filters with diameters ranging from 135mm to 160mm.

  • Secure Mounting: Ensures the filter is firmly attached to the telescope, reducing the risk of accidental detachment.

  • Adjustability: The iris diaphragm allows fine-tuning of the aperture for optimal light control during solar observations.

Important Notes:
This holder is intended for use with Baader D-ERF filters as part of a solar observation setup. Always ensure proper alignment and secure attachment to avoid damage or safety risks during use.





Specifications:

  • Depth: 9.8mm

  • Diameter: 175.3mm (+0.1/0)

  • Clamping Screws: 3 screws at 120° intervals

  • Thread Depth (M3): 5mm

For safe and effective solar observation, always follow the manufacturer's guidelines when using this holder in combination with D-ERF filters.
