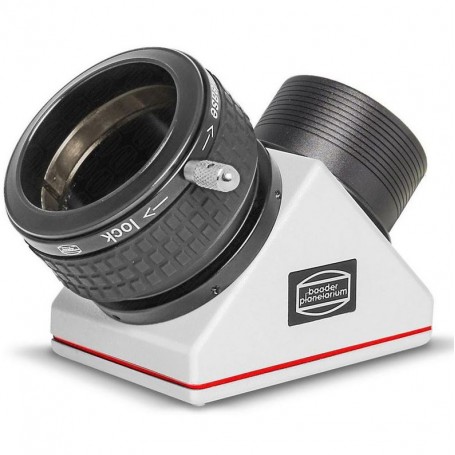

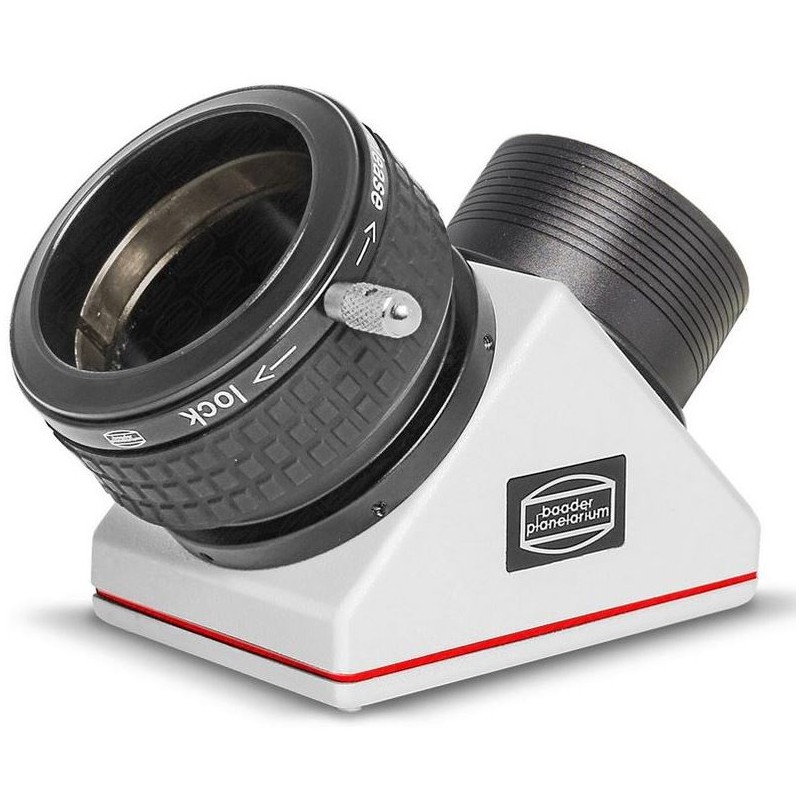

Baader Diagonal mirror ClickLock 2" (14694)

Advantages of the Baader 2" ClickLock Star Diagonal:

• Oversized 2" dielectric lambda/10 mirror for exceptional optical performance.

• Scratch-resistant, hard-coated mirror surface ensures safe cleaning, even in extreme conditions.

• Mirror rejects UV and IR radiation, making it highly safe for solar observing in white light or with H-alpha sun filters.

• Maximum possible free aperture allows for wide-field observing.

• Rounded shape eliminates sharp corners or edges for added safety and comfort.

• Heavy accessories can be securely attached using finger pressure alone.

• Includes a removable 2" push-in large aperture connector for added versatility.

Overview of the Baader 2" ClickLock System:
The Baader 2" ClickLock system is an advanced development based on the success of the 1.25" ClickLock clamp. Years of testing have led to improvements in its effectiveness and robustness, making the 2" system even more solid and reliable.

• Rotating the ClickLock by just 20° is enough to firmly and securely lock accessories in place.

• A built-in ratchet provides both acoustic and tactile feedback, so you can confirm whether the clamp is open or closed—even in complete darkness.

• The heavy-duty locking ring securely holds expensive accessories without causing scratches or pressure marks.

• The extensive range of available ClickLock clamps ensures compatibility with a wide variety of telescopes (additional clamps for brands like Vixen are in development).

• Six camera slotted screws and six Allen screws allow for rotation adjustment using a hex key, making it suitable for both left-handed and right-handed users.

Once you experience the Baader 2" ClickLock system, you’ll never want to use any other method to attach your accessories!

Specifications:
Connection (to the telescope): 2"
Viewing posture: 90°
Surface accuracy: Lambda/10
Coating of optical system: Dielectric
Correction of horizontally reversed image: Yes
Ring clamp: Yes
Filter thread: Yes

General Information:
Width: 46.6 mm
Weight: 495 g
Material: Anodized aluminum
Color: Black/white
Series: ClickLock
Type: Deviating optics (diagonal mirror)
