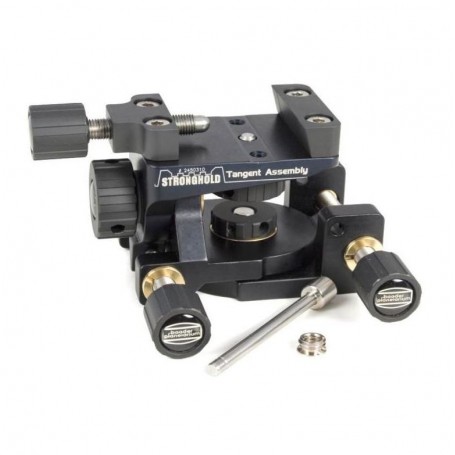

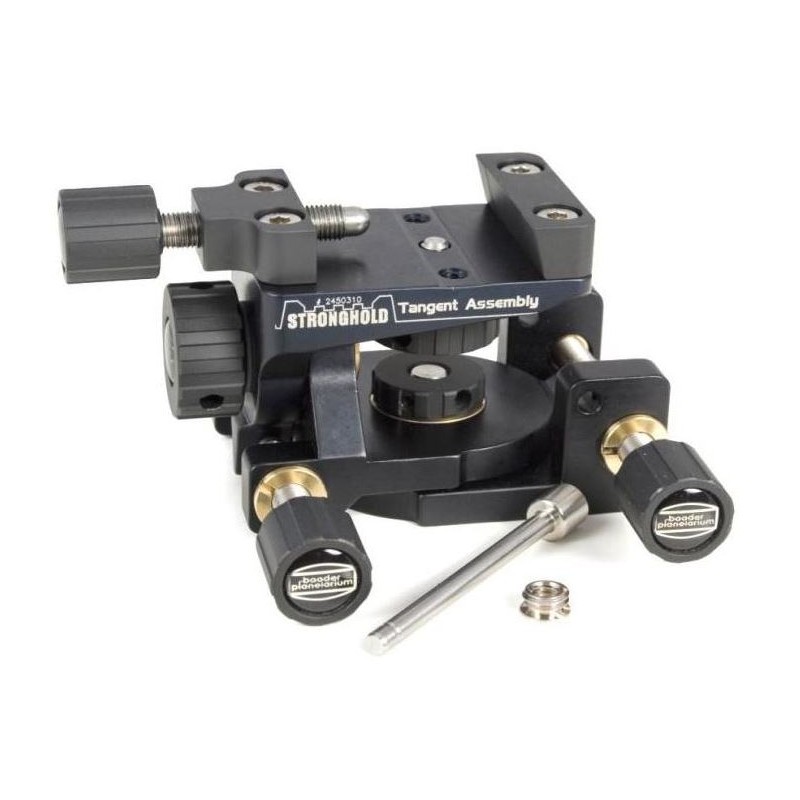

Baader Stronghold tangential assembly (black) (21292)

The Baader Stronghold Tangent Assembly is a high-precision mounting accessory developed by Baader Planetarium for securely attaching finder scopes, guide scopes, or heavy telephoto lenses to your main telescope. It ensures safe and stable mounting while allowing precise adjustments for accurate alignment. This makes it an ideal solution for astrophotographers and observers who require reliable and versatile equipment.

Adjustment Mechanism:
The Stronghold Tangent Assembly features four external adjustment screws. To align the mounted accessory (e.g., Baader Vario Finder, eyepiece, camera, spotting scope, or guide scope), loosen one screw and tighten the opposing screw. Once the desired alignment is achieved, all adjustment screws can be tightened to lock the assembly firmly in place.

For maximum rigidity, a stainless steel locking dowel is included. This dowel is stored in a holder on the azimuth blocks upon delivery. To lock the elevation or azimuth axes, insert the dowel into the clamping screw and turn it clockwise a few degrees. To unlock, loosen the locking knob slightly before making any further adjustments.

Included in Delivery:

• Stronghold Tangent Assembly

• Locking dowel

• Holder for locking dowel

• 3/8" to 1/4" reducer

• EQ clamp (Vixen standard)

• 1/4" photo screw (secured by an O-ring on delivery, which can be removed if not needed)

Technical Data:

• Colors: Black or blue

• Weight: 680 g

• Material: Hard anodized aluminum

• Load bearing capacity: Up to 7 kg (photographic equipment)

• Azimuth adjustment: ±23°

• Elevation adjustment: ±35°

• Length: 115 mm (including adjustment knobs)

• Width: 128 mm (including adjustment knobs)

• Height: 54 mm (without EQ clamping mechanism)

Attachment Plate Mounting Options:

• 1/4" photo screw

• Six M6 threaded holes (thread depth: 6 mm)

Base Plate Mounting Options:

• 1/4" and 3/8" photo threads

• Four M6 threaded holes (thread depth: 6 mm)

• Four M5 threaded holes (thread depth: 6 mm)

General Mounting Options:
The included EQ clamp (Vixen standard) can be mounted either on the top or base of the assembly.

This robust design ensures precise alignment and stability for your mounted accessories, making it an essential tool for demanding astronomical setups.
