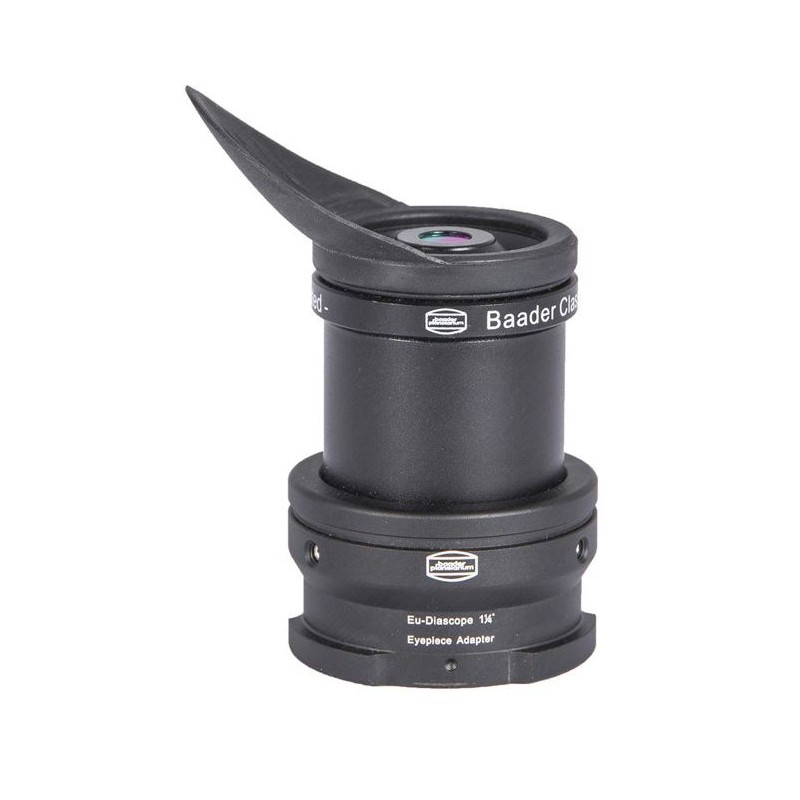

Baader 3 mm Spotting-Scope-Eyepiece with Barlow-Lensset and bayonet-adapter for ZEISS-Diascope (49987)

This dedicated high-magnification 3 mm spotting-scope eyepiece is designed for superior optical performance and includes a bayonet adapter for ZEISS Diascope. The set features a 6 mm Classic-Ortho-Eyepiece directly coupled to the lens holder of the field-flattening Hyperion-Zoom-Barlow, along with the Baader-Diascope-Bayonet-Adapter. The triplet-lens Hyperion Barlow compensates for the short focal length of spotting scopes, acting as a field flattener to provide sharp, edge-to-edge clarity. The 6 mm eyepiece can also be detached from the Barlow lens set and mounted directly onto the spotting scope using the included adapter.

Magnifications provided with this product:

ZEISS Diascope 65 T*FL (384 mm focal length):

• 3 mm (with Barlow mounted): 128x

• 6 mm (without Hyperion-Zoom-Barlow lens set): 64x

ZEISS Diascope 85 T*FL (502 mm focal length):

• 3 mm (with Barlow mounted): 167x

• 6 mm (without Hyperion-Zoom-Barlow lens set): 84x
