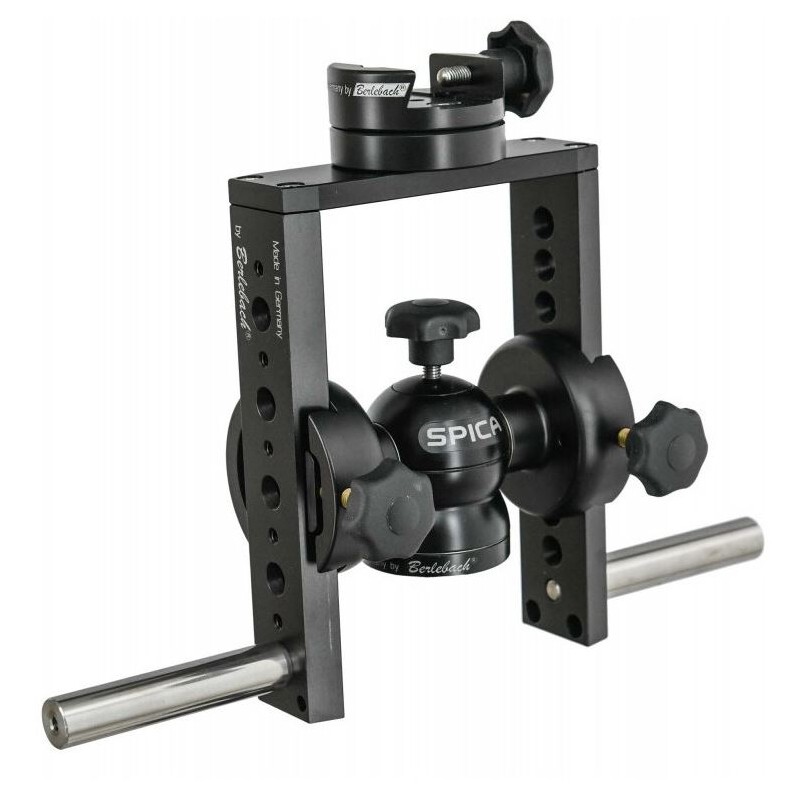

Berlebach Mount Omega Spica AZ (83296)

The Berlebach Omega Spica Mount is a durable and versatile solution for mounting large binoculars, double refractors, refractor telescopes, and photo or video equipment with long focal lengths. By incorporating counterweights and a variable lever arm ratio, the mount allows the center of gravity to align with the axis of rotation, enabling smooth and precise movements in all directions. Vertical pans exceeding 90° in both directions are easily achievable. Its compact design with dual-sided clamping minimizes vibrations and ensures maximum stability, making it ideal for heavy optical setups.

The clamping unit is positioned on top of the mount rather than between the fork, providing ample space to accommodate large optics such as binoculars. Lateral rails are secured using a GP prism clamp with a pressure shoe. The modular design allows compatibility with other Berlebach quick couplings, and the Omega Spica can be disassembled into a smaller travel-friendly configuration by using only the prism clamp and counterweight rod.

The mount connects to tripods via a standard 3/8” photo thread, ensuring compatibility with most photo tripods. For optimal performance and sufficient space for counterweights to swing, it is recommended to use a tripod with a center column, preferably one with a crank column for easy height adjustment. An optional extra-short star grip for vertical clamping can lower the center of gravity by an additional 2 cm, reducing the need for counterweights while maintaining balance.

Specifications:
Capacity

• Max. Additional Load Capacity (kg): 20

• Mounting Saddle: Vixen-Style

Equipment

• Motor-Powered: No

General

• Type: Mount

• Type of Build: Azimuthal

• Series: Omega Spica

• Total Weight (kg): 3

• Overall Size (LxWxH in mm): 355 x 125 x 260
