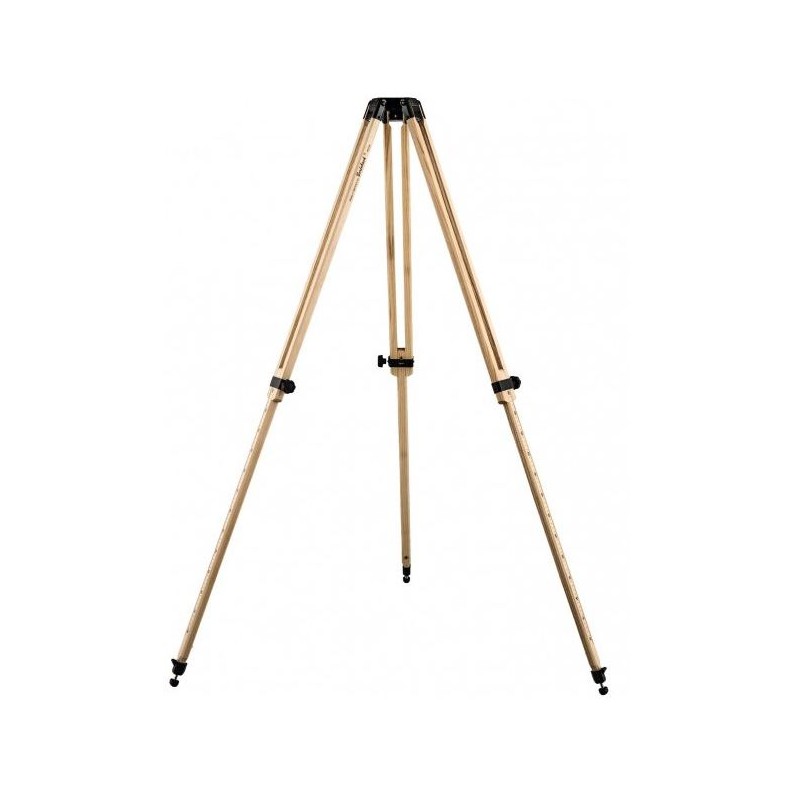

Berlebach Wooden tripod Report 322 3/8" (77947)

The lightweight magnesium mounting head serves as the modular base for ten different inserts. The module insert can be replaced at any time using a special wrench, which is included with the changing module. The cone fixation ensures a secure, positive-locking, and clearance-free connection between components.

Thanks to the advanced stop system, the tripod allows for angle adjustments of approximately 20°, 40°, 60°, 80°, and 100° using a wing catch. This system ensures that the specified load capacities of the tripod are maintained, even at maximum leg inclination.

The tripod is equipped with Module Insert 2, which includes a center column measuring 50 cm in length and 25 mm in diameter. This column is made of precision-drawn light-metal tubing, ensuring smooth and easy height adjustments. The aluminum support plate has a diameter of 68 mm and features a fixed fastening screw (standard: 1/4", optional: 3/8") along with three locking screws to prevent unintentional loosening of the mounted system.

Specifications

Capacity

• Type: Camera and video tripod

• Type of build: Tripod

• Load capacity: 12 kg

• Maximum tripod height: 183 cm

• Minimum tripod height: 53 cm

• Carrying length: 89 cm

• Connector thread on tripod head: 3/8

Tripod Features

• Leg extension adjustment: Clamp lock

• Tripod pad type: Rubber foot

• Number of leg extensions: 1

• Material: Wood

Special Features

• Single-handed operation: Yes

• Tripod head included in contents: No

• Carrying bag included in contents: No

• Integrated wedge included: Yes

• Accessory plate included: No

• Central column included: Yes

• Quick-release plate included: No

General Information

• Weight: 3.1 kg

• Series: Report

• Color: Nature
