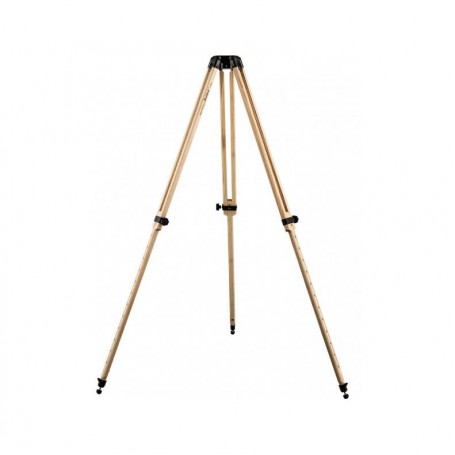

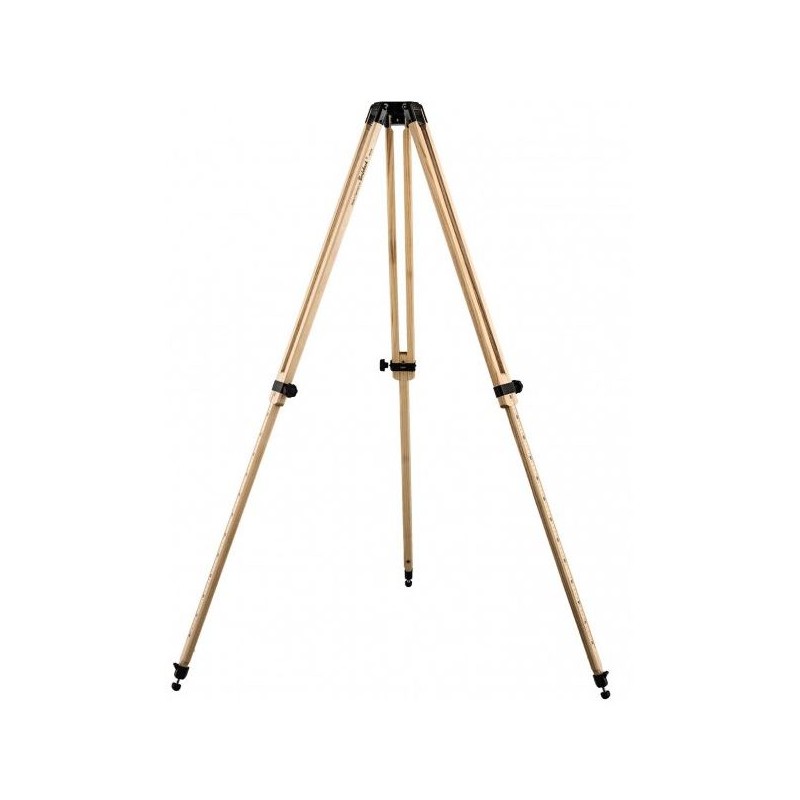

Berlebach Wooden tripod Report 332 M3 1/4" (73951)

The Modular Report Tripod System features a lightweight magnesium mounting head that serves as the base for ten different module inserts. The module insert can be replaced at any time using a special wrench, which is included with the changing module. The cone fixation ensures a secure, positive-locking, and clearance-free connection between components.

Thanks to the innovative stop system, users can set angles of spread at approximately 20°, 40°, 60°, 80°, and 100° using a wing catch. This design guarantees that the tripod maintains its specified load capacity, even at maximum leg inclination.

This tripod is equipped with Module Insert 3, which includes a permanently installed leveling ball with a diameter of 55 mm and an integrated spirit level. This setup allows for quick and precise adjustments of the tripod, with a pivoting range of 30° in all directions.

The fastening screw is spring-loaded, enabling you to place your tilt head or camera on the tripod and secure it from below using the star knob screw. This module insert is ideal for heavy equipment as it often eliminates the need for an additional tilt head. The camera or lens can be mounted directly onto the tripod, creating a single connection point for maximum stability and safety.

Specifications

Capacity

• Type of build: Tripod

• Number of levels: 1

• Maximum tripod height: 143 cm

• Minimum tripod height: 8 cm

• Carrying length: 89 cm

• Load capacity: 12 kg

Tripod Features

• Number of leg extensions: 1

• Material: Wood

• Tripod pad type: Rubber foot

• Connector thread on tripod head: 1/4

Special Features

• Tripod head included in contents: No

General Information

• Weight: 3.2 kg

• Series: Report
