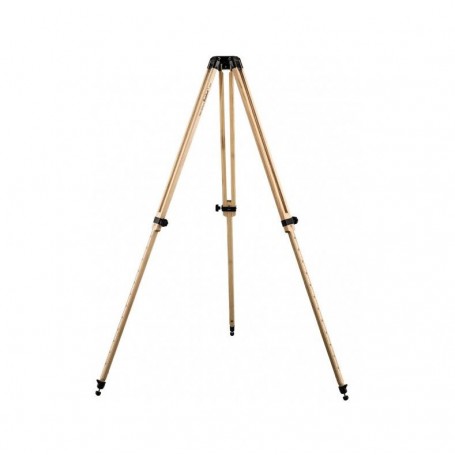

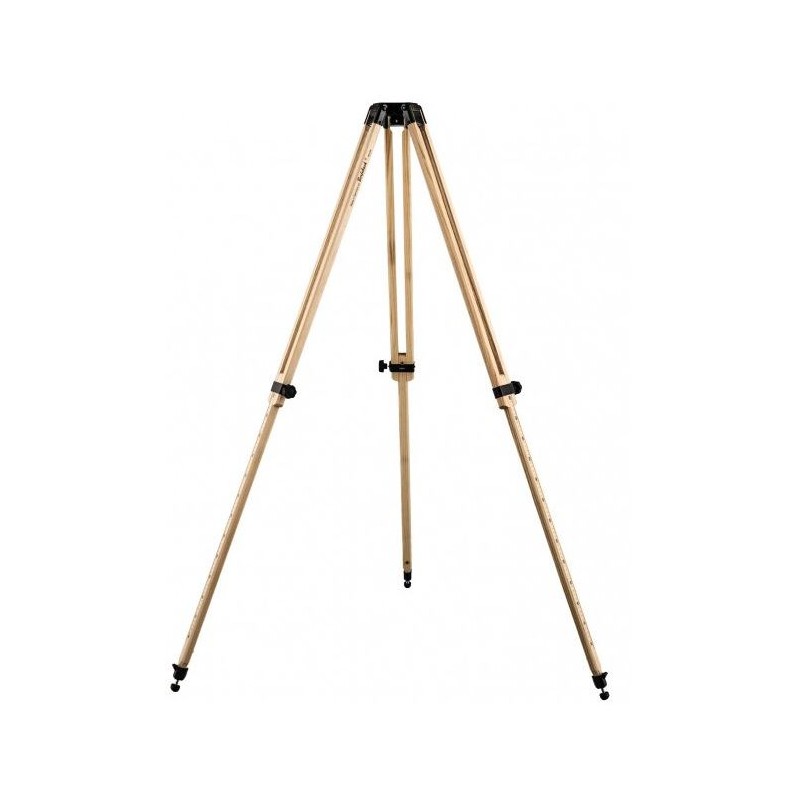

Berlebach Wooden tripod Report 332 M3 3/8" (45649)

The Modular Report Tripod System is designed with a lightweight magnesium mounting head that serves as the base for ten different module inserts. These inserts can be easily replaced at any time using a special wrench, which is included in the delivery. The cone fixation ensures a secure, positive-locking, and clearance-free connection between components.

With its advanced stop system, the tripod allows angles of spread to be set at approximately 20°, 40°, 60°, 80°, or 100° using a wing catch. This system ensures that the tripod maintains its specified load capacity, even when the legs are at their maximum inclination.

This particular model is equipped with Module Insert 3, which features a permanently installed leveling ball with a diameter of 55 mm and an integrated spirit level. This setup allows for quick and precise tripod adjustments, with a pivoting range of 30° in all directions.

The fastening screw is spring-loaded, enabling users to place their tilt head or camera on the tripod and secure it from below using the star knob screw. This module insert is especially suitable for heavy equipment, as the integrated leveling ball eliminates the need for an additional tilt head in some cases. The lens or camera can be mounted directly onto the tripod, creating a single connection point for maximum stability and safety.

Specifications

Capacity

• Type of build: Tripod

• Number of levels: 1

• Maximum tripod height: 143 cm

• Minimum tripod height: 8 cm

• Carrying length: 89 cm

• Load capacity: 12 kg

Tripod Features

• Number of leg extensions: 1

• Material: Wood

• Tripod pad type: Rubber foot

• Connector thread on tripod head: 3/8

Special Features

• Tripod head included in contents: No

General Information

• Weight: 3.2 kg

• Series: Report
