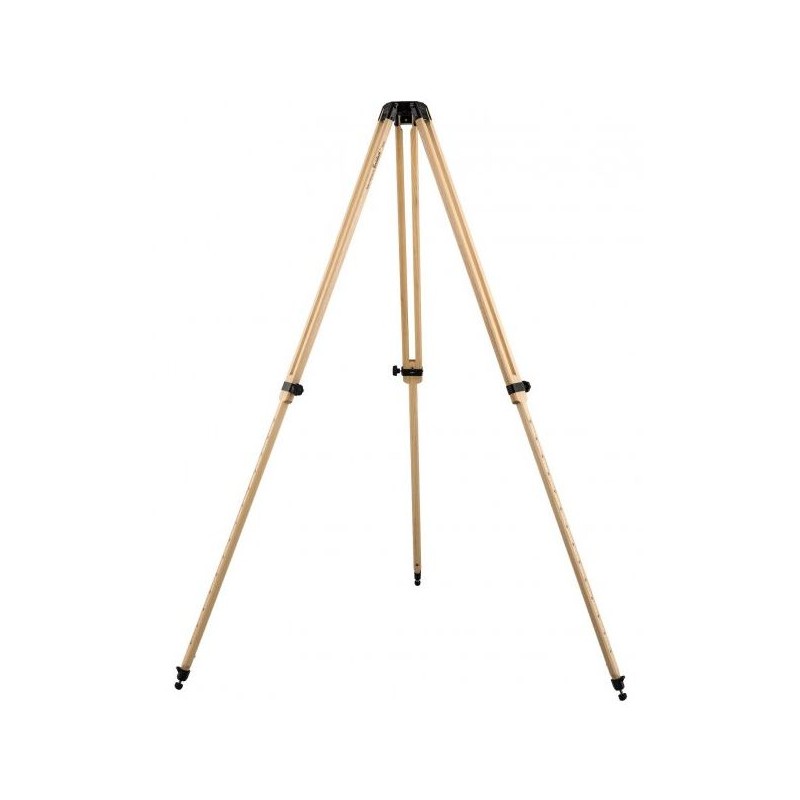

Berlebach Wooden tripod Report 402 3/8" (68903)

The Modular Report Tripod System is designed with a lightweight magnesium mounting head that serves as the base for ten interchangeable module inserts. These inserts can be replaced at any time using the special wrench included in the delivery. The cone fixation ensures a secure, positive-locking, and clearance-free connection between components, providing excellent stability and reliability.

With its advanced stop system, the tripod allows for adjustable angles of spread at approximately 20°, 40°, 60°, 80°, and 100° using a wing catch. This system ensures that the tripod maintains its specified load capacity even at maximum leg inclination.

This model is equipped with Module Insert 0, making it the simplest and most affordable version of the system. The support area has a diameter of 60 mm and features a fixed fastening screw. When paired with Berlebach tripod heads, this configuration is versatile for various applications and particularly well-suited for near-ground-level work.

Specifications

Capacity

• Type: Camera tripod

• Type of build: Tripod

• Load capacity: 10 kg

Dimensions

• Maximum tripod height: 162 cm

• Minimum tripod height: 4 cm

• Maximum spread angle: 100°

• Carrying length: 98 cm

Material and Construction

• Material: Wood

• Number of leg extensions: 1

• Leg extension adjustment: Clamp lock

• Tripod pad type: Rubber foot

• Connector thread on tripod head: 3/8

Special Features

• Number of levels: 1

• Tripod head included in contents: No

• Carrying bag included in contents: No

• Accessory plate included: No

• Central column included: No

• Quick-release plate included: No

General Information

• Weight: 3.2 kg

• Series: Report

• Color: Nature
