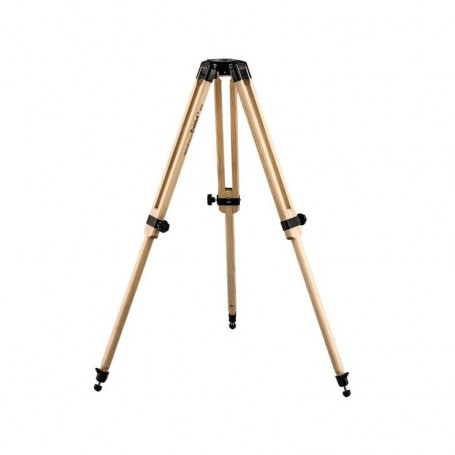

Berlebach Wooden tripod model 162/75 (8974)

The Modular Report Tripod System is a versatile and reliable tripod designed for professional use in photography and videography. Its lightweight magnesium mounting head serves as the base for ten interchangeable module inserts, allowing users to adapt the tripod to various applications. The module inserts can be replaced at any time using the special wrench included in the delivery. The cone fixation ensures a secure, positive-locking, and clearance-free connection between components, providing excellent stability during use.

Thanks to the advanced stop system, users can adjust the tripod's angles of spread to approximately 20°, 40°, 60°, 80°, and 100° using a wing catch. This system ensures that the tripod maintains its specified load capacity even when the legs are fully inclined.

This tripod is equipped with Module Insert 6, which includes a half ball with a diameter of 75 mm. This feature allows for the direct insertion of professional video tilt heads or a leveling unit (available as an accessory). The half ball provides a pivoting range of 15° in all directions, enabling quick and precise adjustments of the tripod.

Specifications

Capacity

• Type of build: Tripod

• Maximum tripod height: 89 cm

• Load capacity: 18 kg

• Carrying length: 58 cm

Material and Construction

• Type: Camera and video tripod

• Material: Wood

• Number of leg extensions: 1

• Leg extension adjustment: Twist lock

• Tripod pad type: Rubber foot (synthetic material)

Special Features

• Measures of accessory tray: Not included (without accessory tray)

• Single-handed operation: Yes

• Tripod head included in contents: No

• Carrying bag included in contents: Not included

• Integrated wedge included: Not included

• Panorama scale included: Not included

• Accessory plate included: Not included

• Central column included: Not included

• Quick-release plate included: Not applicable

General Information

• Weight: 2.2 kg

• Series: Report

• Color: Nature

• Length (cm): Not specified

• Width (cm): Not specified

• Height range (cm): 89
