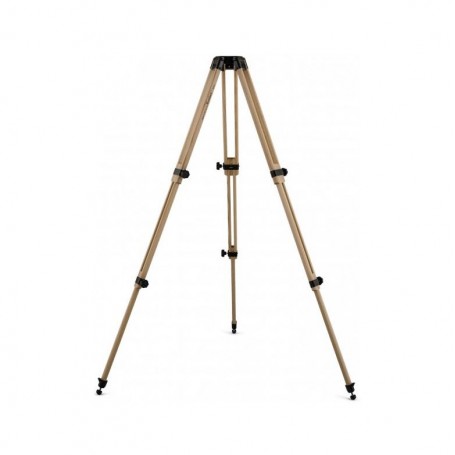

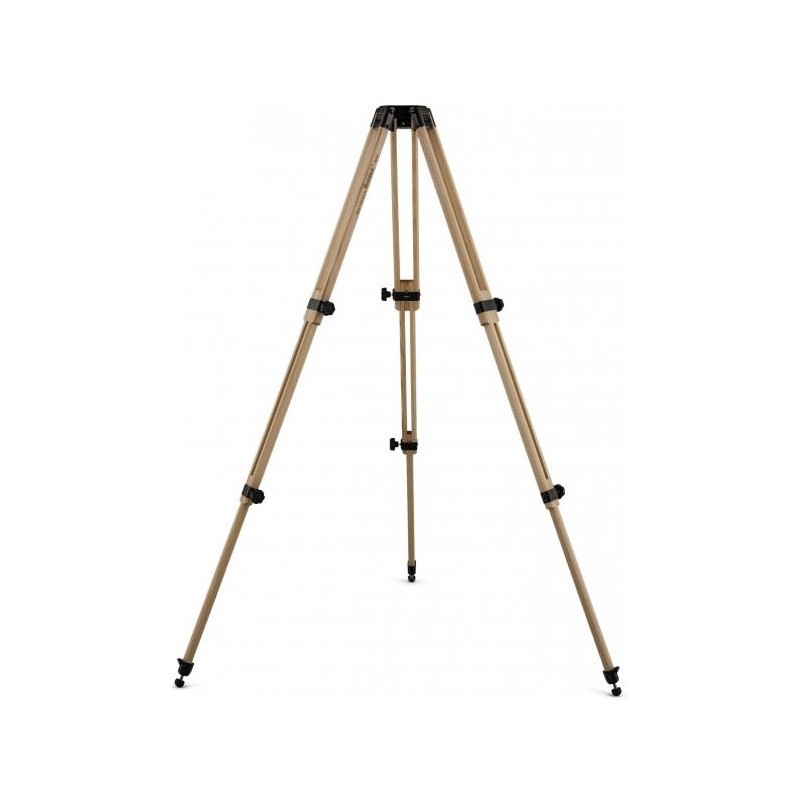

Berlebach Wooden tripod Report 843 (45650)

The Modular Report Tripod System is a professional and versatile tripod designed for photography and videography. Its lightweight magnesium mounting head serves as the base for ten interchangeable module inserts, allowing users to customize the tripod for various applications. The module inserts can be replaced at any time using the special wrench included in the delivery. The cone fixation ensures a secure, positive-locking, and clearance-free connection between components, providing excellent stability during use.

Thanks to the advanced stop system, users can set angles of spread at approximately 20°, 40°, 60°, 80°, and 100° using a wing catch. This system guarantees that the tripod maintains its specified load capacity even when the legs are fully inclined.

This model features Module Insert 4, which includes a center column measuring 50 cm in length and 25 mm in diameter, made of precision-drawn light-metal tubing, along with a leveling ball. The center column also includes a rotating panorama plate, allowing the leveling ball to tilt by 30° in all directions. The aluminum support plate has a diameter of 68 mm and features a fixed fastening screw (size selectable) along with three locking screws to prevent unintentional loosening of the mounted system. A built-in spirit level ensures quick and precise adjustments.

When using an extra-short center column (10 cm), it is possible to work near ground level. The specified maximum height applies when the 50 cm center column is fully extended.

Specifications

Capacity

• Type of build: Tripod

• Number of levels: 1

• Maximum tripod height: 187 cm

• Carrying length: 71 cm

• Load capacity: 9 kg

Material and Construction

• Number of leg extensions: 2

• Material: Wood

• Tripod pad type: Rubber foot

Special Features

• Tripod head included in contents: No

General Information

• Weight: 2.9 kg

• Series: Report
