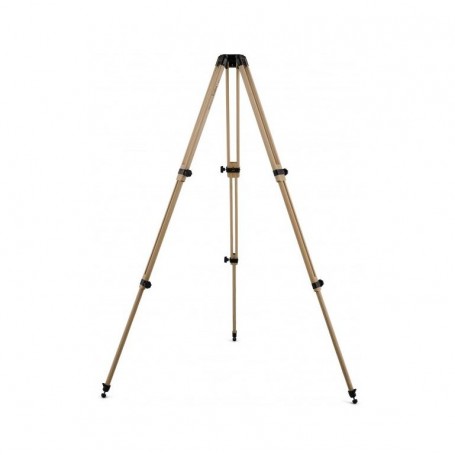

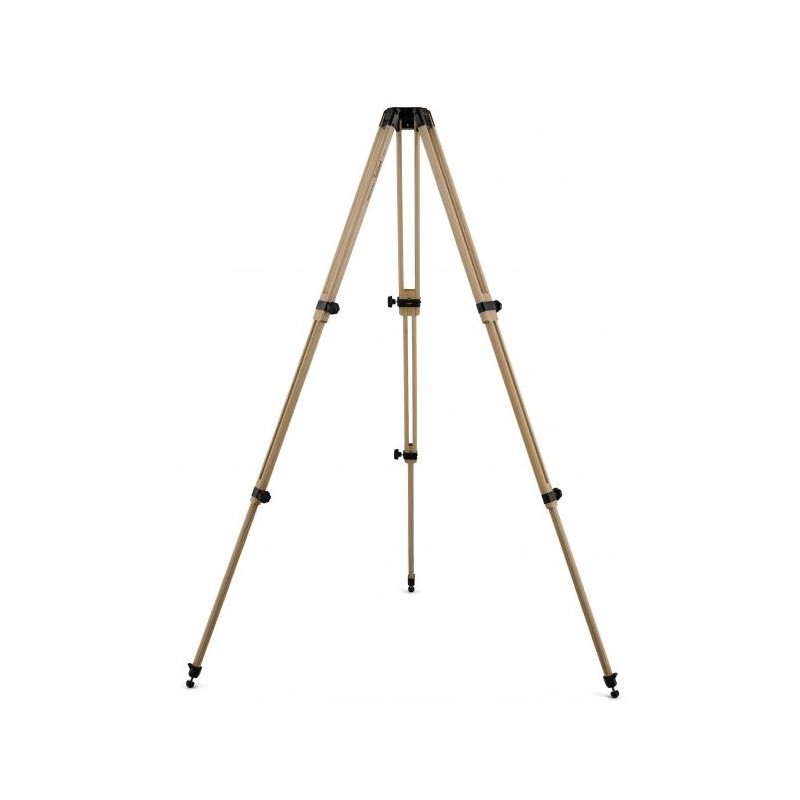

Berlebach Wooden tripod model 943 (8117)

The Modular Report Tripod System is a professional and adaptable tripod designed for photography and videography. Its lightweight magnesium mounting head serves as the base for ten interchangeable module inserts, allowing users to customize the tripod for various applications. The module inserts can be replaced at any time using the special wrench included in the delivery. The cone fixation ensures a secure, positive-locking, and clearance-free connection between components, providing excellent stability during use.

Thanks to the advanced stop system, users can set angles of spread at approximately 20°, 40°, 60°, 80°, and 100° using a wing catch. This system guarantees that the tripod maintains its specified load capacity even when the legs are fully inclined.

This model comes with Module Insert 4, which features a center column measuring 50 cm in length and 25 mm in diameter, made of precision-drawn light-metal tubing, along with a leveling ball. The center column also includes a rotating panorama plate, enabling the leveling ball to tilt by 30° in all directions. The aluminum support plate has a diameter of 68 mm and is equipped with a fixed fastening screw (size selectable) and three locking screws to secure the mounted system against unintentional loosening. A built-in spirit level ensures quick and precise adjustments.

For near-ground-level work, an extra-short center column (10 cm) can be used. The specified maximum height applies when the 50 cm center column is fully extended.

Specifications

Capacity

• Type of build: Tripod

• Maximum tripod height: 211 cm

• Load capacity: 8 kg

• Carrying length: 79 cm

Material and Construction

• Type: Camera and video tripod

• Material: Wood

• Number of leg extensions: 2

• Leg extension adjustment: Twist lock

• Tripod pad type: Rubber foot (synthetic material)

Special Features

• Number of levels: 1

• Single-handed operation: Yes

• Central column included: Yes

• Tripod head included in contents: No

General Information

• Weight: 3.2 kg

• Series: Report

• Color: Nature
