Berlebach 3-way-panheads 3D-Super Special 1/4 (8192)

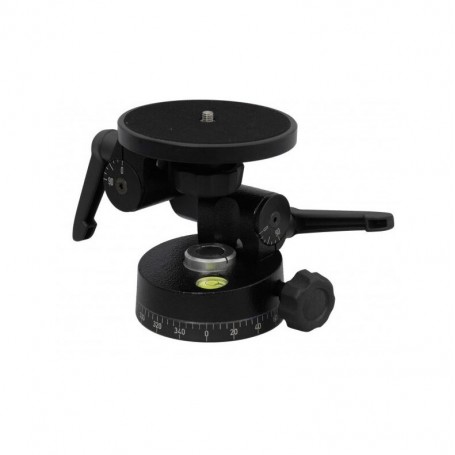

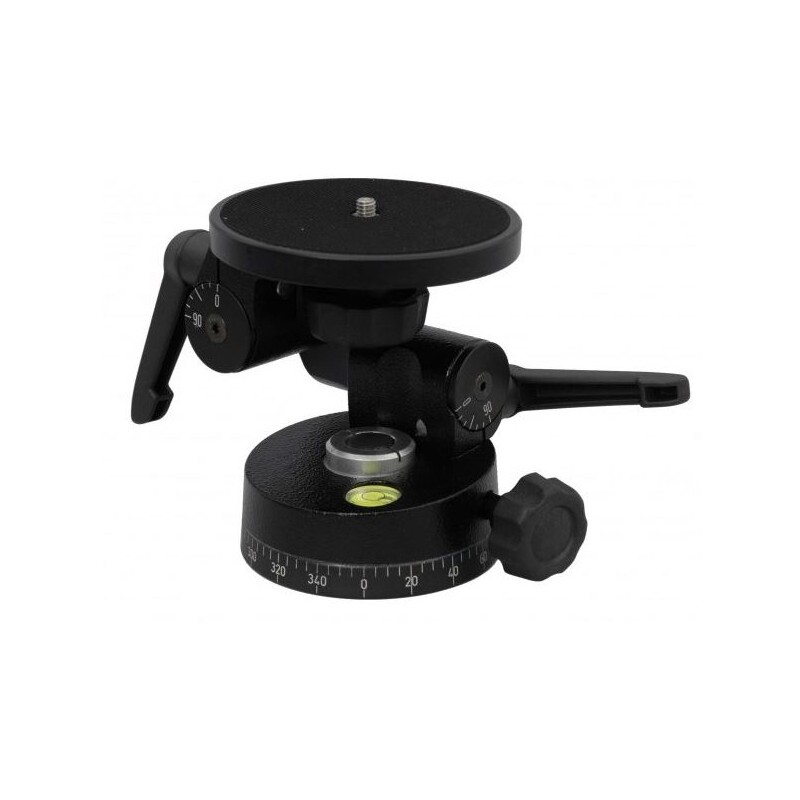

This high-precision tripod head is designed for 3-dimensional pan/tilt operation, offering exceptional control and versatility. The all-round swivel arm allows operation from the front, rear, and both sides, making it suitable for both right- and left-handed users. Each adjustment plane—horizontal, vertical, and diagonal—can be released and locked individually for precise positioning.

437.55 $
Tax included

355.73 $ net price (non-EU countries)

Anatolii Livashevskyi
Product Manager
Українська / Polski
+48721808900
+48721808900
Telegram +48721808900
[email protected]

Description

This high-precision tripod head is designed for 3-dimensional pan/tilt operation, offering exceptional control and versatility. The all-round swivel arm allows operation from the front, rear, and both sides, making it suitable for both right- and left-handed users. Each adjustment plane—horizontal, vertical, and diagonal—can be released and locked individually for precise positioning. With a sturdy camera support plate and a load capacity of 12 kg, this tripod head ensures stability and reliability for professional photography and videography.



Key Features:

  • Camera Support Plate Dimensions: 105 x 80 mm

  • Camera Mount Thread: 1/4" (optional 3/8")

  • Base Thread: 3/8"

  • Load Capacity: 12 kg

  • Weight: 1.35 kg (2.98 lb)





Specifications:

Capacity:

  • Type: 3-way panheads

  • Load Capacity: 12 kg

Thread Information:

  • Thread for Camera Recording: 1/4

  • Connector Thread on Tripod Head: 3/8

Movement Range:

  • Inclination Range: -40° to +90°

  • Bending Range: 360°

Features and Adjustments:

  • Number of Levels: 1

  • Tilt Lock: Yes

  • Bending Clamp: Yes

  • Single-handed Operation: Not included

  • Quick-release Plate: Not included

  • Panorama Scale: Yes

General Information:

  • Weight: 1.2 kg

  • Series: UNI
