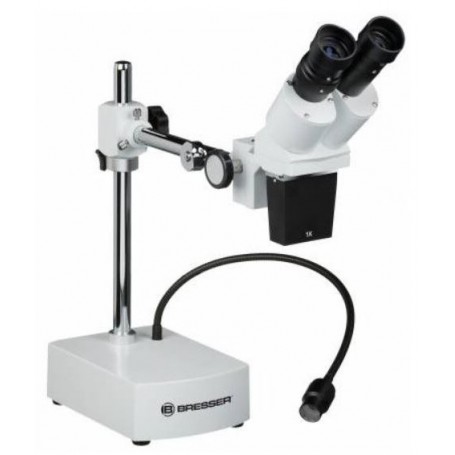

Bresser stereo microscope Biorit ICD-CS 5x-20x LED (64731)

The BRESSER Biorit ICD CS stereo microscope is a high-quality tool designed for various applications, including quality control and precision work such as soldering SMD components. Its large swivel range and impressive working distance of 230 mm make it suitable for handling larger objects. The swivel arm allows for a clear workspace under the microscope head, while the interchangeable lenses (0.5x, 1.0x, and 2.0x) provide flexibility in magnification and working distances. The gooseneck LED illumination ensures optimal lighting for detailed observations, making this microscope ideal for professional and hobbyist use.

Properties

• Stereo microscope with a large swivel range and long working distance

• LED lighting powered by mains operation

• Working distance with the 1.0x lens: Approx. 230 mm

• Swivel arm length: 210 mm

• Maximum object height: 70 mm

Scope of Delivery

• Stereo microscope

• Interchangeable lenses: 0.5x, 1.0x, and 2.0x

• Dust cover

• Pair of rubber eyecups

• Mains cable

Specifications

Optics

• Lighting: Incident light with LED lamp

• Magnification: 5x / 10x / 20x

• Eyepiece: 10x wide-angle eyepiece

• Number of Objectives: 1 (1x)

Power Supply

• Powered via mains plug

Mechanics

• Type of Build: Binocular design

• Working Distance: 230 mm (with the 1.0x lens)

General Information

• Series: Biorit ICD CS

• Dimensions (L x W x H): 450 mm x 130 mm x 490 mm

• Weight: 6600 g

• Color: White

Field of Application

• Suitable for industrial use, hobbies, and professional tasks such as metallurgy, mineralogy, odontotechnics, and maker projects

The BRESSER Biorit ICD CS is a reliable and versatile microscope that combines flexibility, precision, and durability. Its interchangeable lenses and adjustable working distances make it an excellent choice for detailed work in professional or hobbyist settings.
