Bresser Microscope Erudit Basic, mono, 40x-400x (52986)

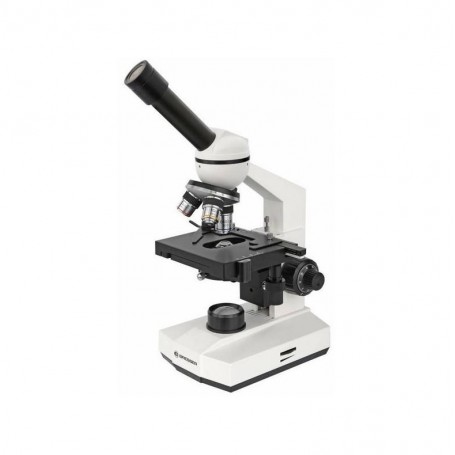

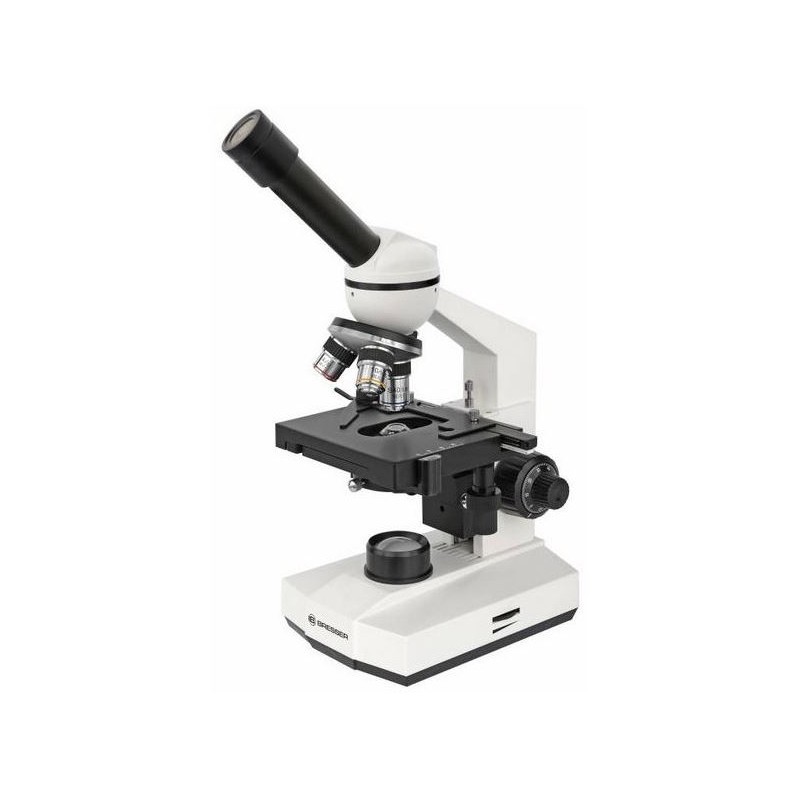

The BRESSER Erudit Basic Mono is a reliable and portable biological microscope, perfect for use in schools, hobbies, or fieldwork. Its high-quality optics and battery-powered LED lighting allow it to be used anywhere, making it ideal for both indoor and outdoor applications. This microscope is suitable for examining a wide range of subjects, including thin sections, pond life, blood smears, and pet or livestock parasites (e.g., coccidia, helminths, skin and fur parasites). With three magnifications (40x, 100x, 400x), it provides clear resolution without the need for immersion oil. The achromatic DIN objectives ensure sharp images with excellent detail, while the spring-loaded 40x objective protects specimens from damage. The included sturdy carry case and smartphone holder add convenience for transport and documentation.

Features

• Biological microscope with transmitted light

• Application: Biology and education

• Battery-powered LED lighting for mobile use

• Coarse and fine coaxial focusing controls

• Coaxial mechanical stage with vernier scale

• Adjustable Abbe condenser with diaphragm and filter holder

• Comfortable eyepiece tube, 360° rotatable

• Sturdy carry case for transport and storage

Scope of Delivery

• Microscope body with LED lighting

• WF 10x eyepiece (extra wide-field)

• Achromatic DIN objectives: 4x, 10x, 40x (spring-loaded)

• Adjustable Abbe condenser N.A. 1.25 with diaphragm and filter holder

• Smartphone holder for image and video documentation

• Carry case

• Box with prepared slides, empty slides, and cover glasses

Specifications

Optics

• Lighting: Transmitted light with LED lamp (6V/20W, continuously adjustable)

• Magnification Levels: 40x, 100x, 400x

• Image Scale: 4x, 10x, 40x

• Eyepiece: Extra wide-field eyepiece (10x)

• Condenser: Height-adjustable Abbe condenser with filter holder

Power Supply

• Operates via rechargeable battery or mains plug

Mechanics

• Specimen Stage: Cross table with vernier scale (coaxial mechanical stage)

• Viewing Posture: 30° oblique viewing with a 360° rotating head

• Focusing: Coarse and fine focusing (coaxial controls)

• Type of Build: Monocular

Special Features

• Rechargeable battery operation supported for mobile use

• Filter holder and luminous field diaphragm included

• Dust cover bag included

General Information

• Color: Beige-black finish

• Series: Erudit Basic Mono

• Dimensions (L x W x H): 225 mm x 345 mm x 175 mm

• Weight: 2400 g

Suitability

• Suitable for beginners, advanced users, hobbyists, educators, and kids (ages 12+)

The BRESSER Erudit Basic Mono is an excellent choice for exploring the microscopic world. Its portability, ease of use, and robust features make it ideal for educational purposes as well as hobbyist exploration.
