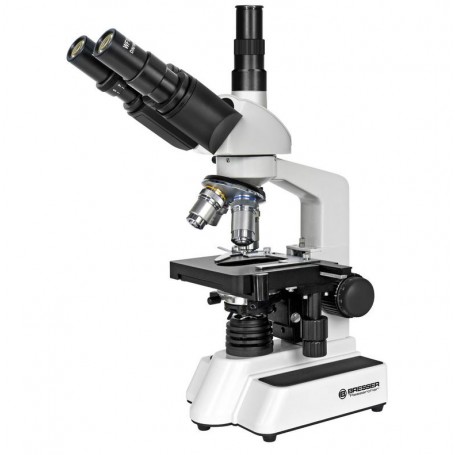

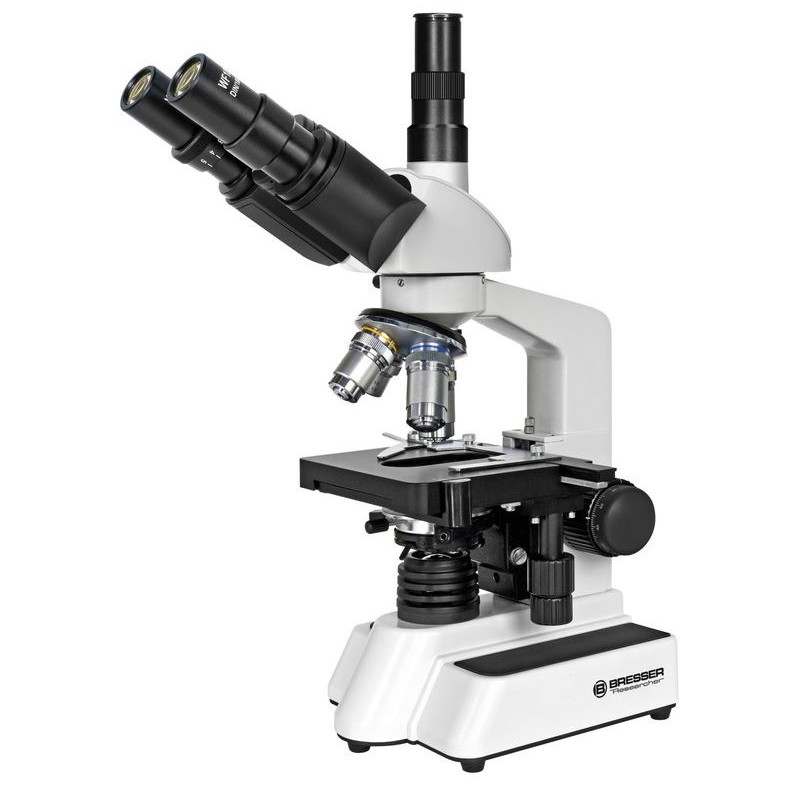

Bresser Microscope Researcher Trino (6145)

The Trino Researcher is a professional-grade biological microscope designed to deliver exceptional performance at an affordable price. Constructed with a durable metal body and equipped with DIN eyepieces and objectives, it meets the demands of advanced users in both optical and mechanical quality. The microscope features a cross table for precise specimen positioning and a focuser with coarse and fine adjustments for sharp imaging. Its trinocular head allows simultaneous binocular observation and photography or the use of a PC eyepiece, making it ideal for imaging solutions, teaching, and research applications.

Features

• Type: Biological microscope

• View: Trinocular

• Application Range: Biology, Education, Teaching, Imaging Solutions, Botany

• Illumination: Halogen lighting

• Level: Intermediate and Expert users

• Double-lens condenser with iris diaphragm for optimal lighting control

• Includes mechanical stage for accurate specimen positioning

• Adjustable eye relief for comfortable viewing

Included Accessories

• 4 DIN objectives: 4x, 10x, 40x, 100x (oil immersion)

• 2 wide-angle eyepieces (10x)

• Mechanical stage with vernier scale

• Abbe condenser (N.A. 1.25, height adjustable, centerable)

• Trinocular head

Optical Specifications

• Optical Design: Biological microscope with DIN system (160 mm)

• Magnification Levels: 40x, 100x, 400x, 1000x

• Image Scale: 4x (N.A. 0.10), 10x (N.A. 0.25), 40x (N.A. 0.65), 100x oil immersion (N.A. 1.25)

Electronics and Hardware

• Lighting: Transmitted light with LED lamp

Mechanical Features

• Specimen Stage: Cross table with vernier scale for precise positioning

• Type of Build: Trinocular design with a 30° oblique viewing angle and a 360° rotating head

• Focusing: Coarse and fine focusing controls

Special Features

• Filter holder included for advanced contrast control

• Luminous field diaphragm included

General Information

• Color: Black-white finish

• Series: Researcher Trino Microscope

• Dimensions (L x W x H): 280 mm x 175 mm x 360 mm

• Weight: 3.8 kg

Suitability

• Suitable for advanced users in education, research, and imaging applications (ages 12+)

The Trino Researcher is an excellent choice for advanced users seeking a reliable and versatile microscope for biological studies or imaging tasks. Its robust construction, high-quality optics, and trinocular functionality make it an outstanding tool for both educational and professional environments.
