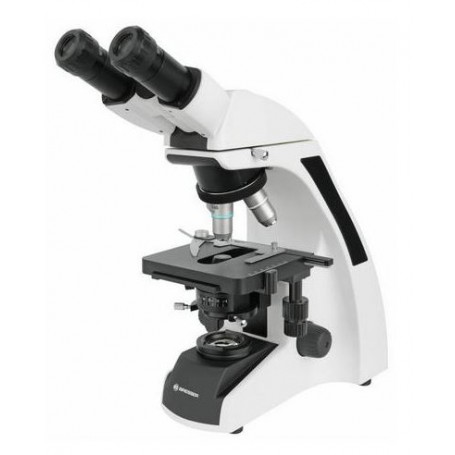

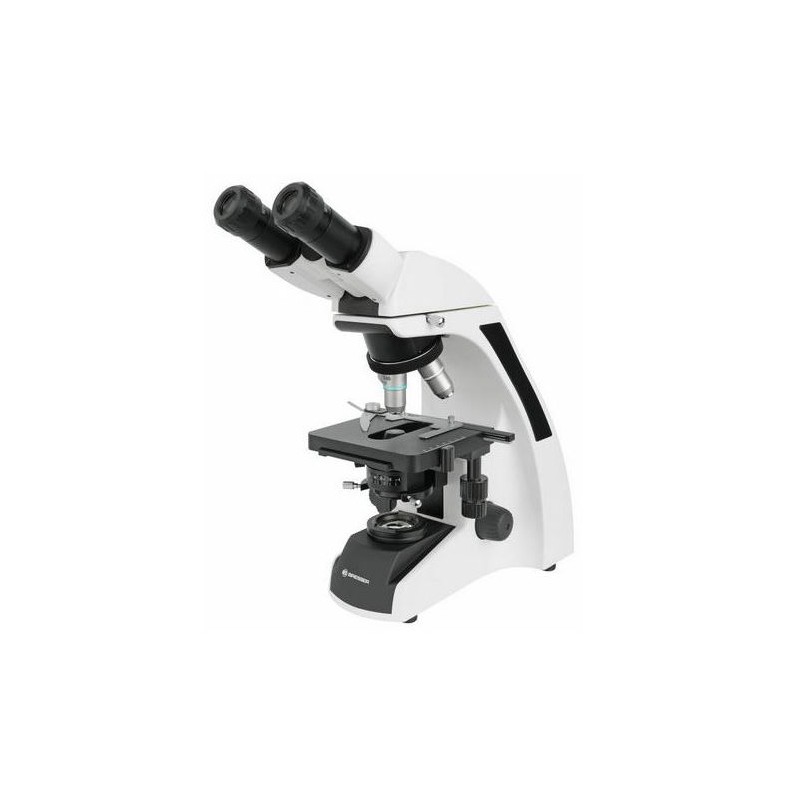

Bresser Microscope Science TFM-201, bino, 40x - 1000x (52989)

The BRESSER Science TFM-201 is a premium binocular microscope designed for advanced users and professionals. It features semi-plan achromatic objectives and WF 10x eyepieces with a wide 20 mm field of view. The interpupillary distance is adjustable from 55 mm to 75 mm, and both eyepieces allow diopter adjustments for a customized viewing experience. The dimmable LED illumination provides bright and durable lighting, which is also suitable for darkfield microscopy (optional accessories required). The microscope can be powered via USB cable or mains adapter, offering versatility for different environments.

This model includes Köhler illumination, which is adjustable using the built-in luminous-field diaphragm and the vertically and horizontally adjustable Abbe condenser (N.A. 1.25, with an iris diaphragm). The condenser is labeled with magnifications for precise iris diaphragm adjustments. Coaxial pinion drives for the stage and focus ensure ergonomic operation, making it easy to achieve sharp and accurate results.

Scope of Delivery

• Microscope with integrated LED illumination

• Semi-plan objectives: 4x, 10x, 40x, 100x (oil immersion)

• Two WF 10x eyepieces (Ø 30 mm)

• Immersion oil

• Dust cover

• Mains adapter

• USB power cable

• Manual

Specifications

Optics

• Eyepiece: WF 10x / 20 mm (wide-angle eyepiece)

• Magnification Levels: 40x, 100x, 400x, 1000x

• Lens Type: Semi-plan achromatic objectives (4x, 10x, 40x, 100x oil immersion)

• Condenser: Abbe condenser (N.A. 1.25, height adjustable, centerable)

Lighting

• Type: Transmitted light with dimmable LED lamp

Power Supply

• Operates via mains adapter or USB power cable

Mechanics

• Specimen Stage: Cross table with vernier scale for precise positioning

• Type of Build: Binocular design with a 30° oblique viewing angle and a 360° rotating head

• Focusing: Coarse and fine coaxial focusing controls

Special Features

• Dust cover included for safe storage

General Information

• Color: Black-white finish

• Series: Science TFM-201

• Weight: 8800 g

Suitability

• Suitable for advanced users and professionals in medicine, education, secondary schools, and high schools (ages 16+)

The BRESSER Science TFM-201 is an exceptional choice for detailed microscopy work in educational and professional settings. Its high-quality optics, ergonomic features, and versatile power options make it a reliable tool for precise observations.
